Grinding Noise in Your F-150's Front End? Check the Integrated Wheel Ends

If you own a Ford F-150, few things are as disturbing as a sudden, metallic grinding noise coming from the front end. It often sounds like a buzz saw or a handful of marbles in a blender, usually occurring while you’re accelerating. Before you panic about a total transmission failure, take a deep breath. While the noise can be really unsettling, the cause may not always be as dire as it sounds.

Common Culprits And Misdiagnosis

While the F-150 is a workhorse, it isn't immune to wear. When drivers hear that tell-tale grinding, they often suspect several components like:

However, this issue is frequently misdiagnosed. Many owners rush to replace expensive parts, only to find the noise persists. That’s because the issue is often the Integrated Wheel End (IWE) system. This setup relies on vacuum pressure to operate and is often overlooked during diagnosis.

How The IWE System Works

In most 4WD F-150 models from 2004 on, Ford uses vacuum-operated IWE actuators to engage and disengage the front hubs.

  • In 2WD: The engine creates a vacuum that pulls the IWE gear away from the wheel hub, letting the wheels spin freely to save fuel.
  • In 4WD: The vacuum is released, and a spring pushes the gear into engagement with the hub.

The grinding occurs during a partial vacuum loss. If the vacuum isn't strong enough to hold the gear away, the teeth fret or lightly strike the hub while you're driving in 2WD. It is essentially the sound of your truck trying to shift into 4WD while you’re cruising.

Repairing The System: DIY Job Or Specialist?

Fixing an IWE issue can be a DIY project, but the difficulty depends on which component has failed.

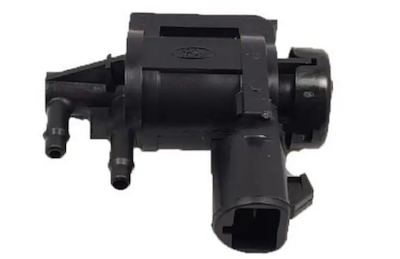

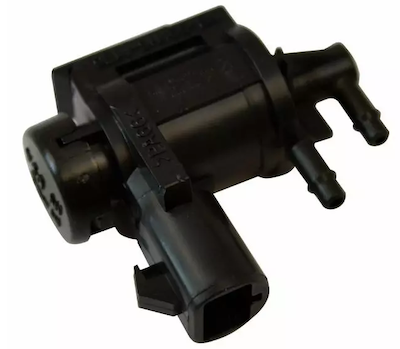

The IWE Solenoid And Check Valve (Easy Fix)

The solenoid is the brain of the vacuum system, usually mounted on the firewall. If your grinding is caused by a cracked plastic housing or a faulty electrical signal, this is your solution.

  • Skill Level: Beginner. No complex mechanical knowledge is required.
  • Tools: Basic. Sockets and pliers for vacuum hoses will do the job.

The IWE Actuators (Intermediate Fix)

If the seals inside the hub itself have failed, you must replace the actuators. This is a much more involved mechanical job, but may still be done at home with the right tools and a good bit of mechanical knowledge.

  • Skill Level: Intermediate. You must be comfortable working around, and have a good working knowledge of suspension systems.
  • Tools: Heavy-duty jack, full socket set (8mm to 21mm), a torque wrench, and ideally a vacuum pump to compress the new actuator during installation.
  • The Process: This requires removing the wheel, brake caliper, and rotor, and disconnecting the upper control arm ball joint to access the hub.

If you aren't comfortable pulling apart your front suspension or don't own a torque wrench, the actuator replacement is best left to a specialist. However, the solenoid and check valve are so simple to replace that almost any owner can tackle them in the driveway to see if the noise disappears. As always, if you don't want to take on a particular repair, you can take advantage of savings by ordering your parts online and taking the components to your trusted mechanic for installation.

Always Use OEM Replacement Parts

Most importantly, when you do repairs on sensitive vacuum-controlled systems like this one, use only OEM parts. They're specially constructed and calibrated to fit and function in your exact Ford model just as the factory intended. No modifying, no error codes. We're proud to be one of the largest Ford parts departments in the U.S., and we have decades of experience selling wholesale Ford, Lincoln, and Mercury parts. If you need to replace your Ford F-150’s solenoid or actuator, make sure you use OEM parts.

OEM parts are also fully backed by Ford's replacement parts warranty, and you can use our free VIN decoder to be certain you order the right parts the first time. Contact our knowledgeable staff if you need any further information, and order today!
