All You Need To Know About Intake Manifolds

The intake manifold feeds air to your engine's cylinders. If you're looking for peak performance and an exact fit, it's best to stick with an OEM Ford manifold if you ever need to replace one. If you have more questions about your Ford's intake manifold, read on!

What Is An Intake Manifold?

An intake manifold is the component in an engine that distributes the air-fuel mixture to each cylinder in the engine. It ensures that each cylinder gets the right amount of mixture for efficient combustion. This affects the engine's performance, fuel efficiency, and emissions levels.

A well-designed intake manifold ensures that each cylinder receives an equal amount of the air-fuel mixture. This leads to smoother engine operation and more power.

How Has The Intake Manifold Evolved?

In the early days, intake manifolds were simple cast metal pieces designed to route air and fuel from a carburetor to the cylinders. As engines became more advanced, so did the design of intake manifolds. The introduction of technologies like fuel injection brought about significant changes to manifold design.

Many modern Fords have variable valve and cam timing, direct injection, and cylinder deactivation. These features all need far more complex intake manifolds. Modern intakes are now made from aluminum, steel, and composite materials.

Types Of Intake Manifolds In Ford Passenger Vehicles

• Single-Plane
• Dual-Plane
• Variable

Single-Plane Intake Manifolds: These are found in older vehicles or ones built for a specific purpose, such as racing. The intake runners of a single-plane intake manifold are all the same length to distribute the right amount of air or fuel mixture to each cylinder.

The intake runners are either narrow and longer for better low-end torque or wider and shorter for more top-end power. They can only perform optimally in a narrow engine operating range.

Dual-Plane Intake Manifolds: This option is more common in most passenger vehicles. Dual-plane manifolds have two separate sets of runners. This design allows the runners to be longer, which causes the air to resonate within the runner, which in turn helps to fill each cylinder with air more effectively. This improves low end torque. Having separate sets of runners also reduces interference due to intake pulses from adjacent cylinders. This improves mid range power.

The manifold can be designed to offer good low to mid-range power, making it ideal for regular driving conditions.

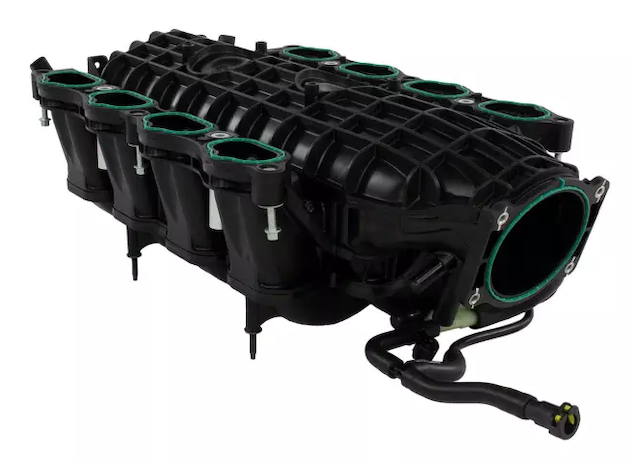

Variable Intake Manifolds: Many modern Fords use variable intake manifolds. This type of manifold uses flaps or valves to lengthen or shorten the airflow path based on engine speed and load. This allows the engine to optimize power and efficiency at different engine speeds and loads. It is the best solution for a good balance between performance and fuel economy.

Can You Drive With A Broken Intake Manifold?

If the intake is cracked, blocked, or broken, your engine won’t get the correct air/fuel mixture. It will perform poorly, have a rough idle, and poor fuel economy. In extreme cases, the car won’t run at all.

Aside from a visual inspection, you may hear a loud sucking sound from under the hood, and your engine warning light may also illuminate. It is best to replace a broken intake manifold before it causes further damage to your vehicle.

How Much Does A Ford Intake Manifold Cost?

Each Ford model has a specially designed intake manifold to suit the engine. The engine size, cylinder count, and complexity all influence the final price.

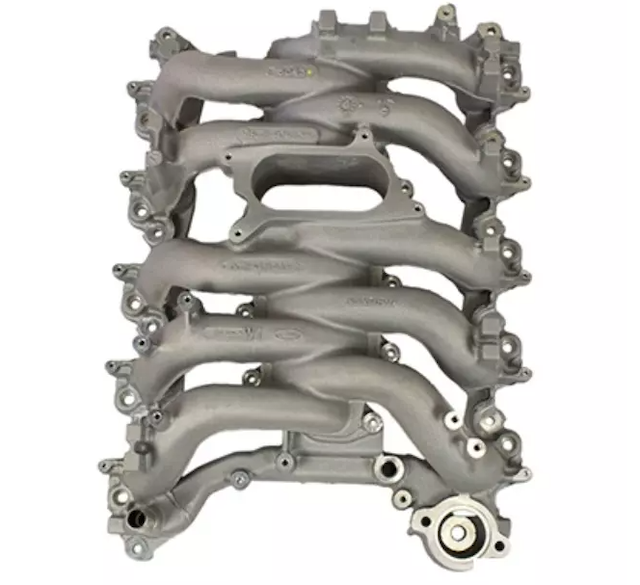

Prices range from around $55 for small four-cylinder cars like the Ford Escape to over $2,000 for the Ford E-350 Super Duty. These are some of our more popular OEM intake manifolds, ranging from $75 to $450:

Can I Replace An Intake Manifold Myself?

Yes. You can replace a broken intake manifold yourself. You will need a few basic tools, replacement gaskets, and the appropriate OEM intake manifold, and it will take around 2-3 hours.

Most intake manifolds are mounted to the top or side of an engine block, so they provide good accessibility. All our OEM intake manifolds are guaranteed to fit and work perfectly, saving you the hassle of forcing a generic aftermarket part to fit.

Where Should I Buy A Replacement Intake Manifold?

If your intake manifold is damaged and needs replacing, Blue Springs Ford Parts is your one-stop shop for a replacement OEM part that is:

• Backed By Ford's 12-Month/ 12,000-Mile Warranty
• Designed To Optimize Fuel Economy And Performance
• Built For Turbo, EcoBoost, Or Diesel - We offer Genuine Ford Manifolds For All Engine Types
• Made To Improve Throttle Response For Better Acceleration
• Factory Tested And Approved To Ensure Quality And Performance

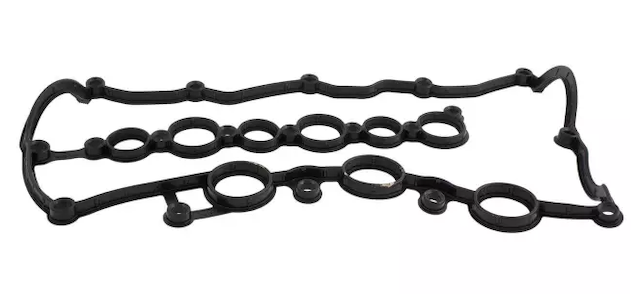

Use our VIN decoder to ensure you get the right component the first time. And don’t forget to order replacement gaskets, too.

We have a 30-year history of selling wholesale Ford, Lincoln, and Mercury parts. Being one of the largest Ford parts departments in the US means we stock just about any part you might need. Ford’s replacement parts warranty backs every OEM part. Contact our sales team today to get the perfect OEM part at the best price.
