Rear Suspension/Rear Suspension for 2017 Ford Fusion

Select Rear Suspension Part

2017 Ford Fusion

Change vehicle

Rear Suspension/Rear Suspension for 2017 Ford Fusion #1
No. Part # Part # / Description List Price Price
N/A F2GZ-18B008-B F2GZ-18B008-B / Control Module

CCD CONTROL MODULE; MKZ

$122.25 $89.49
N/A HP5Z-1104-A HP5Z-1104-A / Hub & Bearing Assembly

MKZ; FWD

$82.58 $55.41
N/A HP5Z-1104-B HP5Z-1104-B / Hub Assembly

Hub & Bearing Assembly

FUSION; AWD

$80.76 $54.19
1 HG9Z5B759B HG9Z5B759B / Knuckle

FUSION; LEFT

- -
1 HG9Z5B758B HG9Z5B758B / Knuckle

FUSION; RIGHT

- -
2 DG9Z-5A972-C DG9Z-5A972-C / Trailing Arm

Link

FUSION; W/ HYBRID

$23.55 $15.80
2 DG9Z-5A972-B DG9Z-5A972-B / Link Rod

Link

MKZ; W/ O HYBRID

$28.29 $18.98
3 DG9Z-5A972-C DG9Z-5A972-C / Trailing Arm

FUSION

$23.55 $15.80
4 EG9Z-18125-D EG9Z-18125-D / Shock Absorber

MKZ; RIGHT

$302.64 $203.07
4 HG9Z-18125-F HG9Z-18125-F / Shock Absorber

FUSION; 2.0L; W/ O HYBRID; W/ O 19 WHEELS; AWD

$71.91 $48.25
4 HG9Z-18125-M HG9Z-18125-M / Shock Absorber

FUSION; 2.5L; W/ HIGH RIDE

$71.91 $48.25
4 HG9Z-18125-P HG9Z-18125-P / Shock Absorber

FUSION; 1.5L; W/ O HIGH RIDE

$75.25 $50.50
4 HG9Z-18125-H HG9Z-18125-H / Shock Absorber

FUSION; 2.0L; W/ O HYBRID; W/ O 19 WHEELS; FWD

$71.91 $48.25
4 HG9Z-18125-E HG9Z-18125-E / Shock Absorber

FUSION; 2.7L; LEFT

$248.87 $166.99
4 HG9Z-18125-L HG9Z-18125-L / Shock Absorber

FUSION; 2.5L; W/ O HIGH RIDE

$71.91 $48.25
4 HG9Z-18125-N HG9Z-18125-N / Shock Absorber

FUSION; 2.0L; W/ HYBRID

$71.91 $48.25
4 EG9Z-18125-C EG9Z-18125-C / Shock Absorber

MKZ; LEFT

$302.64 $203.07
4 HG9Z-18125-C HG9Z-18125-C / Shock Absorber

FUSION; 2.7L; RIGHT

$248.87 $166.99
4 HG9Z-18125-K HG9Z-18125-K / Shock Absorber

FUSION; 1.5L; W/ HIGH RIDE

$71.91 $48.25
5 DG9Z-18159-A DG9Z-18159-A / Dust Shield

FUSION

$11.03 $8.08
5 DG9Z-18089-A DG9Z-18089-A / Dust Shield

MKZ

$25.82 $18.90
6 DG9Z-5K570-A DG9Z-5K570-A / Bumper

MKZ

$12.23 $8.95
6 DG9Z-5K570-B DG9Z-5K570-B / Bumper

FUSION

$16.38 $11.99
7 DG9Z-18A161-C DG9Z-18A161-C / Upper Bracket

Shock Mount

FUSION; W/ O 2.7L

$30.18 $20.25
7 HG9Z-18A161-A HG9Z-18A161-A / Shock Mount

MKZ

$35.25 $23.66
8 DG9Z-5560-H DG9Z-5560-H / Coil Spring

MKZ; W/ HYBRID

$44.53 $32.60
8 DG9Z-5560-R DG9Z-5560-R / Coil Spring

FUSION; W/ O PLUG-IN MODEL HYBRID; CODE DG9C-5560-FNB

$78.63 $57.56
8 DG9Z-5560-D DG9Z-5560-D / Coil Spring

MKZ; W/ O HYBRID; AWD; CODE DG9C-5560-DNC

$43.10 $31.55
8 HG9Z-5560-D HG9Z-5560-D / Spring - Rear

Coil Spring

FUSION; W/ PLUG-IN MODEL HYBRID

$45.92 $33.61
8 DG9Z-5560-G DG9Z-5560-G / Coil Spring

FUSION; W/ O PLUG-IN MODEL HYBRID; CODE DG9C-5560-GNB

$47.15 $34.51
8 DG9Z-5560-S DG9Z-5560-S / Coil Spring

FUSION; W/ O PLUG-IN MODEL HYBRID; CODE DG9C-5560-ANC, RNC

$86.35 $63.21
8 DG9Z-5560-C DG9Z-5560-C / Coil Spring

MKZ; W/ O HYBRID; FWD; CODE DG9C-5560-CNC

$43.92 $32.15
8 DG9Z-5560-B DG9Z-5560-B / Coil Spring

MKZ; W/ O HYBRID; FWD; CODE DG9C-5560-BNC

$43.92 $32.15
9 DG9Z-5586-B DG9Z-5586-B / Upper Spring Insulator

FUSION; W/ HYBRID; W/ PLUG-IN MODEL

$16.07 $11.76
9 DG9Z-5586-A DG9Z-5586-A / Upper Seat

Upper Spring Insulator

FUSION; W/ HYBRID; W/ O PLUG-IN MODEL

$5.72 $4.18
10 DG9Z-8321-D DG9Z-8321-D / Lower Seat

Lower Spring Insulator

MKZ

$5.67 $4.15
11 DG9Z-5500-K DG9Z-5500-K / Upper Control Arm

MKZ; AWD; RIGHT

$42.68 $31.24
11 DG9Z-5500-L DG9Z-5500-L / Upper Control Arm

FUSION; AWD; LEFT

$42.85 $31.37
11 DG9Z-5500-A DG9Z-5500-A / Upper Control Arm

MKZ; FWD

$72.53 $48.67
11 GS7Z-5500-M GS7Z-5500-M / Arm Assembly - Rear Suspension

Upper Control Arm

FUSION; AWD; LEFT

$194.82 $142.61
11 GS7Z-5500-E GS7Z-5500-E / Control Arm

Upper Control Arm

FUSION; AWD; RIGHT

$149.25 $109.25
12 DG9Z-5500-C DG9Z-5500-C / Lower Control Arm

MKZ; LEFT

$316.31 $212.24
12 DG9Z-5500-B DG9Z-5500-B / Lower Control Arm

MKZ; RIGHT

$316.31 $212.24
13 HG9Z-5A772-A HG9Z-5A772-A / Stabilizer Bar

FUSION; 1.5L

$59.83 $43.80
13 DP5Z-5A772-A DP5Z-5A772-A / Stabilizer Bar

MKZ

$61.38 $44.93
13 DG9Z-5A772-B DG9Z-5A772-B / Stabilizer Bar

FUSION; 2.0L; W/ HYBRID

$59.48 $43.54
13 DG9Z5A772A DG9Z5A772A / Stabilizer Bar

FUSION; 2.0L; W/ O HYBRID

- -
14 DG9Z-5493-G DG9Z-5493-G / Stabilizer Bar Bushing

Bushing

FUSION; 1.5L

$6.27 $4.59
14 F2GZ-5493-A F2GZ-5493-A / Bushing

MKZ

$6.78 $4.97
14 DP5Z-5493-C DP5Z-5493-C / Stabilizer Bar Bushing

Bushing

FUSION; 2.7L

$6.27 $4.59
14 F2GZ-5493-B F2GZ-5493-B / Bushing

FUSION; 2.0L; W/ O HYBRID

$5.82 $4.26
15 DG9Z-5B484-A DG9Z-5B484-A / Bracket

Mounting Bracket

FUSION

$5.75 $4.21
16 DG9Z-5C486-A DG9Z-5C486-A / Stabilizer Link

Link

MKZ

$14.53 $9.75
17 HG9Z-5035-A HG9Z-5035-A / Cross-Member

MKZ; FWD

$964.90 $706.31
17 HG9Z-5035-B HG9Z-5035-B / Cross-Member

MKZ; AWD

$1,026.48 $751.39
17 HG9Z5035C HG9Z5035C / Cross-Member

FUSION; FWD

- -
17 HG9Z5035D HG9Z5035D / Cross-Member

FUSION; AWD

- -
No. Part # Part # / Description List Price Price
1 HG9Z-5035-B HG9Z-5035-B / Cross-Member

Suspension Cross-member

W/ O SPORT

$1,026.48 $751.39
3 -W716077-S439 -W716077-S439 / Suspension Cross-Member Bolt

Suspension Cross-member Rear Bolt

W/ O SPORT

$5.84 $3.56
4 E1GZ-5077-A E1GZ-5077-A / Suspension Cross-Member Support Bracket

Suspension Cross-member Support Bracket, RIGHT

W/ O SPORT

$62.95 $46.08
6 -W713284-S439 -W713284-S439 / Suspension Cross-Member Screw

Suspension Cross-member Screw, LEFT

W/ O SPORT

$2.00 $1.22
7 DG9Z-5B759-B DG9Z-5B759-B / Knuckle

Knuckle, LEFT

W/ O SPORT, FROM 02/ 17/ 2014

$307.60 $225.16
8 DG9Z-5500-K DG9Z-5500-K / Upper Control Arm

Upper Control Arm, RIGHT

W/ O SPORT

$42.68 $31.24
8 DG9Z-5500-L DG9Z-5500-L / Upper Control Arm

Upper Control Arm, LEFT

W/ O SPORT

$42.85 $31.37
9 -W716189-S439 -W716189-S439 / Upper Control Arm Upper Bolt

Upper Control Arm Upper Bolt, LEFT

W/ O SPORT

$3.19 $1.94
10 -W520215-S440 -W520215-S440 / Outer Tie Rod Lock Nut

Upper Control Arm Nut, RIGHT

W/ O SPORT

$1.49 $0.90
11 -W706196-S439 -W706196-S439 / Control Arm Mount Bolt

Upper Control Arm Lower Bolt, RIGHT

W/ O SPORT

$4.24 $2.59
12 -W520214-S442 -W520214-S442 / Control Arm Nut

Upper Control Arm Lock Nut, LEFT

W/ O SPORT

$2.12 $1.29
13 DG9Z-5K898-A DG9Z-5K898-A / Trailing Arm

Trailing Arm, LEFT

W/ O SPORT

$65.27 $43.80
13 DG9Z-5K898-A DG9Z-5K898-A / Trailing Arm

Trailing Arm, RIGHT

W/ O SPORT

$65.27 $43.80
14 DG9Z-5K978-A DG9Z-5K978-A / Lower Control Arm Adjust Bolt

Trailing Arm Adjust Bolt, RIGHT

W/ O SPORT

$6.62 $4.84
15 7T4Z-5K751-A 7T4Z-5K751-A / Lower Control Arm Adjust Cam

Trailing Arm Adjust Cam, RIGHT

W/ O SPORT

$9.90 $7.25
15 7T4Z-5K751-A 7T4Z-5K751-A / Lower Control Arm Adjust Cam

Trailing Arm Adjust Cam, LEFT

W/ O SPORT

$9.90 $7.25
16 -W716343-S440 -W716343-S440 / Trailing Arm Lock Nut

Trailing Arm Lock Nut, LEFT

W/ O SPORT

$2.13 $1.29
17 -W716795-S439 -W716795-S439 / Trailing Arm Mount Bolt

Trailing Arm Mount Bolt, RIGHT

W/ O SPORT

$3.19 $1.94
18 -W710436-S900 -W710436-S900 / Trailing Arm Retainer Nut

Trailing Arm Retainer Nut, LEFT

W/ O SPORT

$4.24 $2.59
21 -W717821-S439 -W717821-S439 / Lower Control Arm Bolt

Lower Control Arm Bolt, RIGHT

W/ O SPORT, M16X112

$3.19 $1.94
21 -W717821-S439 -W717821-S439 / Lower Control Arm Bolt

Lower Control Arm Bolt, LEFT

W/ O SPORT, M16X112

$3.19 $1.94
23 DG9Z-5A972-B DG9Z-5A972-B / Link Rod

Link Rod, LEFT

W/ O SPORT, FROM 02/ 17/ 2014

$28.29 $18.98
24 -W717458-S439 -W717458-S439 / Link Rod Upper Bolt

Link Rod Upper Bolt, LEFT

W/ O SPORT

$3.00 $1.83
24 -W717458-S439 -W717458-S439 / Link Rod Upper Bolt

Link Rod Upper Bolt, RIGHT

W/ O SPORT

$3.00 $1.83
25 -W715682-S900 -W715682-S900 / Link Rod Nut

Link Rod Nut, RIGHT

W/ O SPORT

$2.54 $1.55
25 -W715682-S900 -W715682-S900 / Link Rod Nut

Link Rod Nut, LEFT

W/ O SPORT

$2.54 $1.55
26 -W716342-S439 -W716342-S439 / Link Rod Lower Bolt

Link Rod Lower Bolt, LEFT

W/ O SPORT

$3.19 $1.94

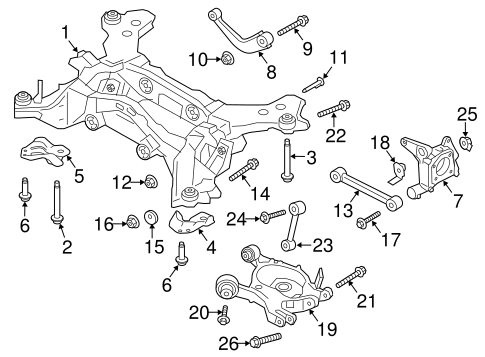

No. Part # Part # / Description List Price Price
1 HG9Z-5035-A HG9Z-5035-A / Cross-Member

Suspension Cross-member

W/ O AWD

$964.90 $706.31
2 -W716077-S439 -W716077-S439 / Suspension Cross-Member Bolt

Suspension Cross-member Front Bolt

W/ O AWD

$5.84 $3.56
5 E1GZ-5084-A E1GZ-5084-A / Suspension Cross-Member Support Bracket

Suspension Cross-member Support Bracket, LEFT

W/ O AWD

$62.95 $46.08
6 -W713284-S439 -W713284-S439 / Suspension Cross-Member Screw

Suspension Cross-member Screw, RIGHT

W/ O AWD

$2.00 $1.22
7 DG9Z-5B758-B DG9Z-5B758-B / Knuckle

Knuckle, RIGHT

W/ O AWD, FROM 02/ 17/ 2014

$307.22 $224.88
8 DG9Z-5500-A DG9Z-5500-A / Upper Control Arm

Upper Control Arm, LEFT

W/ O AWD

$72.53 $48.67
8 DG9Z-5500-A DG9Z-5500-A / Upper Control Arm

Upper Control Arm, RIGHT

W/ O AWD

$72.53 $48.67
9 -W716189-S439 -W716189-S439 / Upper Control Arm Upper Bolt

Upper Control Arm Upper Bolt, RIGHT

W/ O AWD

$3.19 $1.94
10 -W520215-S440 -W520215-S440 / Outer Tie Rod Lock Nut

Upper Control Arm Nut, LEFT

W/ O AWD

$1.49 $0.90
11 -W706196-S439 -W706196-S439 / Control Arm Mount Bolt

Upper Control Arm Lower Bolt, LEFT

W/ O AWD

$4.24 $2.59
12 -W520214-S442 -W520214-S442 / Control Arm Nut

Upper Control Arm Lock Nut, RIGHT

W/ O AWD

$2.12 $1.29
14 DG9Z-5K978-A DG9Z-5K978-A / Lower Control Arm Adjust Bolt

Trailing Arm Adjust Bolt, LEFT

W/ O AWD

$6.62 $4.84
16 -W716343-S440 -W716343-S440 / Trailing Arm Lock Nut

Trailing Arm Lock Nut, RIGHT

W/ O AWD

$2.13 $1.29
17 -W716795-S439 -W716795-S439 / Trailing Arm Mount Bolt

Trailing Arm Mount Bolt, LEFT

W/ O AWD

$3.19 $1.94
18 -W710436-S900 -W710436-S900 / Trailing Arm Retainer Nut

Trailing Arm Retainer Nut, RIGHT

W/ O AWD

$4.24 $2.59
19 DG9Z-5500-C DG9Z-5500-C / Lower Control Arm

Lower Control Arm, LEFT

W/ O AWD

$316.31 $212.24
19 DG9Z-5500-B DG9Z-5500-B / Lower Control Arm

Lower Control Arm, RIGHT

W/ O AWD

$316.31 $212.24
20 -W716992-S439 -W716992-S439 / Lower Control Arm Bolt

Lower Control Arm Bolt, RIGHT

W/ O AWD, M16X97MM

$3.19 $1.94
20 -W716992-S439 -W716992-S439 / Lower Control Arm Bolt

Lower Control Arm Bolt, LEFT

W/ O AWD, M16X97MM

$3.19 $1.94
21 -W716341-S439 -W716341-S439 / Lower Control Arm Bolt

Lower Control Arm Bolt, RIGHT

W/ O AWD, M16X112

$4.25 $2.60
21 -W716341-S439 -W716341-S439 / Lower Control Arm Bolt

Lower Control Arm Bolt, LEFT

W/ O AWD, M16X112

$4.25 $2.60
22 -W717065-S439 -W717065-S439 / Lower Control Arm Mount Bolt

Lower Control Arm Bolt, RIGHT

W/ O AWD, M16X114

$4.41 $2.68
22 -W717065-S439 -W717065-S439 / Lower Control Arm Mount Bolt

Lower Control Arm Bolt, LEFT

W/ O AWD, M16X114

$4.41 $2.68
23 DG9Z-5A972-B DG9Z-5A972-B / Link Rod

Link Rod, RIGHT

W/ O AWD, FROM 02/ 17/ 2014

$28.29 $18.98
25 -W710436-S900 -W710436-S900 / Trailing Arm Retainer Nut

Link Rod Nut, RIGHT

W/ O AWD

$4.24 $2.59
25 -W710436-S900 -W710436-S900 / Trailing Arm Retainer Nut

Link Rod Nut, LEFT

W/ O AWD

$4.24 $2.59
26 -W716342-S439 -W716342-S439 / Link Rod Lower Bolt

Link Rod Lower Bolt, RIGHT

W/ O AWD

$3.19 $1.94
