Front Suspension/Suspension Components for 2017 Ford Fusion

Select Suspension Components Part

2017 Ford Fusion

Change vehicle

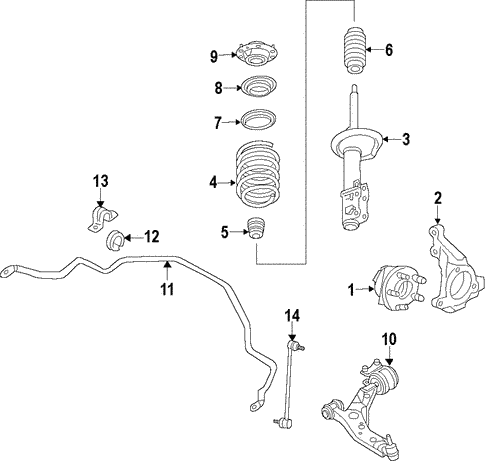

Front Suspension/Suspension Components for 2017 Ford Fusion #1
No. Part # Part # / Description List Price Price
N/A DG9Z-8321-A DG9Z-8321-A / Lower Seat

Lower Spring Insulator

FUSION

$2.92 $2.14
N/A HG9Z-5C145-A HG9Z-5C145-A / Cross-Member

FUSION; W/ 2.7L

$1,217.07 $890.89
N/A HG9Z-5C145-C HG9Z-5C145-C / Engine Cradle

Cross-member

FUSION; W/ O 2.7L

$1,025.40 $750.59
N/A HG9Z-5C145-B HG9Z-5C145-B / Cross-Member

MKZ; 2.0L

$1,165.58 $853.21
1 DG9Z-1104-S DG9Z-1104-S / Hub Assembly - Wheel

Front Hub

FUSION; W/ O 2.7L

$79.31 $53.22
1 K2GZ-1104-A K2GZ-1104-A / Hub Assembly - Wheel

Front Hub

FUSION; W/ 2.7L

$95.45 $64.05
2 HP5Z-3K185-A HP5Z-3K185-A / Knuckle

MKZ; RIGHT

$129.36 $86.80
2 HP5Z-3K186-A HP5Z-3K186-A / Knuckle

FUSION; W/ 2.7L; LEFT

$129.15 $86.66
3 HG9Z-18124-G HG9Z-18124-G / Strut

FUSION; 2.0L; W/ HYBRID; LEFT

$155.75 $104.51
3 HG9Z-18124-P HG9Z-18124-P / Strut

FUSION; 2.0L; W/ O HYBRID; RIGHT; W/ HIGH RIDE

$127.62 $85.63
3 HG9Z-18124-N HG9Z-18124-N / Strut

FUSION; 2.5L; RIGHT; W/ HIGH RIDE

$127.62 $85.63
3 HG9Z-18124-D HG9Z-18124-D / Strut

FUSION; 2.7L; LEFT

$379.35 $254.54
3 HG9Z-18124-C HG9Z-18124-C / Strut

MKZ; LEFT; 2.0L

$375.36 $251.87
3 HG9Z-18124-M HG9Z-18124-M / Strut

FUSION; 2.0L; W/ O HYBRID; RIGHT; W/ O HIGH RIDE

$102.20 $68.58
3 HG9Z-18124-L HG9Z-18124-L / Strut

FUSION; 2.0L; W/ HYBRID; RIGHT

$101.07 $67.82
3 HG9Z-18124-A HG9Z-18124-A / Strut

FUSION; 2.5L; RIGHT; W/ O HIGH RIDE

$155.75 $104.51
3 HG9Z-18124-E HG9Z-18124-E / Strut

MKZ; RIGHT; 2.0L

$375.36 $251.87
3 HG9Z-18124-K HG9Z-18124-K / Strut

FUSION; 2.0L; W/ O HYBRID; LEFT; W/ HIGH RIDE

$127.62 $85.63
3 HG9Z-18124-F HG9Z-18124-F / Strut

FUSION; 2.5L; LEFT; W/ O HIGH RIDE

$155.75 $104.51
3 HG9Z-18124-B HG9Z-18124-B / Strut

MKZ; RIGHT; 3.0L

$379.35 $254.54
3 HG9Z-18124-J HG9Z-18124-J / Strut

FUSION; 2.5L; LEFT; W/ HIGH RIDE

$127.62 $85.63
4 HG9Z-5310-M HG9Z-5310-M / Coil Spring

MKZ; 2.0L; W/ HYBRID

$34.27 $25.08
4 DG9Z-5310-H DG9Z-5310-H / Coil Spring

FUSION; 2.0L; W/ HYBRID; W/ PLUG-IN MODEL

$36.13 $26.45
4 DG9Z-5310-S DG9Z-5310-S / Coil Spring

FUSION; 2.0L; W/ HYBRID; W/ O PLUG-IN MODEL

$59.37 $43.46
4 HG9Z-5310-A HG9Z-5310-A / Coil Spring

MKZ; 2.0L; W/ O HYBRID; FWD

$33.62 $24.61
4 DG9Z-5310-R DG9Z-5310-R / Coil Spring

FUSION; 1.5L

$35.88 $26.27
4 HG9Z-5310-B HG9Z-5310-B / Coil Spring

MKZ; 2.0L; W/ O HYBRID; AWD

$35.85 $26.24
4 HP5Z-5310-H HP5Z-5310-H / Coil Spring

MKZ; 3.0L; FWD

$38.82 $28.41
4 DG9Z-5310-G DG9Z-5310-G / Coil Spring

FUSION; 2.0L; W/ O HYBRID; FWD

$32.08 $23.49
4 JS7Z-5310-B JS7Z-5310-B / Spring - Front

Coil Spring

FUSION; 2.7L

$40.80 $29.87
4 HP5Z-5310-J HP5Z-5310-J / Coil Spring

MKZ; 3.0L; AWD

$44.43 $32.53
5 DG9Z-3020-B DG9Z-3020-B / Strut Bumper

MKZ

$5.12 $3.75
5 DG9Z-3020-A DG9Z-3020-A / Strut Bumper

FUSION; W/ O 2.7L

$5.00 $3.66
6 DG9Z-18A047-C DG9Z-18A047-C / Dust Shield

MKZ

$5.90 $4.32
6 F2GZ-18A047-A F2GZ-18A047-A / Dust Shield

FUSION; W/ O 2.7L

$5.98 $4.38
7 6G9Z-5415-A 6G9Z-5415-A / Upper Seat

Upper Spring Insulator

FUSION

$6.22 $4.55
8 DG9Z-18198-A DG9Z-18198-A / Strut Bearing

FUSION

$18.82 $12.63
9 DG9Z-3A197-AB DG9Z-3A197-AB / Strut Mount

MKZ

$29.05 $19.50
10 FG9Z-3079-E FG9Z-3079-E / Lower Control Arm

FUSION; LEFT

$146.71 $98.44
10 FG9Z-3078-E FG9Z-3078-E / Lower Control Arm

FUSION; RIGHT

$146.71 $98.44
10 HG9Z-3079-A HG9Z-3079-A / Lower Control Arm

MKZ; LEFT; W/ 3.0L

$193.60 $129.91
10 HG9Z-3078-A HG9Z-3078-A / Lower Control Arm

MKZ; RIGHT; W/ 3.0L

$193.76 $130.02
11 DG9Z-5482-D DG9Z-5482-D / Stabilizer Bar

MKZ; 2.0L

$52.13 $38.16
11 DG9Z-5482-C DG9Z-5482-C / Stabilizer Bar

FUSION; W/ O HYBRID; FWD; W/ O 19 WHEELS; 1.5L

$56.42 $41.30
11 HG9Z-5482-A HG9Z-5482-A / Stabilizer Bar

FUSION; W/ O HYBRID; FWD; W/ O 19 WHEELS; 2.7L

$73.78 $54.01
11 HP5Z-5482-A HP5Z-5482-A / Stabilizer Bar

MKZ; 3.0L

$68.48 $50.13
12 HG9Z-5484-A HG9Z-5484-A / Stabilizer Bar Bushing

Bushings

FUSION; FWD; 2.0L

$7.12 $5.21
12 DG9Z-5484-D DG9Z-5484-D / Stabilizer Bar Bushing

Bushings

MKZ; 2.0L

$5.98 $4.38
12 F2GZ-5484-B F2GZ-5484-B / Stabilizer Bar Bushing

Bushings

MKZ; 3.0L

$4.88 $3.57
13 DG9Z-5486-A DG9Z-5486-A / Stabilizer Bar Bracket

Bracket

MKZ

$8.48 $6.21
14 DG9Z-5K484-A DG9Z-5K484-A / Stabilizer Link

Link

MKZ

$19.29 $12.94
No. Part # Part # / Description List Price Price
1 DG9Z-3K185-B DG9Z-3K185-B / Knuckle

Knuckle, RIGHT

W/ O SPORT

$111.00 $74.48
1 DG9Z-3K186-B DG9Z-3K186-B / Knuckle

Knuckle, LEFT

W/ O SPORT

$111.00 $74.48
2 FG9Z-3078-E FG9Z-3078-E / Lower Control Arm

Lower Control Arm, RIGHT

W/ O SPORT

$146.71 $98.44
2 FG9Z-3079-E FG9Z-3079-E / Lower Control Arm

Lower Control Arm, LEFT

W/ O SPORT

$146.71 $98.44
3 -W500545-S439 -W500545-S439 / Lower Control Arm Bolt

Lower Control Arm Bolt, LEFT

W/ O SPORT

$1.35 $0.82
3 -W500545-S439 -W500545-S439 / Lower Control Arm Bolt

Lower Control Arm Bolt, RIGHT

W/ O SPORT

$1.35 $0.82
4 -W520214-S442 -W520214-S442 / Control Arm Lock Nut

Lower Control Arm Nut, LEFT

W/ O SPORT

$2.24 $1.37
4 -W520214-S442 -W520214-S442 / Control Arm Lock Nut

Lower Control Arm Nut, RIGHT

W/ O SPORT

$2.24 $1.37
5 -W715672-S439 -W715672-S439 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, LEFT

W/ O SPORT

$3.19 $1.94
5 -W715672-S439 -W715672-S439 / Lower Control Arm Mount Bolt

Lower Control Arm Mount Bolt, RIGHT

W/ O SPORT

$3.19 $1.94
6 DG9Z-5482-C DG9Z-5482-C / Stabilizer Bar

W/ O SPORT, 1.5 LITER

$56.42 $41.30
7 DG9Z-5484-C DG9Z-5484-C / Stabilizer Bar Bushing

Stabilizer Bar Bushing, RIGHT

W/ O SPORT, 1.5 LITER

$5.93 $4.34
7 DG9Z-5484-C DG9Z-5484-C / Stabilizer Bar Bushing

Stabilizer Bar Bushing, LEFT

W/ O SPORT, 1.5 LITER

$5.93 $4.34
8 DG9Z-5486-A DG9Z-5486-A / Stabilizer Bar Bracket

Stabilizer Bar Bracket, LEFT

W/ O SPORT

$8.48 $6.21
8 DG9Z-5486-A DG9Z-5486-A / Stabilizer Bar Bracket

Stabilizer Bar Bracket, RIGHT

W/ O SPORT

$8.48 $6.21
9 -W711107-S442 -W711107-S442 / Stabilizer Bar Bolt

Stabilizer Bar Bolt, LEFT

W/ O SPORT

$4.16 $2.54
9 -W711107-S442 -W711107-S442 / Stabilizer Bar Bolt

Stabilizer Bar Bolt, RIGHT

W/ O SPORT

$4.16 $2.54
10 DG9Z-5K484-A DG9Z-5K484-A / Stabilizer Link

Stabilizer Link, LEFT

W/ O SPORT

$19.29 $12.94
10 DG9Z-5K484-A DG9Z-5K484-A / Stabilizer Link

Stabilizer Link, RIGHT

W/ O SPORT

$19.29 $12.94
11 -W712503-S440 -W712503-S440 / Stabilizer Link Nut

Stabilizer Link Nut, LEFT

W/ O SPORT, UPPER

$8.32 $5.08
11 -W712503-S440 -W712503-S440 / Stabilizer Link Nut

Stabilizer Link Nut, RIGHT

W/ O SPORT, UPPER

$8.32 $5.08
12 -W705606-S440 -W705606-S440 / Stabilizer Link Nut

Stabilizer Link Nut, LEFT

W/ O SPORT, LOWER

$6.24 $3.81
12 -W705606-S440 -W705606-S440 / Stabilizer Link Nut

Stabilizer Link Nut, RIGHT

W/ O SPORT, LOWER

$6.24 $3.81
13 HG9Z-5C145-C HG9Z-5C145-C / Engine Cradle

W/ O SPORT

$1,025.40 $750.59
14 DG9Z-5400145-B DG9Z-5400145-B / Engine Cradle Shim

W/ O SPORT

$6.33 $4.64
15 -W716457-S439 -W716457-S439 / Engine Cradle Mount Bolt

W/ O SPORT

$4.33 $2.65
