HVAC/Condenser, Compressor & Lines for 2017 Ford Fiesta

Select Condenser, Compressor & Lines Part

2017 Ford Fiesta

Change vehicle

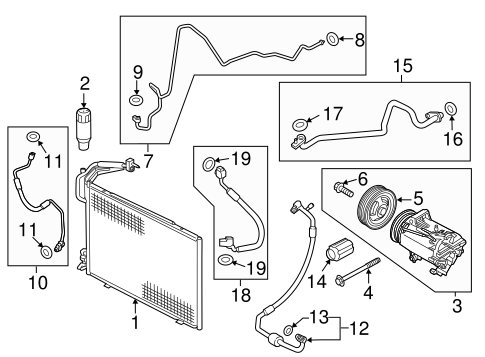

No. Part # Part # / Description List Price Price
1 D2BZ-19712-D D2BZ-19712-D / Condenser

FIESTA; 1.0L

$251.25 $168.59
2 1S7Z-19D702-C 1S7Z-19D702-C / Cap

2014-18, 1.0 LITER

$18.87 $12.66
3 C1BZ-19703-C C1BZ-19703-C / Compressor

FIESTA; 1.0L

$611.98 $410.64
4 -W704693-S442 -W704693-S442 / Compressor Mount Bolt

2014-18, 1.0 LITER

$2.50 $1.53
5 C1BZ-19V649-A C1BZ-19V649-A / Clutch & Pulley

Clutch

FIESTA; 1.0L

$294.96 $197.92
5 C1BZ-19V649-A C1BZ-19V649-A / Clutch & Pulley

2014-18, 1.0 LITER

$294.96 $197.92
6 -W711877-S437 -W711877-S437 / Clutch Bolt

Clutch & Pulley Bolt

2014-18, 1.0 LITER

$2.50 $1.53
7 D2BZ-19835-B D2BZ-19835-B / Pressure Tube

Liquid Line

FIESTA; 1.0L; EVAPORATOR TO HOSE

$61.35 $41.16
7 D2BZ-19835-B D2BZ-19835-B / Pressure Tube

2014-18, 1.0 LITER

$61.35 $41.16
8 6E5Z-19E889-E 6E5Z-19E889-E / Hose & Tube Assembly O-Ring

Pressure Tube Upper Seal

2014-18, 1.0 LITER

$4.09 $2.75
9 DS7Z-19B596-A DS7Z-19B596-A / Hose & Tube Assembly O-Ring

Pressure Tube Lower Seal

2014-18, 1.0 LITER

$24.87 $16.69
10 C1BZ-19835-C C1BZ-19835-C / Liquid Line

FIESTA; 1.0L; HOSE TO CONDENSER

$29.02 $19.47
10 C1BZ-19835-C C1BZ-19835-C / Liquid Line

AC Tube

2014-18, 1.0 LITER

$29.02 $19.47
11 DS7Z-19B596-A DS7Z-19B596-A / Hose & Tube Assembly O-Ring

AC Tube Seal

2014-18, 1.0 LITER

$24.87 $16.69
12 C1BZ-19867-E C1BZ-19867-E / Suction Hose

FIESTA; HOSE TO COMPRESSOR; 1.0L

$67.15 $45.05
13 DL3Z-19B596-B DL3Z-19B596-B / Seal Kit

Suction Hose Seal

2014-18, 1.0 LITER

$16.04 $10.76
14 1S7Z-19D702-C 1S7Z-19D702-C / Cap

Suction Hose Cap

2014-18, 1.0 LITER

$18.87 $12.66
15 D2BZ-19867-A D2BZ-19867-A / Suction Hose

FIESTA; EVAPORATOR TO HOSE; 1.0L

$49.22 $33.03
15 D2BZ-19867-A D2BZ-19867-A / Suction Hose

AC Line

2014-18, 1.0 LITER

$49.22 $33.03
16 6E5Z-19E889-A 6E5Z-19E889-A / AC Tube Upper Seal

AC Line O-Ring

2014-18, 1.0 LITER

$7.18 $4.82
17 DS7Z-19B596-A DS7Z-19B596-A / Hose & Tube Assembly O-Ring

AC Line Seal

2014-18, 1.0 LITER

$24.87 $16.69
18 C1BZ-19972-G C1BZ-19972-G / Hose & Tube Assembly

Discharge Hose

FIESTA; 1.0L

$37.45 $25.13
18 C1BZ-19972-G C1BZ-19972-G / Hose & Tube Assembly

2014-18, 1.0 LITER, FROM 11/ 18/ 2015

$37.45 $25.13
19 DS7Z-19B596-A DS7Z-19B596-A / Hose & Tube Assembly O-Ring

Hose & Tube Assembly Seal

2014-18, 1.0 LITER

$24.87 $16.69
No. Part # Part # / Description List Price Price
1 D2BZ-19B555-R D2BZ-19B555-R / AC & Heater Assembly

2014-18, W/ AUTO AC, W/ O AUX HEAT

$759.58 $556.02
1 D2BZ-19B555-S D2BZ-19B555-S / AC & Heater Assembly

2014-18, W/ AUTO AC, W/ AUX HEAT

$891.12 $652.30
5 BE8Z-18B031-A BE8Z-18B031-A / AC & Heater Case Nut

2014-18, W/ AUTO AC

$1.38 $1.01
9 AV1Z-18C636-A AV1Z-18C636-A / Cover Cap

2014-18, W/ AUTO AC

$11.07 $8.10
10 BE8Z-19B847-A BE8Z-19B847-A / Upper Seal

2014-18, W/ AUTO AC

$6.80 $4.98
11 BE8Z-19B847-B BE8Z-19B847-B / Lower Seal

2014-18, W/ AUTO AC

$6.82 $4.99
12 BE8Z-18A638-A BE8Z-18A638-A / Screen Gasket

Gasket

2014-18, W/ AUTO AC

$8.30 $6.08
13 D2BZ-18D395-B D2BZ-18D395-B / Screen

2014-18, W/ AUTO AC, FROM 06/ 02/ 2015

$23.33 $17.08
14 D2BZ-19860-A D2BZ-19860-A / Evaporator Core

2014-18, W/ AUTO AC

$213.27 $143.11
17 6E5Z-19E889-D 6E5Z-19E889-D / O-Ring

2014-18, W/ AUTO AC, 25.26MMX2.13MM

$4.33 $2.90
19 CV6Z-19C734-B CV6Z-19C734-B / Sensor

In-Car Temp Sensor

FIESTA; AT PLENUM CHAMBER

$10.89 $7.31
19 CV6Z-19C734-B CV6Z-19C734-B / Sensor

Temp Sensor, RIGHT

2014-18, W/ AUTO AC, OUTER

$10.89 $7.31
19 CV6Z-19C734-B CV6Z-19C734-B / Sensor

Temp Sensor, LEFT

2014-18, W/ AUTO AC, OUTER

$10.89 $7.31
20 BE8Z-19E616-A BE8Z-19E616-A / Adjust Motor

2014-18, W/ AUTO AC, # 1

$35.09 $23.55
21 AV1Z-19E616-K AV1Z-19E616-K / Adjust Motor

2014-18, W/ AUTO AC, # 2

$53.44 $35.86
22 BE8Z-19E616-B BE8Z-19E616-B / Adjust Motor

2014-18, W/ AUTO AC, # 3

$15.82 $10.61
23 BE8Z-19N619-A BE8Z-19N619-A / Air Filter

Cabin Air Filter

FIESTA

$25.44 $17.07
23 BE8Z-19N619-A BE8Z-19N619-A / Air Filter

2014-18, W/ AUTO AC

$25.44 $17.07
24 AV1Z-18K463-A AV1Z-18K463-A / Auxiliary Heater

2014-18, W/ AUTO AC

$94.48 $69.16
25 AV1Z-19805-C AV1Z-19805-C / Blower Motor

2014-18, W/ AUTO AC

$227.73 $152.81
28 AV1Z-19E624-A AV1Z-19E624-A / Control Module

Controller

2014-18, W/ AUTO AC

$198.33 $133.08
29 -W505843-S437 -W505843-S437 / Resistor Screw

Controller Screw

2014-18, W/ AUTO AC

$7.50 $4.58
No. Part # Part # / Description List Price Price
N/A AV1Z-19A566-A AV1Z-19A566-A / Dehydrator

Drier

FIESTA; 1.0L

$79.73 $58.36
No. Part # Part # / Description List Price Price
N/A AV1Z-19849-B AV1Z-19849-B / Expansion Valve

FIESTA

$84.24 $56.52
