Rear Suspension/Rear Suspension for 2016 Ford Transit Connect

Select Rear Suspension Part

2016 Ford Transit Connect

Change vehicle

Rear Suspension/Rear Suspension for 2016 Ford Transit Connect #1
No. Part # Part # / Description List Price Price
N/A DV6Z-5586-C DV6Z-5586-C / Upper Pad

Spring Insulator

TRANSIT CONNECT VAN

$6.18 $4.53
1 DV6Z-1104-A DV6Z-1104-A / Hub & Bearing Assembly

TRANSIT CONNECT VAN

$305.73 $205.14
2 DV6Z-18125-D DV6Z-18125-D / Shock Absorber

TRANSIT CONNECT VAN; LONG WHEELBASE; SERIES 400V, 410V, 420V

$123.35 $82.76
2 DV6Z-18125-C DV6Z-18125-C / Shock Absorber

TRANSIT CONNECT VAN; LONG WHEELBASE; SERIES 500V, 510V

$123.35 $82.76
2 DV6Z-18125-F DV6Z-18125-F / Shock Absorber

TRANSIT CONNECT VAN; SHORT WHEELBASE; SERIES 410V

$123.35 $82.76
2 DV6Z-18125-B DV6Z-18125-B / Shock Absorber

TRANSIT CONNECT VAN; SHORT WHEELBASE; SERIES 500V, 510V

$115.53 $77.52
3 DV6Z-5560-F DV6Z-5560-F / Coil Spring

TRANSIT CONNECT VAN; SHORT WHEELBASE; SERIES 500V, 510V

$83.37 $61.02
3 DV6Z-5560-D DV6Z-5560-D / Coil Spring

TRANSIT CONNECT VAN; LONG WHEELBASE; SERIES 500V, 510V

$77.67 $56.85
3 DV6Z-5560-E DV6Z-5560-E / Coil Spring

TRANSIT CONNECT VAN; SHORT WHEELBASE; SERIES 400V, 410V, 420V

$77.30 $56.58
3 DV6Z-5560-C DV6Z-5560-C / Coil Spring

TRANSIT CONNECT VAN; LONG WHEELBASE; SERIES 400V, 410V, 420V

$79.45 $58.16
4 DV6Z-4730-B DV6Z-4730-B / Bumper

TRANSIT CONNECT VAN

$10.45 $7.65
5 DV6Z-5793-A DV6Z-5793-A / Upper Seat

Spring Seat

TRANSIT CONNECT VAN

$24.17 $17.69
5 DV6Z-5035-D DV6Z-5035-D / Axle Assembly

TRANSIT CONNECT VAN; LONG WHEELBASE; CARGO VAN

$1,104.52 $808.51
5 KV6Z-5035-C KV6Z-5035-C / Cross Member Assembly

Axle Assembly

TRANSIT CONNECT VAN; SHORT WHEELBASE; WAGON; SERIES 500V, 510V

$1,116.57 $817.33
5 KV6Z-5035-B KV6Z-5035-B / Cross Member Assembly

Axle Assembly

TRANSIT CONNECT VAN; SHORT WHEELBASE; WAGON; SERIES 410V

$1,101.57 $806.35
5 DV6Z-5035-B DV6Z-5035-B / Axle Assembly

TRANSIT CONNECT VAN; LONG WHEELBASE; WAGON; SERIES 400V, 410V, 420V

$1,101.37 $806.20

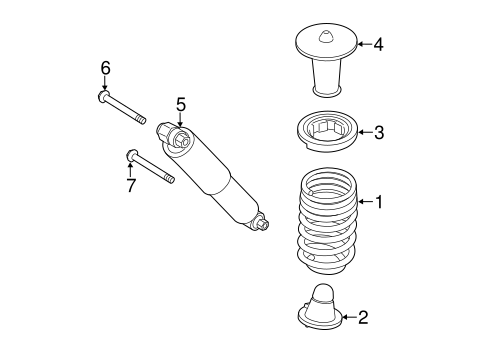

No. Part # Part # / Description List Price Price
1 DV6Z-5560-C DV6Z-5560-C / Coil Spring

Spring, LEFT

W/ LONG WB, W/ WAGON

$79.45 $58.16
1 DV6Z-5560-C DV6Z-5560-C / Coil Spring

Spring, RIGHT

W/ LONG WB, W/ WAGON

$79.45 $58.16
1 DV6Z-5560-F DV6Z-5560-F / Coil Spring

Spring, RIGHT

W/ SHORT WB, W/ VAN

$83.37 $61.02
1 DV6Z-5560-D DV6Z-5560-D / Coil Spring

Spring, LEFT

W/ LONG WB, W/ VAN

$77.67 $56.85
1 DV6Z-5560-F DV6Z-5560-F / Coil Spring

Spring, LEFT

W/ SHORT WB, W/ VAN

$83.37 $61.02
1 DV6Z-5560-D DV6Z-5560-D / Coil Spring

Spring, RIGHT

W/ LONG WB, W/ VAN

$77.67 $56.85
2 DV6Z-4730-B DV6Z-4730-B / Bumper

Bumper, RIGHT

$10.45 $7.65
2 DV6Z-4730-B DV6Z-4730-B / Bumper

Bumper, LEFT

$10.45 $7.65
3 DV6Z-5586-C DV6Z-5586-C / Upper Pad

Upper Pad, LEFT

$6.18 $4.53
3 DV6Z-5586-C DV6Z-5586-C / Upper Pad

Upper Pad, RIGHT

$6.18 $4.53
4 DV6Z-5793-A DV6Z-5793-A / Upper Seat

Upper Seat, RIGHT

$24.17 $17.69
4 DV6Z-5793-A DV6Z-5793-A / Upper Seat

Upper Seat, LEFT

$24.17 $17.69
5 DV6Z-18125-B DV6Z-18125-B / Shock Absorber

Shock, RIGHT

W/ SHORT WB, W/ VAN

$115.53 $77.52
5 DV6Z-18125-D DV6Z-18125-D / Shock Absorber

Shock, LEFT

W/ LONG WB, W/ WAGON

$123.35 $82.76
5 DV6Z-18125-C DV6Z-18125-C / Shock Absorber

Shock, LEFT

W/ LONG WB, W/ VAN

$123.35 $82.76
5 DV6Z-18125-B DV6Z-18125-B / Shock Absorber

Shock, LEFT

W/ SHORT WB, W/ VAN

$115.53 $77.52
5 DV6Z-18125-D DV6Z-18125-D / Shock Absorber

Shock, RIGHT

W/ LONG WB, W/ WAGON

$123.35 $82.76
5 DV6Z-18125-C DV6Z-18125-C / Shock Absorber

Shock, RIGHT

W/ LONG WB, W/ VAN

$123.35 $82.76
6 -W500751-S442 -W500751-S442 / Shock Upper Bolt

Shock Upper Bolt, RIGHT

$4.50 $2.75
6 -W500751-S442 -W500751-S442 / Shock Upper Bolt

Shock Upper Bolt, LEFT

$4.50 $2.75
7 -W706482-S442 -W706482-S442 / Shock Lower Bolt

Shock Lower Bolt, RIGHT

$3.50 $2.14
7 -W706482-S442 -W706482-S442 / Shock Lower Bolt

Shock Lower Bolt, LEFT

$3.50 $2.14
