Engine/Engine for 2016 Ford Transit Connect

Select Engine Part

2016 Ford Transit Connect

Change vehicle

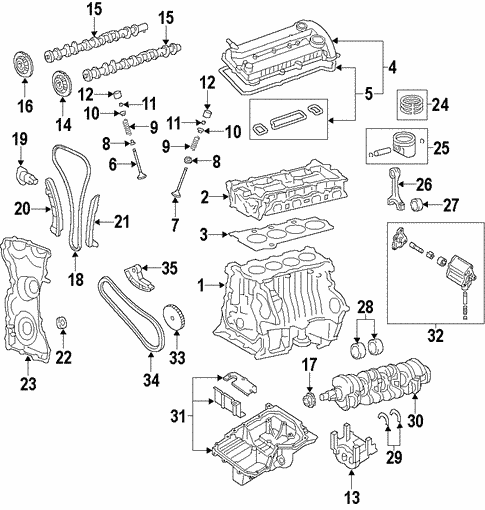

Engine/Engine for 2016 Ford Transit Connect #1
No. Part # Part # / Description List Price Price
N/A 9E5Z-6079-C 9E5Z-6079-C / Valve Grind Gasket Kit

TRANSIT CONNECT VAN

$65.98 $48.30
N/A 9E5Z-6781-A 9E5Z-6781-A / Lower Gasket Kit

TRANSIT CONNECT VAN; TO 8/ 22/ 16

$7.53 $5.51
N/A CV6Z-6312-D CV6Z-6312-D / Crankshaft Pulley

Pulley

TRANSIT CONNECT VAN

$56.45 $41.32
N/A BB3Z-6A642-A BB3Z-6A642-A / Oil Cooler

TRANSIT CONNECT VAN

$88.77 $64.98
N/A ET1Z-6006-A ET1Z-6006-A / Engine 1

TRANSIT CONNECT VAN; W/ CNG/ LPG PREP PKG.

$2,969.31 $2,716.92
N/A 8E5Z-6009-A 8E5Z-6009-A / Short Block 1

TRANSIT CONNECT VAN

$1,682.39 $1,436.76
N/A CJ5Z-6M280-A CJ5Z-6M280-A / Control Valve Solenoid

TRANSIT CONNECT VAN

$28.48 $20.85
N/A DB3Z-6006-A DB3Z-6006-A / Engine 1

TRANSIT CONNECT VAN; W/ O CNG/ LPG PREP PKG.

$2,716.07 $2,485.20
N/A 1S7Z-6K301-BA 1S7Z-6K301-BA / Rear Main Seal Retainer

TRANSIT CONNECT VAN

$58.37 $42.72
N/A CV6Z-6068-A CV6Z-6068-A / Trans Mount

TRANSIT CONNECT VAN

$55.17 $40.38
N/A BV6Z-6038-A BV6Z-6038-A / Mount

TRANSIT CONNECT VAN

$74.13 $54.27
N/A EJ7Z-6622-A EJ7Z-6622-A / Oil Pick-Up

TRANSIT CONNECT VAN

$8.73 $6.39
1 8E5Z-6010-A 8E5Z-6010-A / Cylinder Block

TRANSIT CONNECT VAN

$730.95 $579.65
2 GV6Z-6049-A GV6Z-6049-A / Cylinder Head 1

TRANSIT CONNECT VAN; W/ O CNG/ LPG PREP PKG.

$411.78 $326.55
2 CV6Z-6049-A CV6Z-6049-A / Cylinder Head 1

TRANSIT CONNECT VAN; W/ CNG/ LPG PREP PKG.

$559.12 $443.38
3 8E5Z-6051-A 8E5Z-6051-A / Head Gasket

TRANSIT CONNECT VAN; W/ O CNG/ LPG PREP PKG.

$40.18 $29.41
3 8E5Z-6051-C 8E5Z-6051-C / Head Gasket

TRANSIT CONNECT VAN; W/ CNG/ LPG PREP PKG.

$31.45 $23.02
4 CV6Z-6582-E CV6Z-6582-E / Valve Cover

TRANSIT CONNECT VAN

$56.47 $41.33
5 CV6Z-6584-A CV6Z-6584-A / Valve Cover Gasket

TRANSIT CONNECT VAN

$16.73 $12.25
6 9S4Z-6505-A 9S4Z-6505-A / Exhaust Valve

TRANSIT CONNECT VAN

$16.22 $11.87
7 6C1Z-6507-A 6C1Z-6507-A / Intake Valve

TRANSIT CONNECT VAN; W/ CMG/ LPG PREP PKG.

$16.88 $12.36
7 9S4Z-6507-C 9S4Z-6507-C / Intake Valve

TRANSIT CONNECT VAN; W/ O CNG/ LPG PREP PKG.

$5.07 $3.71
8 3S4Z-6571-AA 3S4Z-6571-AA / Valve Seals

TRANSIT CONNECT VAN; INTAKE

$6.10 $4.47
8 1S7Z-6571-EA 1S7Z-6571-EA / Valve Seals

TRANSIT CONNECT VAN; EXHAUST

$2.70 $1.98
9 CJ5Z-6513-A CJ5Z-6513-A / Valve Springs

TRANSIT CONNECT VAN

$2.38 $1.60
10 1S7Z-6514-AA 1S7Z-6514-AA / Valve Spring Retainers

TRANSIT CONNECT VAN

$6.95 $4.66
11 1S7Z-6518-AA 1S7Z-6518-AA / Valve Keeper

TRANSIT CONNECT VAN

$4.75 $3.18
12 CP9Z-6500-ABB CP9Z-6500-ABB / Valve Lifters

TRANSIT CONNECT VAN

$5.58 $3.75
13 BB3Z-6A311-A BB3Z-6A311-A / Balance Shaft Assembly

TRANSIT CONNECT VAN

$267.12 $195.53
14 6M8Z-6C525-A 6M8Z-6C525-A / Actuator

TRANSIT CONNECT VAN

$153.50 $112.36
15 CT1Z-6250-A CT1Z-6250-A / Intake Camshaft

Camshaft

TRANSIT CONNECT VAN; INTAKE

$29.58 $21.66
15 CT1Z-6250-B CT1Z-6250-B / Exhaust Camshaft

Camshaft

TRANSIT CONNECT VAN; EXHAUST

$25.07 $18.35
16 1S7Z-6256-AA 1S7Z-6256-AA / Camshaft Gear

TRANSIT CONNECT VAN

$28.33 $20.74
17 1S7Z-6306-CF 1S7Z-6306-CF / Gear - Crankshaft

Crankshaft Gear

TRANSIT CONNECT VAN

$14.13 $10.35
18 1L5Z-6268-AA 1L5Z-6268-AA / Timing Chain

TRANSIT CONNECT VAN

$67.98 $49.76
19 GB5Z-6K254-A GB5Z-6K254-A / Tensioner

TRANSIT CONNECT VAN

$30.82 $22.56
20 6M8Z-6K255-A 6M8Z-6K255-A / Tensioner Guide

TRANSIT CONNECT VAN

$26.87 $19.67
21 6M8Z-6K297-BA 6M8Z-6K297-BA / Chain Guide

TRANSIT CONNECT VAN

$24.40 $17.86
22 CM5Z-6700-C CM5Z-6700-C / Timing Cover Front Seal

Front Cover Seal

TRANSIT CONNECT VAN

$3.60 $2.64
23 CV6Z-6019-B CV6Z-6019-B / Timing Cover

Front Cover

TRANSIT CONNECT VAN

$71.90 $52.63
24 9E5Z-6148-A 9E5Z-6148-A / Piston Rings

TRANSIT CONNECT VAN

$26.68 $19.53
25 8E5Z-6108-BA 8E5Z-6108-BA / Piston

TRANSIT CONNECT VAN; PISTON; GRADE 2

$47.23 $34.57
25 8E5Z-6108-AA 8E5Z-6108-AA / Piston

TRANSIT CONNECT VAN; PISTON; GRADE 1

$60.08 $43.98
25 8E5Z-6108-AC 8E5Z-6108-AC / Piston

TRANSIT CONNECT VAN; PISTON; GRADE 3

$47.23 $34.57
25 8E5Z-6135-A 8E5Z-6135-A / Piston Pin

Piston

TRANSIT CONNECT VAN; PISTON PIN

$10.85 $7.28
26 8E5Z-6200-C 8E5Z-6200-C / Connecting Rod

TRANSIT CONNECT VAN

$19.33 $14.15
27 8E5Z-6211-B 8E5Z-6211-B / Bearings

Bearing

TRANSIT CONNECT VAN; GRADE 2

$4.04 $2.95
27 8E5Z-6211-A 8E5Z-6211-A / Bearings

Bearing

TRANSIT CONNECT VAN; GRADE 1

$4.04 $2.95
27 8E5Z-6211-C 8E5Z-6211-C / Bearings

Bearing

TRANSIT CONNECT VAN; GRADE 3

$4.04 $2.95
28 6M8Z-6333-DB 6M8Z-6333-DB / Bearings

TRANSIT CONNECT VAN; UPPER; GRADE 4

$8.08 $5.92
28 6M8Z-6333-GB 6M8Z-6333-GB / Bearings

TRANSIT CONNECT VAN; UPPER; GRADE 7

$5.82 $4.26
28 6M8Z-6333-AA 6M8Z-6333-AA / Bearings

TRANSIT CONNECT VAN; LOWER; GRADE 1

$7.88 $5.77
28 6M8Z-6333-DA 6M8Z-6333-DA / Bearings

TRANSIT CONNECT VAN; LOWER; GRADE 4

$7.88 $5.77
28 6M8Z-6333-BA 6M8Z-6333-BA / Bearings

TRANSIT CONNECT VAN; LOWER; GRADE 2

$7.82 $5.72
28 6M8Z-6333-EA 6M8Z-6333-EA / Bearings

TRANSIT CONNECT VAN; LOWER; GRADE 5

$7.88 $5.77
28 6M8Z-6333-CB 6M8Z-6333-CB / Bearings

TRANSIT CONNECT VAN; UPPER; GRADE 3

$7.82 $5.72
28 6M8Z-6333-AAA 6M8Z-6333-AAA / Bearings

TRANSIT CONNECT VAN; UPPER; GRADE 1

$8.12 $5.94
28 6M8Z-6333-FB 6M8Z-6333-FB / Bearings

TRANSIT CONNECT VAN; UPPER; GRADE 6

$7.82 $5.72
28 6M8Z-6333-CA 6M8Z-6333-CA / Bearings

TRANSIT CONNECT VAN; LOWER; GRADE 3

$8.88 $6.50
28 6M8Z-6333-BAA 6M8Z-6333-BAA / Bearings

TRANSIT CONNECT VAN; UPPER; GRADE 2

$7.82 $5.72
28 6M8Z-6333-FA 6M8Z-6333-FA / Bearings

TRANSIT CONNECT VAN; LOWER; GRADE 6

$7.82 $5.72
28 6M8Z-6333-B 6M8Z-6333-B / Bearings

TRANSIT CONNECT VAN; LOWER; GRADE 7

$5.82 $4.26
28 6M8Z-6333-EB 6M8Z-6333-EB / Bearings

TRANSIT CONNECT VAN; UPPER; GRADE 5

$8.08 $5.92
29 CJ5Z-6337-B CJ5Z-6337-B / Thrust Bearing

Thrust Washer

TRANSIT CONNECT VAN; MARK 2

$10.73 $7.86
29 CJ5Z-6337-E CJ5Z-6337-E / Thrust Bearing

Thrust Washer

TRANSIT CONNECT VAN; MARK 5

$15.20 $11.13
29 CJ5Z-6337-C CJ5Z-6337-C / Thrust Bearing

Thrust Washer

TRANSIT CONNECT VAN; MARK 3

$15.20 $11.13
29 CJ5Z-6337-D CJ5Z-6337-D / Thrust Bearing

Thrust Washer

TRANSIT CONNECT VAN; MARK 4

$15.00 $10.98
29 CJ5Z-6337-F CJ5Z-6337-F / Thrust Bearing

Thrust Washer

TRANSIT CONNECT VAN; MARK 6

$15.20 $11.13
29 CJ5Z-6337-G CJ5Z-6337-G / Thrust Bearing

Thrust Washer

TRANSIT CONNECT VAN; MARK 7

$15.20 $11.13
29 CJ5Z-6337-A CJ5Z-6337-A / Thrust Bearing

Thrust Washer

TRANSIT CONNECT VAN; MARK 1

$15.20 $11.13
30 DV6Z-6303-A DV6Z-6303-A / Crankshaft

TRANSIT CONNECT VAN

$304.60 $222.97
31 CJ5Z-6675-D CJ5Z-6675-D / Oil Pan

TRANSIT CONNECT VAN

$119.58 $87.54
32 8E5Z-6600-A 8E5Z-6600-A / Oil Pump

TRANSIT CONNECT VAN

$91.27 $66.81
33 8E5Z-6652-A 8E5Z-6652-A / Gear

Oil Pump Gear

TRANSIT CONNECT VAN

$19.67 $14.40
34 6M8Z-6A895-BA 6M8Z-6A895-BA / Chain

TRANSIT CONNECT VAN

$31.28 $22.90
35 8E5Z-6K254-A 8E5Z-6K254-A / Tensioner

TRANSIT CONNECT VAN

$15.18 $11.11
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
