Engine/Engine & Trans Mounting for 2016 Ford Transit Connect

Select Engine & Trans Mounting Part

2016 Ford Transit Connect

Change vehicle

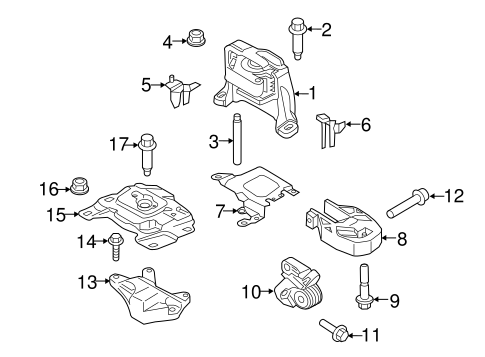

No. Part # Part # / Description List Price Price
1 BV6Z-6038-A BV6Z-6038-A / Mount

Motor Mount

2.5 LITER

$74.13 $54.27
2 -W708728-S442 -W708728-S442 / Front Mount Bolt

Motor Mount Bolt

2.5 LITER

$3.50 $2.14
3 -W711574-S439 -W711574-S439 / Front Mount Stud

Motor Mount Stud

2.5 LITER

$10.00 $6.10
4 -W520214-S440 -W520214-S440 / Control Arm Lock Nut

Motor Mount Nut

2.5 LITER

$5.00 $3.05
5 3M5Z-6E042-A 3M5Z-6E042-A / Motor Mount Support Bracket

Motor Mount Support Bracket, RIGHT

2.5 LITER

$10.00 $7.32
6 3M5Z-6031-A 3M5Z-6031-A / Motor Mount Support Bracket

Motor Mount Support Bracket, LEFT

2.5 LITER

$6.92 $5.06
7 CP9Z-6K034-A CP9Z-6K034-A / Motor Mount Reinforcement

2.5 LITER

$15.60 $11.42
8 CV6Z-6068-A CV6Z-6068-A / Trans Mount

Torque Arm

2.5 LITER

$55.17 $40.38
9 -W717349-S442 -W717349-S442 / Torque Arm Bolt

2.5 LITER

$5.50 $3.36
10 DV6Z-6E042-A DV6Z-6E042-A / Bracket

2.5 LITER

$22.58 $16.53
11 -W500044-S442 -W500044-S442 / Trans Mount Bracket Bolt

Bracket Mount Bolt

2.5 LITER

$2.50 $1.53
12 -W500545-S900 -W500545-S900 / Lower Trans Mount Bolt

Bracket Bolt

2.5 LITER

$4.50 $2.75
13 BV6Z-7M125-B BV6Z-7M125-B / Trans Mount

Support

2.5 LITER

$29.45 $21.56
14 -W500520-S442 -W500520-S442 / Support Mount Bolt

2.5 LITER

$3.50 $2.14
15 AV6Z-6068-A AV6Z-6068-A / Upper Trans Mount

Support Bracket

2.5 LITER

$48.07 $35.18
16 -W520203-S442 -W520203-S442 / Outer Tie Rod Lock Nut

Support Bracket Nut

2.5 LITER

$2.50 $1.53
17 -W500361-S442 -W500361-S442 / Upper Trans Mount Bolt

Support Bracket Bolt

2.5 LITER

$4.50 $2.75
