Electrical/Bulbs - Chassis for 2016 Ford Transit Connect

Select Bulbs - Chassis Part

2016 Ford Transit Connect

Change vehicle

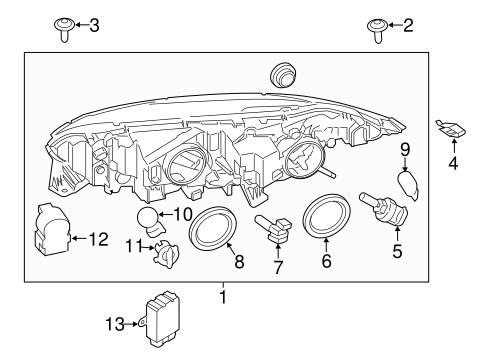

Electrical/Bulbs - Chassis for 2016 Ford Transit Connect #1
No. Part # Part # / Description List Price Price
1 DT1Z-13008-R DT1Z-13008-R / Headlamp Assembly 1

Composite Assembly

TRANSIT CONNECT VAN; LEFT; SERIES 400V, 500V

$565.90 $414.24
1 DT1Z-13008-Q DT1Z-13008-Q / Headlamp Assembly 1

Composite Assembly

TRANSIT CONNECT VAN; LEFT; SERIES 410V, 420V, 510V

$592.62 $433.80
1 DT1Z-13008-P DT1Z-13008-P / Headlamp Assembly 1

Composite Assembly

TRANSIT CONNECT VAN; RIGHT; SERIES 400V, 500V

$565.90 $414.24
1 DT1Z-13008-N DT1Z-13008-N / Headlamp Assembly 1

Composite Assembly

TRANSIT CONNECT VAN; RIGHT; SERIES 410V, 420V, 510V

$592.62 $433.80
1 DT1Z-13008-P DT1Z-13008-P / Headlamp Assembly 1

Headlamp Assembly, RIGHT

W/ O ADAPTIVE LAMPS

$565.90 $414.24
1 DT1Z-13008-Q DT1Z-13008-Q / Headlamp Assembly 1

Headlamp Assembly, LEFT

W/ ADAPTIVE LAMPS

$592.62 $433.80
1 DT1Z-13008-R DT1Z-13008-R / Headlamp Assembly 1

Headlamp Assembly, LEFT

W/ O ADAPTIVE LAMPS

$565.90 $414.24
1 DT1Z-13008-N DT1Z-13008-N / Headlamp Assembly 1

Headlamp Assembly, RIGHT

W/ ADAPTIVE LAMPS

$592.62 $433.80
2 -W702733-S450B -W702733-S450B / Headlamp Assembly Screw

Headlamp Assembly Screw, RIGHT

OUTER

$2.13 $1.29
2 -W702733-S450B -W702733-S450B / Headlamp Assembly Screw

Headlamp Assembly Screw, LEFT

OUTER

$2.13 $1.29
3 -W700843-S442 -W700843-S442 / Headlamp Assembly Screw

Headlamp Assembly Screw, RIGHT

INNER

$1.39 $0.84
3 -W700843-S442 -W700843-S442 / Headlamp Assembly Screw

Headlamp Assembly Screw, LEFT

INNER

$1.39 $0.84
4 DT1Z-13A005-C DT1Z-13A005-C / Bracket

Bracket, LEFT

$9.43 $4.03
4 DT1Z-13A004-C DT1Z-13A004-C / Bracket

Bracket, RIGHT

$6.33 $4.10
5 BM5Z-13N021-B BM5Z-13N021-B / Low Beam Bulb

Headlamp Bulb

TRANSIT CONNECT VAN; H11 12V55W

$7.78 $5.70
5 BM5Z-13N021-B BM5Z-13N021-B / Low Beam Bulb

Low Beam Bulb, LEFT

$7.78 $5.70
5 BM5Z-13N021-B BM5Z-13N021-B / Low Beam Bulb

Low Beam Bulb, RIGHT

$7.78 $5.70
6 DT1Z-13A137-A DT1Z-13A137-A / High Beam Bulb Dust Cap

Low Beam Bulb Dust Cap, RIGHT

$23.20 $14.52
6 DT1Z-13A137-A DT1Z-13A137-A / High Beam Bulb Dust Cap

Low Beam Bulb Dust Cap, LEFT

$23.20 $14.52
7 FL1Z-13N021-A FL1Z-13N021-A / High Beam Bulb

Headlamp Bulb

TRANSIT CONNECT VAN; H9 65W

$18.82 $13.77
7 FL1Z-13N021-A FL1Z-13N021-A / High Beam Bulb

High Beam Bulb, LEFT

$18.82 $13.77
7 FL1Z-13N021-A FL1Z-13N021-A / High Beam Bulb

High Beam Bulb, RIGHT

$18.82 $13.77
8 DT1Z-13A137-A DT1Z-13A137-A / High Beam Bulb Dust Cap

High Beam Bulb Dust Cap, RIGHT

$23.20 $14.52
8 DT1Z-13A137-A DT1Z-13A137-A / High Beam Bulb Dust Cap

High Beam Bulb Dust Cap, LEFT

$23.20 $14.52
9 E5RY-13466-B E5RY-13466-B / Bulb

Marker Lamp Bulb, RIGHT

$3.11 $2.28
9 E5RY-13466-B E5RY-13466-B / Bulb

Marker Lamp Bulb, LEFT

$3.11 $2.28
10 DT1Z-13466-A DT1Z-13466-A / Park Lamp Bulb

Exterior Bulbs

TRANSIT CONNECT VAN; FRONT TURN SIGNAL; CLEAR

$18.18 $13.31
10 DS7Z-13466-A DS7Z-13466-A / Signal Lamp Bulb

Exterior Bulbs

TRANSIT CONNECT VAN; FRONT TURN SIGNAL; AMBER

$13.63 $9.98
10 DT1Z-13466-A DT1Z-13466-A / Park Lamp Bulb

Park Lamp Bulb, LEFT

CLEAR

$18.18 $13.31
10 DS7Z-13466-A DS7Z-13466-A / Signal Lamp Bulb

Park Lamp Bulb, RIGHT

AMBER

$13.63 $9.98
10 DT1Z-13466-A DT1Z-13466-A / Park Lamp Bulb

Park Lamp Bulb, RIGHT

CLEAR

$18.18 $13.31
10 DS7Z-13466-A DS7Z-13466-A / Signal Lamp Bulb

Park Lamp Bulb, LEFT

AMBER

$13.63 $9.98
11 DT1Z-13K371-A DT1Z-13K371-A / Park Lamp Bulb Socket

Park Lamp Bulb Socket, LEFT

$4.16 $2.79
11 DT1Z-13K371-A DT1Z-13K371-A / Park Lamp Bulb Socket

Park Lamp Bulb Socket, RIGHT

$4.16 $2.79
12 DT1Z-13C126-A DT1Z-13C126-A / Vent

Vent, RIGHT

$7.05 $4.42
12 DT1Z-13C126-A DT1Z-13C126-A / Vent

Vent, LEFT

$7.05 $4.42
No. Part # Part # / Description List Price Price

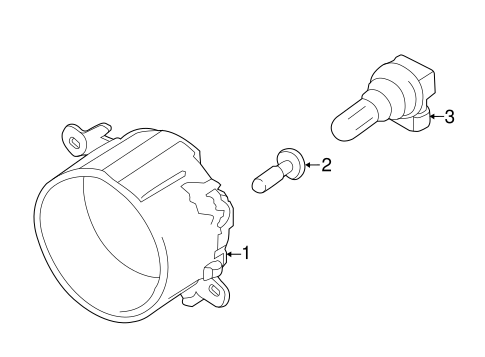

1 DS7Z-15A201-B DS7Z-15A201-B / Fog Lamp

Fog Lamp Assembly

TRANSIT CONNECT VAN; W/ ADAPTIVE CORNER

$129.33 $68.54
1 DS7Z-15A201-B DS7Z-15A201-B / Fog Lamp

Fog Lamp, LEFT

W/ ADAPTIVE LAMPS

$129.33 $68.54
1 DS7Z-15A201-B DS7Z-15A201-B / Fog Lamp

Fog Lamp, RIGHT

W/ ADAPTIVE LAMPS

$129.33 $68.54
2 -W701459-S437 -W701459-S437 / Fog Lamp Bolt

Fog Lamp Bolt, LEFT

TO 03/ 21/ 2016

$1.11 $0.67
2 -W701459-S437 -W701459-S437 / Fog Lamp Bolt

Fog Lamp Bolt, RIGHT

TO 03/ 21/ 2016

$1.11 $0.67
2 -W701459-S303 -W701459-S303 / Fog Lamp Bolt

Fog Lamp Bolt, LEFT

FROM 03/ 21/ 2016

$1.20 $0.73
2 -W701459-S303 -W701459-S303 / Fog Lamp Bolt

Fog Lamp Bolt, RIGHT

FROM 03/ 21/ 2016

$1.20 $0.73
3 1S7Z-13466-BA 1S7Z-13466-BA / Fog Lamp Bulb

TRANSIT CONNECT VAN; W/ O ADAPTIVE CORNER

$28.17 $20.62
3 1S7Z-13466-DA 1S7Z-13466-DA / Fog Lamp Bulb

TRANSIT CONNECT VAN; W/ ADAPTIVE CORNER

$18.32 $13.41
3 1S7Z-13466-BA 1S7Z-13466-BA / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

W/ O ADAPTIVE LAMPS

$28.17 $20.62
3 1S7Z-13466-BA 1S7Z-13466-BA / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

W/ O ADAPTIVE LAMPS

$28.17 $20.62
3 1S7Z-13466-DA 1S7Z-13466-DA / Fog Lamp Bulb

Fog Lamp Bulb, LEFT

W/ ADAPTIVE LAMPS

$18.32 $13.41
3 1S7Z-13466-DA 1S7Z-13466-DA / Fog Lamp Bulb

Fog Lamp Bulb, RIGHT

W/ ADAPTIVE LAMPS

$18.32 $13.41
No. Part # Part # / Description List Price Price
N/A 5N2Z-13466-A 5N2Z-13466-A / Bulb

Exterior Bulbs

TRANSIT CONNECT VAN; REAR TURN SIGNAL

$9.52 $6.97
N/A E6DZ-13466-B E6DZ-13466-B / Bulb

Exterior Bulbs

TRANSIT CONNECT VAN; BACK-UP LAMP

$3.75 $2.75
No. Part # Part # / Description List Price Price
N/A 3M7Z-13466-B 3M7Z-13466-B / Stop Lamp Bulb

Exterior Bulbs

TRANSIT CONNECT VAN; REAR COMBINATION LAMP

$5.73 $4.20
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
