Body/Roof & Components for 2016 Ford Transit Connect

Select Roof & Components Part

2016 Ford Transit Connect

Change vehicle

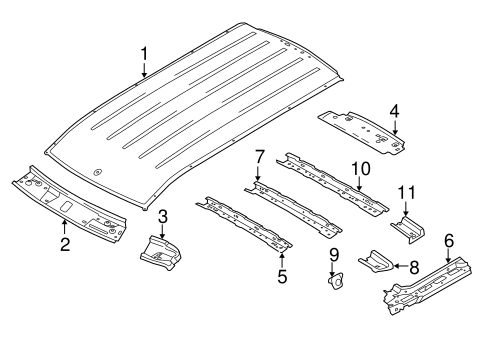

No. Part # Part # / Description List Price Price
1 DT1Z-6150202-W DT1Z-6150202-W / Roof

VAN, W/ O FIXED GLASS, W/ O NAVIGATION

$1,400.22 $1,024.96
1 DT1Z-6150202-AB DT1Z-6150202-AB / Roof

VAN, W/ O FIXED GLASS, W/ NAVIGATION, W/ HINGED BACK DOORS

$1,428.00 $1,045.30
1 DT1Z-6150202-AC DT1Z-6150202-AC / Roof

VAN, W/ O FIXED GLASS, W/ NAVIGATION, W/ LIFT GATE

$1,400.33 $1,025.04
4 DT1Z-6141302-A DT1Z-6141302-A / Rear Header

VAN, W/ O FIXED GLASS

$124.88 $59.62
5 DT1Z-6151272-D DT1Z-6151272-D / Front Bow

VAN, W/ O FIXED GLASS

$95.48 $69.89
9 DT1Z-00817-B DT1Z-00817-B / Bracket Retainer

Bracket Retainer, RIGHT

VAN, W/ O FIXED GLASS

$36.42 $26.66
10 DT1Z-6151272-F DT1Z-6151272-F / Bow

Rear Bow

VAN, W/ O FIXED GLASS

$87.98 $64.40
11 DT1Z-61508A16-C DT1Z-61508A16-C / Rear Bracket

Rear Bracket, RIGHT

VAN, W/ O FIXED GLASS

$23.57 $15.77
11 DT1Z-61508A16-D DT1Z-61508A16-D / Rear Bracket

Rear Bracket, LEFT

VAN, W/ O FIXED GLASS

$23.43 $15.70

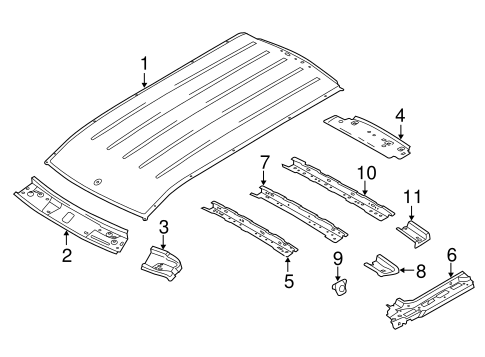

No. Part # Part # / Description List Price Price
1 DT1Z-6150202-AE DT1Z-6150202-AE / Roof

VAN, W/ NAVIGATION, W/ LIFT GATE

$761.73 $557.59
1 DT1Z-6150202-Z DT1Z-6150202-Z / Roof

VAN, W/ NAVIGATION, W/ HINGED BACK DOORS

$1,489.55 $1,090.35
1 DT1Z-6150202-V DT1Z-6150202-V / Roof

VAN, W/ O NAVIGATION

$1,517.33 $1,110.69
7 DT1Z-6151272-E DT1Z-6151272-E / Center Bow

VAN

$87.50 $64.05
8 DT1Z-61508A16-A DT1Z-61508A16-A / Bracket

Bracket, RIGHT

VAN

$23.08 $16.90
9 DT1Z-00817-C DT1Z-00817-C / Bracket Retainer

Bracket Retainer, LEFT

VAN

$36.42 $26.66

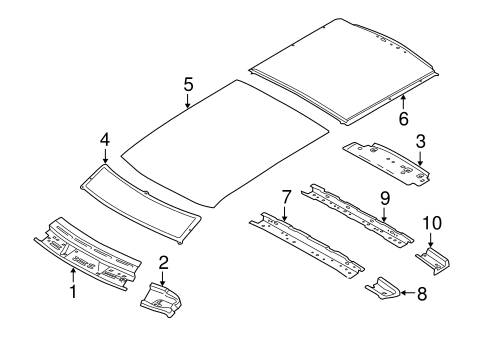

No. Part # Part # / Description List Price Price
1 DT1Z-6103408-B DT1Z-6103408-B / Windshield Header

WAGON, W/ FIXED GLASS

$145.55 $106.54
6 DT1Z6150202AH DT1Z6150202AH / Rear Roof Panel

WAGON, W/ FIXED GLASS, W/ O NAVIGATION

- -
6 DT1Z6150202AD DT1Z6150202AD / Rear Roof Panel

WAGON, W/ FIXED GLASS, W/ NAVIGATION, TO 05/ 29/ 2017

- -
7 DT1Z-6151272-F DT1Z-6151272-F / Bow

Front Bow

WAGON, W/ FIXED GLASS

$87.98 $64.40
8 DT1Z-61508A16-C DT1Z-61508A16-C / Rear Bracket

Bracket, RIGHT

WAGON, W/ FIXED GLASS

$23.57 $15.77
8 DT1Z-61508A16-D DT1Z-61508A16-D / Rear Bracket

Bracket, LEFT

WAGON, W/ FIXED GLASS

$23.43 $15.70
9 DT1Z-6151272-E DT1Z-6151272-E / Center Bow

Rear Bow

WAGON, W/ FIXED GLASS

$87.50 $64.05
No. Part # Part # / Description List Price Price
2 DT1Z-6103408-D DT1Z-6103408-D / Windshield Header

WAGON, W/ O FIXED GLASS

$213.10 $155.99
8 DT1Z-61508A16-B DT1Z-61508A16-B / Bracket

Bracket, LEFT

WAGON, W/ O FIXED GLASS

$23.85 $15.62
