Body/Rails & Components for 2016 Ford Transit Connect

Select Rails & Components Part

2016 Ford Transit Connect

Change vehicle

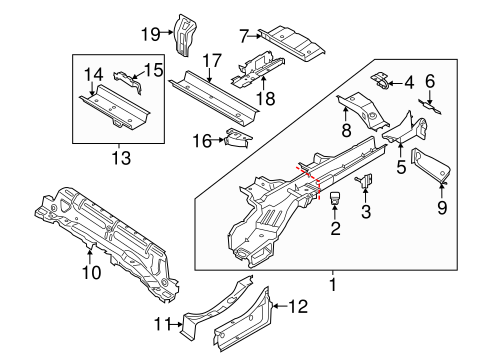

No. Part # Part # / Description List Price Price
1 DV6Z-6110124-C DV6Z-6110124-C / Side Rail Assembly

Side Rail Assembly, RIGHT

W/ LONG WHEELBASE

$766.37 $560.98
1 DV6Z-6110125-E DV6Z-6110125-E / Side Rail Assembly

Side Rail Assembly, RIGHT

W/ LONG WHEELBASE

$722.00 $528.50
2 DV6Z-2082-A DV6Z-2082-A / Side Rail Assembly Bracket

Side Rail Assembly Bracket, LEFT

W/ LONG WHEELBASE, # 1

$10.15 $6.81
2 DV6Z-2082-A DV6Z-2082-A / Side Rail Assembly Bracket

Side Rail Assembly Bracket, RIGHT

W/ LONG WHEELBASE, # 1

$10.15 $6.81
4 DV6Z-5K222-B DV6Z-5K222-B / Side Rail Assembly Bracket

Side Rail Assembly Bracket, LEFT

W/ LONG WHEELBASE, # 3

$62.43 $44.18
7 DV6Z-61111A64-A DV6Z-61111A64-A / Rear Cross-Member

W/ LONG WHEELBASE

$68.10 $49.85
8 KV6Z-6111251-A KV6Z-6111251-A / Extension

Extension, LEFT

W/ LONG WHEELBASE

$40.47 $29.62
8 KV6Z-6111250-A KV6Z-6111250-A / Extension

Extension, RIGHT

W/ LONG WHEELBASE

$39.77 $29.11
9 KV6Z-61102A35-A KV6Z-61102A35-A / Reinforcement - Rear Floor Pan

End Plate, LEFT

W/ LONG WHEELBASE

$265.70 $194.49
9 DV6Z-61102A34-B DV6Z-61102A34-B / End Plate

End Plate, RIGHT

W/ LONG WHEELBASE

$261.92 $191.72
10 KV6Z-6110692-A KV6Z-6110692-A / Cross Member Assembly

Front Crossmember

W/ LONG WHEELBASE

$504.13 $369.03
12 DV6Z-6111250-C DV6Z-6111250-C / Rail Extension

Rail Extension, LEFT

W/ LONG WHEELBASE

$105.20 $77.01
12 DV6Z-6111250-B DV6Z-6111250-B / Rail Extension

Rail Extension, RIGHT

W/ LONG WHEELBASE

$90.40 $66.17
13 DV6Z-4K338-D DV6Z-4K338-D / Cross-Member

W/ LONG WHEELBASE, W/ 3RD ROW SEAT

$174.90 $128.03
13 DV6Z-4K338-B DV6Z-4K338-B / Cross-Member

W/ LONG WHEELBASE, W/ O 3RD ROW SEAT

$92.25 $67.53
15 DV6Z-1711250-A DV6Z-1711250-A / Cross-Member Upper Bracket

W/ LONG WHEELBASE

$26.92 $19.70
16 DV6Z-17112B78-A DV6Z-17112B78-A / Cross-Member Lower Bracket

W/ LONG WHEELBASE

$32.45 $23.75
17 DV6Z-1710133-A DV6Z-1710133-A / Cross-Member Support

Cross-member Support, LEFT

W/ LONG WHEELBASE

$34.00 $20.74
18 DV6Z-17113B36-A DV6Z-17113B36-A / Cross-Member Brace

Cross-member Brace, RIGHT

W/ LONG WHEELBASE

$12.57 $9.20
18 DV6Z-17113B36-B DV6Z-17113B36-B / Cross-Member Brace

Cross-member Brace, LEFT

W/ LONG WHEELBASE

$12.57 $9.20
19 DV6Z-61107A02-A DV6Z-61107A02-A / Center Cross-Member

Center Crossmember

W/ LONG WHEELBASE

$117.32 $85.88

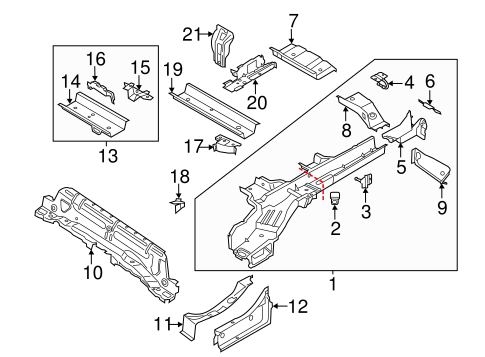

No. Part # Part # / Description List Price Price
1 DV6Z-6110125-E DV6Z-6110125-E / Side Rail Assembly

Side Rail Assembly, LEFT

W/ SHORT WHEELBASE

$722.00 $528.50
3 DV6Z-5K222-E DV6Z-5K222-E / Side Rail Assembly Bracket

Side Rail Assembly Bracket, LEFT

W/ SHORT WHEELBASE, # 2

$11.83 $8.37
3 DV6Z-5K222-E DV6Z-5K222-E / Side Rail Assembly Bracket

Side Rail Assembly Bracket, RIGHT

W/ SHORT WHEELBASE, # 2

$11.83 $8.37
4 DV6Z-5K222-C DV6Z-5K222-C / Side Rail Assembly Bracket

Side Rail Assembly Bracket, RIGHT

W/ SHORT WHEELBASE, # 3

$63.14 $44.68
5 DV6Z-17A750-A DV6Z-17A750-A / Rail End

Rail End, RIGHT

W/ SHORT WHEELBASE

$86.18 $63.09
5 DV6Z-17A750-A DV6Z-17A750-A / Rail End

Rail End, LEFT

W/ SHORT WHEELBASE

$86.18 $63.09
6 DV6Z-17C810-A DV6Z-17C810-A / Rail End Support

Rail End Support, LEFT

W/ SHORT WHEELBASE

$8.70 $6.37
6 DV6Z-17C810-A DV6Z-17C810-A / Rail End Support

Rail End Support, RIGHT

W/ SHORT WHEELBASE

$8.70 $6.37
12 DV6Z-6111250-A DV6Z-6111250-A / Rail Extension

Rail Extension, RIGHT

W/ SHORT WHEELBASE

$90.57 $66.29
12 DV6Z-6111250-D DV6Z-6111250-D / Rail Extension

Rail Extension, LEFT

W/ SHORT WHEELBASE

$105.73 $77.40
13 DV6Z-4K338-A DV6Z-4K338-A / Cross-Member

W/ SHORT WHEELBASE

$56.77 $41.55
14 DV6Z-61310B16-B DV6Z-61310B16-B / Cross-Member Reinforcement

W/ SHORT WHEELBASE

$55.52 $40.64
15 DV6Z-17112B78-A DV6Z-17112B78-A / Cross-Member Lower Bracket

Cross-member Bracket

W/ SHORT WHEELBASE

$32.45 $23.75
16 DV6Z-1710132-A DV6Z-1710132-A / Cross-Member Support

Cross-member Support, RIGHT

W/ SHORT WHEELBASE

$34.00 $20.74
18 DV6Z-6147076-A DV6Z-6147076-A / Bracket

W/ SHORT WHEELBASE

$48.12 $35.22
19 DV6Z-6147076-B DV6Z-6147076-B / Spare Bracket

W/ SHORT WHEELBASE

$27.88 $20.41
