Body/Liftgate for 2016 Ford Transit Connect

Select Liftgate Part

2016 Ford Transit Connect

Change vehicle

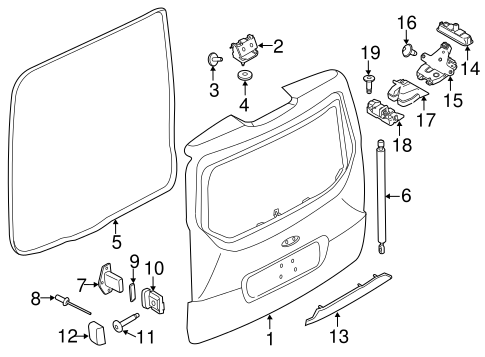

No. Part # Part # / Description List Price Price
1 DT1Z-6146404-E DT1Z-6146404-E / Lift Gate

W/ VAN

$1,013.52 $741.89
1 DT1Z-6146404-F DT1Z-6146404-F / Lift Gate

W/ WAGON

$1,008.23 $738.03
2 CP9Z-5842901-A CP9Z-5842901-A / Hinge

Hinge, LEFT

$36.78 $26.93
2 CP9Z-5842900-A CP9Z-5842900-A / Hinge

Hinge, RIGHT

$34.97 $25.60
3 -W715314-S437 -W715314-S437 / Hinge Screw

Hinge Screw, RIGHT

$1.00 $0.61
3 -W715314-S437 -W715314-S437 / Hinge Screw

Hinge Screw, LEFT

$1.00 $0.61
4 -W711213-S300 -W711213-S300 / Hinge Nut

Hinge Nut, RIGHT

$1.00 $0.61
4 -W711213-S300 -W711213-S300 / Hinge Nut

Hinge Nut, LEFT

$1.00 $0.61
5 DT1Z-61404A06-C DT1Z-61404A06-C / Weather-Strip On Body

$174.77 $127.93
6 DT1Z-61406A10-B DT1Z-61406A10-B / Lift Assembly - Gas

Lift Cylinder

TRANSIT CONNECT VAN

$73.75 $51.24
6 DT1Z-61406A10-B DT1Z-61406A10-B / Lift Assembly - Gas

Lift Cylinder, RIGHT

$73.75 $51.24
6 DT1Z-61406A10-B DT1Z-61406A10-B / Lift Assembly - Gas

Lift Cylinder, LEFT

$73.75 $51.24
7 DT1Z-61439A00-A DT1Z-61439A00-A / Locator

Locator, RIGHT

$4.72 $3.45
7 DT1Z-61439A00-A DT1Z-61439A00-A / Locator

Locator, LEFT

$4.72 $3.45
8 -W706686-S303 -W706686-S303 / Locator Rivet

Locator Rivet, RIGHT

$5.08 $3.10
8 -W706686-S303 -W706686-S303 / Locator Rivet

Locator Rivet, LEFT

$5.08 $3.10
9 CP9Z-58404C04-A CP9Z-58404C04-A / Lift Gate Wedge

Wedge, LEFT

$4.28 $2.93
9 CP9Z-58404C04-A CP9Z-58404C04-A / Lift Gate Wedge

Wedge, RIGHT

$4.28 $2.93
10 AM5Z-17439A00-A AM5Z-17439A00-A / Lift Gate Bumper

Bumper, LEFT

$5.35 $3.92
10 AM5Z-17439A00-A AM5Z-17439A00-A / Lift Gate Bumper

Bumper, RIGHT

$5.35 $3.92
11 -W715864-S303 -W715864-S303 / Lift Gate Bolt

Bumper Bolt, RIGHT

$2.00 $1.22
11 -W715864-S303 -W715864-S303 / Lift Gate Bolt

Bumper Bolt, LEFT

$2.00 $1.22
12 AM5Z-17810-A AM5Z-17810-A / Cover

Cover, RIGHT

$3.88 $2.84
12 AM5Z-17810-A AM5Z-17810-A / Cover

Cover, LEFT

$3.88 $2.84
13 DT1Z-5843400-AA DT1Z-5843400-AA / Handle, Outside

W/ O REAR CAMERA, GRAY

$109.17 $71.50
13 DT1Z-5843400-CA DT1Z-5843400-CA / Handle, Outside

W/ REAR CAMERA, GRAY

$119.00 $83.40
13 DT1Z-5843400-DA DT1Z-5843400-DA / Handle, Outside

W/ REAR CAMERA, PRIMED

$153.67 $107.48
13 DT1Z-5843400-BA DT1Z-5843400-BA / Handle, Outside

W/ O REAR CAMERA, PRIMED

$150.78 $105.48
14 BM5Z-54432A38-A BM5Z-54432A38-A / Switch

TRANSIT CONNECT VAN

$97.18 $71.14
14 BM5Z-54432A38-A BM5Z-54432A38-A / Switch

Lift Gate Switch

$97.18 $71.14
15 8M5Z-5843150-F 8M5Z-5843150-F / Lock Actuator

TRANSIT CONNECT VAN

$89.17 $65.27
15 8M5Z-5843150-F 8M5Z-5843150-F / Lock Actuator

Latch

$89.17 $65.27
16 -W709723-S303 -W709723-S303 / Latch Bolt

$1.00 $0.61
17 DT1Z-58218A14-A DT1Z-58218A14-A / Latch Cover

$14.93 $10.93
18 BK2Z-61404A42-A BK2Z-61404A42-A / Striker

$88.22 $64.57
19 -W703283-S450 -W703283-S450 / Striker Screw

$1.00 $0.61
