Body/Instrument Panel for 2016 Ford Transit Connect

Select Instrument Panel Part

2016 Ford Transit Connect

Change vehicle

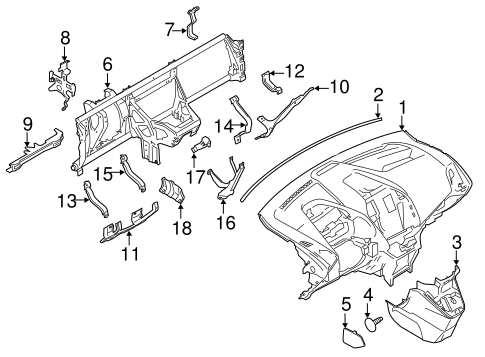

No. Part # Part # / Description List Price Price
1 DT1Z-6104320-CG DT1Z-6104320-CG / Panel - Instrument

Instrument Panel

STONE, W/ O PASSENGER AIRBAG, STONE, W/ O PASSENGER AIRBAG

$1,567.78 $1,147.62
1 DT1Z-6104320-CH DT1Z-6104320-CH / Panel - Instrument

Instrument Panel

BLACK, W/ O PASSENGER AIRBAG, BLACK, W/ O PASSENGER AIRBAG

$1,567.78 $1,147.62
1 DT1Z-6104320-DF DT1Z-6104320-DF / Instrument Panel

BLACK, W/ PASSENGER AIRBAG, TO 05/ 20/ 2016

$1,893.33 $1,385.92
1 DT1Z-6104320-DE DT1Z-6104320-DE / Instrument Panel

STONE, W/ PASSENGER AIRBAG, TO 05/ 20/ 2016

$810.15 $593.03
2 DT1Z-6104398-AA DT1Z-6104398-AA / Instrument Panel Insulator

$29.07 $21.28
3 DT1Z-61044F58-DB DT1Z-61044F58-DB / Lower Panel

BLACK

$202.22 $148.02
3 DT1Z-61044F58-DA DT1Z-61044F58-DA / Lower Panel

STONE

$202.22 $148.02
4 AM5Z-58519A16-AA AM5Z-58519A16-AA / Lower Panel Retainer Clip

STONE

$5.13 $3.76
4 CV6Z-58519A16-AB CV6Z-58519A16-AB / Side Panel Retainer Clip

Lower Panel Retainer Clip

BLACK

$4.67 $3.42
6 DV6Z-6104545-A DV6Z-6104545-A / Reinforced Beam

$994.17 $727.73
7 DT1Z-61045F10-B DT1Z-61045F10-B / Reinforced Beam Support

W/ GLOVE BOX

$32.70 $23.94
7 DT1Z-61045F10-A DT1Z-61045F10-A / Reinforced Beam Support

W/ O GLOVE BOX

$36.80 $26.94
8 DT1Z-14A301-A DT1Z-14A301-A / Reinforced Beam Inner Support

$19.08 $13.97
8 DT1Z-14A301-A DT1Z-14A301-A / Reinforced Beam Inner Support

Reinforced Beam Brace

$19.08 $13.97
9 DV6Z-54044G04-A DV6Z-54044G04-A / Bracket

Reinforced Beam Lower Bracket

$49.10 $35.94
10 DT1Z-61045K00-C DT1Z-61045K00-C / Lower Support Bracket

Lower Support, RIGHT

$71.32 $52.20
11 DT1Z-6104502-A DT1Z-6104502-A / Lower Support

Lower Support, LEFT

$132.78 $97.20
12 DT1Z-61045K00-B DT1Z-61045K00-B / Lower Support Bracket

Lower Support Bracket, RIGHT

OUTER

$44.62 $32.66
13 DT1Z-61045K00-C DT1Z-61045K00-C / Lower Support Bracket

Lower Support Bracket, LEFT

OUTER

$71.32 $52.20
14 DT1Z-61045K00-A DT1Z-61045K00-A / Lower Support Bracket

Lower Support Bracket, RIGHT

INNER

$62.18 $45.52
16 DT1Z-61044G22-B DT1Z-61044G22-B / Bracket Assembly - Instrument Panel

Center Support

$53.85 $39.42
17 AM5Z-58043B92-A AM5Z-58043B92-A / Center Support Bracket

Center Support Bracket, RIGHT

$7.70 $5.64
18 CV6Z-58043B92-A CV6Z-58043B92-A / Reinforced Beam Center Bracket

Center Support Bracket, LEFT

$23.80 $17.42
No. Part # Part # / Description List Price Price
1 CV6Z-5422404-CA CV6Z-5422404-CA / Handle, Outside

PRIMED

$45.63 $33.40
1 CV6Z-5422404-DA CV6Z-5422404-DA / Handle, Outside

BLACK

$43.47 $31.82
2 CV6Z-5422042-A CV6Z-5422042-A / Handle, Outside Pad

$4.03 $2.95
3 CV6Z-58218B08-AAPTM CV6Z-58218B08-AAPTM / Handle, Outside Bezel

Cap

PRIMED

$15.30 $11.20
3 AM5Z-17218B08-A AM5Z-17218B08-A / Handle, Outside Bezel

Cap

BLACK

$20.05 $14.68
4 CV6Z-5422042-B CV6Z-5422042-B / Bezel Pad

Cap Pad

$4.17 $3.05
5 BK2Z-6126684-C BK2Z-6126684-C / Handle Base

$47.58 $34.83
6 -W703168-S900 -W703168-S900 / Shield Screw

Handle Base Screw

$1.20 $0.73
7 DT1Z-61266A46-B DT1Z-61266A46-B / Release Cable

$34.23 $25.06
8 DT1Z-6143289-B DT1Z-6143289-B / Lock Actuator

Lower Latch

$132.92 $97.30
8 DT1Z-6143289-B DT1Z-6143289-B / Lock Actuator

TRANSIT CONNECT VAN; LOWER

$132.92 $97.30
9 -W504755-S442 -W504755-S442 / Latch Bolt

Lower Latch Screw

$2.39 $1.46
10 BK2Z-61264A10-A BK2Z-61264A10-A / Lower Striker

$40.62 $29.73
10 BK2Z-61264A10-A BK2Z-61264A10-A / Lower Striker

Striker

TRANSIT CONNECT VAN; LOWER

$40.62 $29.73
11 BK2Z-6132228-A BK2Z-6132228-A / Lower Striker Spacer

$22.50 $16.47
12 -W703283-S450 -W703283-S450 / Striker Screw

Lower Striker Screw

$1.00 $0.61
13 DT1Z-6143288-F DT1Z-6143288-F / Latch Assembly - Tailgate

Latch

W/ O POWER LOCKS

$233.33 $170.80
13 DT1Z-6143288-G DT1Z-6143288-G / Lock Actuator

Latch

W/ POWER LOCKS

$194.13 $142.11
13 DT1Z-6143288-G DT1Z-6143288-G / Lock Actuator

TRANSIT CONNECT VAN; CENTER; POWER DOOR LOCKING

$194.13 $142.11
13 DT1Z-6143288-F DT1Z-6143288-F / Latch Assembly - Tailgate

Lock Actuator

TRANSIT CONNECT VAN; CENTER; DOOR DEAD LOCKS

$233.33 $170.80
14 -W713733-S900 -W713733-S900 / Latch Assembly Screw

Latch Screw

$1.03 $0.62
15 DT1Z-61264A10-B DT1Z-61264A10-B / Lower Striker

Striker

TRANSIT CONNECT VAN; CENTER

$66.77 $48.87
16 DT1Z-6122078-A DT1Z-6122078-A / Striker Pad

$5.18 $3.79
17 -W703283-S450 -W703283-S450 / Striker Screw

$1.00 $0.61
18 DT1Z-6143286-A DT1Z-6143286-A / Lock Actuator

Upper Latch

W/ WINDOW

$112.98 $82.70
18 DT1Z-16758-E DT1Z-16758-E / Lock Actuator

Upper Latch

W/ O WINDOW

$42.88 $31.39
18 DT1Z-16758-E DT1Z-16758-E / Lock Actuator

TRANSIT CONNECT VAN; UPPER; W/ O FIXED REAR WINDOW

$42.88 $31.39
18 DT1Z-6143286-A DT1Z-6143286-A / Lock Actuator

TRANSIT CONNECT VAN; UPPER; W/ FIXED REAR WINDOW

$112.98 $82.70
19 -W701278-S303 -W701278-S303 / Upper Latch Screw

$1.00 $0.61
20 DT1Z-6132228-C DT1Z-6132228-C / Upper Latch Spacer

Upper Latch Spacer, LEFT

$26.33 $19.28
20 DT1Z-6132228-D DT1Z-6132228-D / Upper Latch Spacer

Upper Latch Spacer, RIGHT

$25.00 $18.30
21 DT1Z-61431B42-A DT1Z-61431B42-A / Cable

Cable, RIGHT

UPPER

$50.38 $36.88
21 DT1Z-61431B43-B DT1Z-61431B43-B / Cable

Cable, LEFT

UPPER

$42.05 $30.78
22 DT1Z-61266A46-A DT1Z-61266A46-A / Cable

LOWER

$39.10 $28.62
23 BK2Z-61431B15-B BK2Z-61431B15-B / Remote Control

$33.83 $24.77
24 -W706684-S442 -W706684-S442 / Remote Control Screw

$0.60 $0.37
25 BK2Z-6126680-A BK2Z-6126680-A / Release Handle

$20.62 $15.09
26 DT1Z-61264A10-A DT1Z-61264A10-A / Upper Striker

Upper Striker, LEFT

$55.40 $40.55
26 DT1Z-61264A10-A DT1Z-61264A10-A / Upper Striker

Upper Striker, RIGHT

$55.40 $40.55
26 DT1Z-61264A10-A DT1Z-61264A10-A / Upper Striker

Striker

TRANSIT CONNECT VAN; UPPER; FROM 10/ 27/ 13

$55.40 $40.55
27 -W701210-S442 -W701210-S442 / Upper Striker Screw

Upper Striker Screw, LEFT

$1.00 $0.61
27 -W701210-S442 -W701210-S442 / Upper Striker Screw

Upper Striker Screw, RIGHT

$1.00 $0.61
28 DT1Z-6132228-A DT1Z-6132228-A / Upper Plate

$41.90 $30.67
29 -W713297-S300 -W713297-S300 / Door Trim Panel Clip

Upper Plate Retainer

$1.39 $0.84
30 DT1Z-6106082-A DT1Z-6106082-A / Lock Cylinder

$26.42 $19.34
30 DT1Z-6106082-A DT1Z-6106082-A / Lock Cylinder

Lock

TRANSIT CONNECT VAN

$26.42 $19.34
