Engine/Oil Pan for 2016 Ford Transit-150

Select Oil Pan Part

2016 Ford Transit-150

Change vehicle

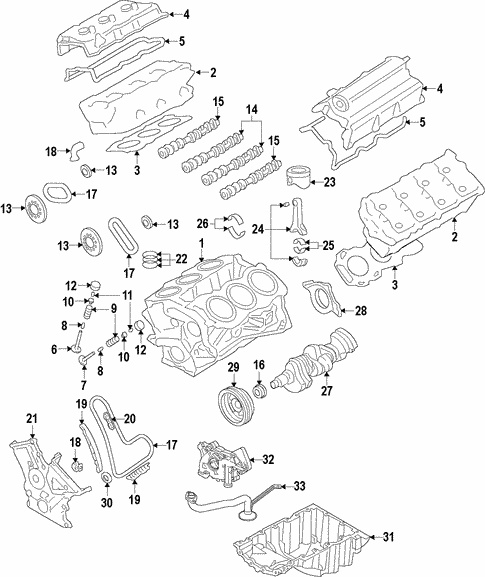

Engine/Oil Pan for 2016 Ford Transit-150 #1
No. Part # Part # / Description List Price Price
N/A DK4Z-6006-H DK4Z-6006-H / Engine 1

TRANSIT; W/ O CNG/ LPG PREP PKG.

$4,927.63 $4,508.78
N/A AT4Z-6M280-B AT4Z-6M280-B / Control Valve Solenoid

TRANSIT; INTAKE (GRAY CONNECTOR)

$59.95 $43.88
N/A 8L3Z-6A341-A 8L3Z-6A341-A / Thrust Washer

TRANSIT; UPPER

$8.76 $6.42
N/A CK4Z-6096-B CK4Z-6096-B / Motor Mount

Mount

TRANSIT

$49.00 $35.87
N/A DK4Z-6A642-A DK4Z-6A642-A / Oil Cooler

TRANSIT

$63.13 $46.21
N/A AT4Z-6701-A AT4Z-6701-A / Rear Main Seal

TRANSIT

$17.87 $13.08
N/A BR3Z-6010-M BR3Z-6010-M / Cylinder Block 1

TRANSIT

$1,128.48 $894.88
N/A BR3Z-6079-C BR3Z-6079-C / Valve Grind Gasket Kit

TRANSIT

$146.97 $107.58
N/A 9A5Z-6135-A 9A5Z-6135-A / Piston Pin

TRANSIT

$17.13 $11.49
N/A AT4Z-6M280-A AT4Z-6M280-A / Control Valve Solenoid

TRANSIT; EXHAUST (BLACK CONNECTOR)

$54.30 $39.75
N/A DK4Z-6006-J DK4Z-6006-J / Engine 1

TRANSIT; W/ CNG/ LPG PREP PKG.

$5,054.95 $4,625.28
N/A CK4Z-6068-B CK4Z-6068-B / Trans Mount

TRANSIT

$43.85 $32.10
N/A 8L3Z-6K302-A 8L3Z-6K302-A / Thrust Washer

TRANSIT; LOWER

$9.62 $7.04
1 DK4Z-6009-H DK4Z-6009-H / Short Block 1

TRANSIT; W/ O CNG/ LPG PREP PKG.

$1,800.21 $1,537.38
1 DK4Z-6009-J DK4Z-6009-J / Short Block 1

TRANSIT; W/ CNG/ LPG PREP PKG.

$1,957.30 $1,671.53
2 EK4Z-6049-D EK4Z-6049-D / Cylinder Head 1

TRANSIT; W/ CNG FUEL; LEFT

$569.18 $451.36
2 DG1Z-6049-A DG1Z-6049-A / Cylinder Head 1

TRANSIT; W/ O CNG FUEL; RIGHT

$641.63 $508.81
2 DG1Z-6049-C DG1Z-6049-C / Cylinder Head 1

TRANSIT; W/ O CNG FUEL; LEFT

$453.65 $359.74
2 EK4Z-6049-C EK4Z-6049-C / Cylinder Head 1

TRANSIT; W/ CNG FUEL; RIGHT

$568.03 $450.45
3 AU3Z-6051-E AU3Z-6051-E / Head Gasket

TRANSIT; RIGHT

$21.23 $15.54
3 AU3Z-6051-F AU3Z-6051-F / Head Gasket

TRANSIT; LEFT

$19.57 $14.32
4 BR3Z-6582-T BR3Z-6582-T / Valve Cover

TRANSIT; RIGHT

$64.73 $47.38
4 BR3Z-6582-R BR3Z-6582-R / Valve Cover

TRANSIT; LEFT

$67.33 $49.29
5 BR3Z-6584-B BR3Z-6584-B / Valve Cover Gasket

TRANSIT; RIGHT

$8.83 $6.47
5 BR3Z-6584-C BR3Z-6584-C / Valve Cover Gasket

TRANSIT; LEFT

$9.43 $6.91
6 EK4Z-6507-A EK4Z-6507-A / Intake Valve

TRANSIT; W/ CNG/ LPG PREP PKG.

$13.17 $9.64
6 7T4Z-6507-B 7T4Z-6507-B / Intake Valve

TRANSIT; W/ O CNG/ LPG PREP PKG.

$17.57 $12.86
7 AT4Z-6505-A AT4Z-6505-A / Exhaust Valve

TRANSIT

$19.12 $13.99
8 BL3Z-6571-A BL3Z-6571-A / Valve Seals

$2.84 $2.09
9 ET4Z-6513-A ET4Z-6513-A / Valve Springs

TRANSIT

$2.36 $1.59
10 7T4Z-6514-AA 7T4Z-6514-AA / Valve Spring Retainers

TRANSIT

$5.45 $3.66
11 1S7Z-6518-AA 1S7Z-6518-AA / Valve Keeper

TRANSIT

$4.75 $3.18
12 AT4Z-6500-AAA AT4Z-6500-AAA / Valve Lifters

TRANSIT

$11.93 $8.00
13 AT4Z-6C525-D AT4Z-6C525-D / Actuator

TRANSIT; EXHAUST; TO 11/ 23/ 16

$70.82 $51.84
13 AT4Z-6256-B AT4Z-6256-B / Actuator

TRANSIT; INTAKE

$167.62 $122.70
14 AT4Z-6250-F AT4Z-6250-F / Intake Camshaft

TRANSIT; RIGHT

$73.70 $53.95
14 AT4Z-6250-G AT4Z-6250-G / Intake Camshaft

TRANSIT; LEFT

$73.37 $53.70
15 AT4Z-6250-H AT4Z-6250-H / Exhaust Camshaft

TRANSIT; RIGHT

$73.10 $53.51
15 AT4Z-6250-J AT4Z-6250-J / Exhaust Camshaft

TRANSIT; LEFT

$73.37 $53.70
16 AT4Z-6306-A AT4Z-6306-A / Crankshaft Gear

TRANSIT

$31.30 $22.91
17 AT4Z-6268-C AT4Z-6268-C / Timing Chain

TRANSIT; PRIMARY CHAIN

$68.07 $49.82
17 AT4Z-6268-A AT4Z-6268-A / Timing Chain

TRANSIT; SECONDARY CHAIN

$35.57 $26.03
18 JL3Z-6L266-A JL3Z-6L266-A / Tensioner

TRANSIT; PRIMARY

$18.33 $13.42
18 AT4Z-6K254-A AT4Z-6K254-A / Tensioner

TRANSIT; SECONDARY

$36.75 $26.90
19 AT4Z-6B274-A AT4Z-6B274-A / Tensioner Arm

TRANSIT; LEFT

$24.45 $17.90
19 BL3Z-6K255-A BL3Z-6K255-A / Tensioner Arm

TRANSIT; RIGHT

$10.25 $7.50
20 AT4Z-6K297-A AT4Z-6K297-A / Chain Guide

TRANSIT; PRIMARY; RIGHT

$15.35 $11.24
20 AT4Z-6K297-D AT4Z-6K297-D / Chain Guide

TRANSIT; SECONDARY

$3.75 $2.75
20 AT4Z-6K297-B AT4Z-6K297-B / Chain Guide

TRANSIT; PRIMARY; LEFT

$15.42 $11.29
21 BR3Z-6019-H BR3Z-6019-H / Timing Cover

Front Cover

TRANSIT; TO 10/ 17/ 16

$148.33 $108.58
22 BA5Z-6148-D BA5Z-6148-D / Piston Rings

TRANSIT; .050MM/ .020 O/ S

$54.60 $39.97
22 BA5Z-6148-C BA5Z-6148-C / Piston Rings

TRANSIT; STANDARD

$16.75 $12.26
23 BA5Z-6108-L BA5Z-6108-L / Piston

TRANSIT; W/ O CNG/ LPG PREP PKG.; STANDARD

$32.62 $23.88
23 EK4Z-6108-B EK4Z-6108-B / Piston

TRANSIT; W/ CNG/ LPG PREP PKG.; STANDARD

$67.92 $49.72
23 EK4Z-6108-A EK4Z-6108-A / Piston

TRANSIT; W/ CNG/ LPG PREP PKG.; .050MM/ .020 O/ S

$124.23 $90.94
23 BA5Z-6108-M BA5Z-6108-M / Piston

TRANSIT; W/ O CNG/ LPG PREP PKG.; .050MM/ .020 O/ S

$57.30 $41.94
24 HL3Z-6200-B HL3Z-6200-B / Connecting Rod

TRANSIT

$18.83 $13.79
25 BL3Z-6211-EA BL3Z-6211-EA / Bearings

Bearing

TRANSIT; GRADE 2; TO 10/ 11/ 16

$4.23 $3.10
25 BL3Z-6211-FA BL3Z-6211-FA / Bearings

Bearing

TRANSIT; GRADE 3

$4.09 $2.99
25 BL3Z-6211-DA BL3Z-6211-DA / Bearings

Bearing

TRANSIT; GRADE 1

$4.23 $3.10
26 AT4Z-6333-E AT4Z-6333-E / Bearings

Bearing

TRANSIT; UPPER; GRADE 2; 0.25MM O/ S

$9.17 $6.71
26 AT4Z-6333-K AT4Z-6333-K / Bearings

Bearing

TRANSIT; LOWER; GRADE 1; 0.25MM O/ S

$9.92 $7.26
26 AT4Z-6333-C AT4Z-6333-C / Bearings

Bearing

TRANSIT; UPPER; GRADE 3; STANDARD

$7.37 $5.39
26 AT4Z-6333-L AT4Z-6333-L / Bearings

Bearing

TRANSIT; LOWER; GRADE 2; 0.25MM O/ S

$9.97 $7.30
26 AT4Z-6333-G AT4Z-6333-G / Bearings

Bearing

TRANSIT; LOWER; GRADE 1; STANDARD

$7.02 $5.14
26 AT4Z-6333-J AT4Z-6333-J / Bearings

Bearing

TRANSIT; LOWER; GRADE 3; STANDARD

$5.88 $4.31
26 AT4Z-6333-A AT4Z-6333-A / Bearings

Bearing

TRANSIT; UPPER; GRADE 1; STANDARD

$7.77 $5.69
26 AT4Z-6333-H AT4Z-6333-H / Bearings

Bearing

TRANSIT; LOWER; GRADE 2; STANDARD

$7.07 $5.17
26 AT4Z-6333-M AT4Z-6333-M / Bearings

Bearing

TRANSIT; LOWER; GRADE 3; 0.25MM O/ S

$9.88 $7.23
26 AT4Z-6333-B AT4Z-6333-B / Bearings

Bearing

TRANSIT; UPPER; GRADE 2; STANDARD

$7.42 $5.43
26 AT4Z-6333-F AT4Z-6333-F / Bearings

Bearing

TRANSIT; UPPER; GRADE 3; 0.25MM O/ S

$9.17 $6.71
26 AT4Z-6333-D AT4Z-6333-D / Bearings

Bearing

TRANSIT; UPPER; GRADE 1; 0.25MM O/ S

$9.17 $6.71
27 HL3Z-6303-E HL3Z-6303-E / Crankshaft

TRANSIT; FROM 10/ 10/ 16 TO 11/ 23/ 16

$187.47 $137.23
27 HL3Z-6303-C HL3Z-6303-C / Crankshaft

TRANSIT; TO 10/ 10/ 16

$164.12 $120.13
28 CG1Z-6335-A CG1Z-6335-A / Rear Main Seal Retainer

TRANSIT

$27.75 $20.31
29 HL3Z-6312-A HL3Z-6312-A / Crankshaft Pulley

Pulley

TRANSIT

$72.90 $53.36
30 XW4Z-6700-AA XW4Z-6700-AA / Seal

Front Crank Seal

TRANSIT

$14.80 $10.83
31 BR3Z-6675-RA BR3Z-6675-RA / Oil Pan

TRANSIT

$102.67 $75.15
32 GL3Z-6C639-A GL3Z-6C639-A / Oil Pump

TRANSIT

$56.24 $37.73
33 BR3Z-6622-B BR3Z-6622-B / Oil Pick-Up

TRANSIT

$43.25 $31.66
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
