Body/Wiper & Washer Components for 2016 Ford Transit-150

Select Wiper & Washer Components Part

2016 Ford Transit-150

Change vehicle

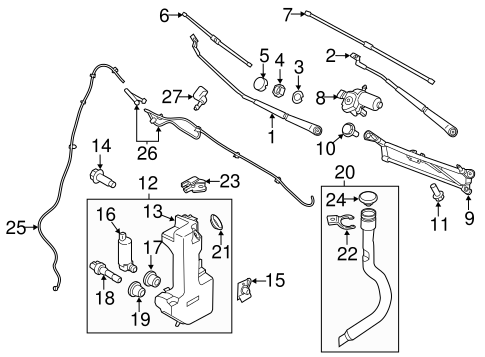

Body/Wiper & Washer Components for 2016 Ford Transit-150 #1
No. Part # Part # / Description List Price Price
1 BK3Z-17526-B BK3Z-17526-B / Wiper Arm

Wiper Arm, RIGHT

W/ MEDIUM, HIGH ROOF

$51.17 $37.45
1 EK4Z-17526-A EK4Z-17526-A / Wiper Arm

Wiper Arm, RIGHT

W/ LOW ROOF

$50.47 $36.94
1 EK4Z-17526-A EK4Z-17526-A / Wiper Arm

TRANSIT; RIGHT; MEDIUM ROOF LINE; FROM 6/ 9/ 14

$50.47 $36.94
1 BK3Z-17526-B BK3Z-17526-B / Wiper Arm

TRANSIT; RIGHT; HIGH ROOF LINE

$51.17 $37.45
2 EK4Z-17527-A EK4Z-17527-A / Wiper Arm

Wiper Arm, LEFT

W/ LOW ROOF

$43.08 $31.54
2 BK3Z-17526-A BK3Z-17526-A / Wiper Arm

Wiper Arm, LEFT

W/ MEDIUM, HIGH ROOF

$34.08 $24.95
2 BK3Z-17526-A BK3Z-17526-A / Wiper Arm

TRANSIT; LEFT; LOW ROOF LINE; TO 6/ 9/ 14

$34.08 $24.95
2 EK4Z-17527-A EK4Z-17527-A / Wiper Arm

TRANSIT; LEFT; LOW ROOF LINE; FROM 6/ 9/ 14

$43.08 $31.54
3 -W703211-S437M -W703211-S437M / Wiper Arm Washer

Wiper Arm Washer, RIGHT

$1.00 $0.61
3 -W703211-S437M -W703211-S437M / Wiper Arm Washer

Wiper Arm Washer, LEFT

$1.00 $0.61
4 -W520404-S442 -W520404-S442 / Wiper Arm Nut

Wiper Arm Nut, RIGHT

$1.06 $0.65
4 -W520404-S442 -W520404-S442 / Wiper Arm Nut

Wiper Arm Nut, LEFT

$1.06 $0.65
5 -W710461-S300 -W710461-S300 / Wiper Arm Cap

Cap, LEFT

$11.10 $6.77
5 -W710461-S300 -W710461-S300 / Wiper Arm Cap

Cap, RIGHT

$11.10 $6.77
6 EK4Z-17528-CA EK4Z-17528-CA / Wiper Blade

Wiper Blade, RIGHT

W/ LOW ROOF

$17.48 $13.86
6 BK3Z-17528-B BK3Z-17528-B / Wiper Blade

Wiper Blade, RIGHT

W/ MEDIUM, HIGH ROOF

$17.48 $13.86
6 BK3Z-17528-B BK3Z-17528-B / Wiper Blade

TRANSIT; RIGHT; LOW ROOF LINE; TO 6/ 9/ 14

$17.48 $13.86
6 EK4Z-17528-CA EK4Z-17528-CA / Wiper Blade

TRANSIT; RIGHT; LOW ROOF LINE; FROM 6/ 9/ 14

$17.48 $13.86
7 BK3Z17528A BK3Z17528A / Wiper Blade

Wiper Blade, LEFT

W/ MEDIUM, HIGH ROOF

- -
7 EK4Z-17528-AA EK4Z-17528-AA / Wiper Blade

Wiper Blade, LEFT

W/ LOW ROOF

$17.48 $13.86
7 EK4Z-17528-AA EK4Z-17528-AA / Wiper Blade

TRANSIT; LEFT; LOW ROOF LINE; FROM 6/ 9/ 14

$17.48 $13.86
8 EK4Z-17508-A EK4Z-17508-A / Wiper Motor1

TRANSIT; LOW ROOF LINE; FROM 6/ 9/ 14

$67.18 $45.08
8 CK4Z-17508-B CK4Z-17508-B / Wiper Motor1

TRANSIT; HIGH ROOF LINE

$68.13 $45.71
9 EK4Z-17566-A EK4Z-17566-A / Wiper Linkage

W/ LOW ROOF

$102.37 $74.93
9 CK4Z-17566-B CK4Z-17566-B / Wiper Linkage

W/ MEDIUM, HIGH ROOF

$102.37 $74.93
9 CK4Z-17566-B CK4Z-17566-B / Wiper Linkage

Wiper Transmission

TRANSIT; HIGH ROOF LINE

$102.37 $74.93
9 EK4Z-17566-A EK4Z-17566-A / Wiper Linkage

Wiper Transmission

TRANSIT; LOW ROOF LINE; FROM 6/ 9/ 14

$102.37 $74.93
10 -W700577-S442 -W700577-S442 / Wiper Linkage Bolt

M6X25

$1.00 $0.61
11 -W505253-S439 -W505253-S439 / Splash Shield Screw

Wiper Linkage Bolt

M6X16

$2.13 $1.29
12 BK2Z-17618-A BK2Z-17618-A / Washer Reservoir

TO 09/ 08/ 2015

$34.55 $25.29
12 CK4Z-17618-B CK4Z-17618-B / Washer Reservoir

FROM 09/ 09/ 2015

$48.22 $35.29
13 CK4Z-17618-A CK4Z-17618-A / Reservoir

TO 09/ 08/ 2015

$44.02 $32.22
14 -W710665-S442 -W710665-S442 / Reservoir Bolt

$1.00 $0.61
15 -W700528-S307 -W700528-S307 / Mud Guard U-Nut

Reservoir U-Nut

$1.60 $0.98
16 BK2Z-17664-A BK2Z-17664-A / Washer Pump

TRANSIT

$20.02 $13.43
17 CV6Z-17673-A CV6Z-17673-A / Washer Pump Seal

$3.53 $2.59
18 CV6Z-10D968-A CV6Z-10D968-A / Level Sensor

$12.20 $8.19
18 CV6Z-10D968-A CV6Z-10D968-A / Level Sensor

Fluid Level Sensor

TRANSIT

$12.20 $8.19
19 CV6Z-16K624-A CV6Z-16K624-A / Level Sensor Seal

$7.87 $5.76
20 BK3Z-17E785-A BK3Z-17E785-A / Filler Tube

$51.48 $37.69
21 4M5Z-17B610-A 4M5Z-17B610-A / Filler Tube Seal

$4.47 $3.27
22 BK2Z-7A229-A BK2Z-7A229-A / Filler Tube Bracket

$1.38 $1.01
23 BK3Z-7A229-A BK3Z-7A229-A / Filler Tube Retainer

$2.15 $1.57
24 BK2Z-17632-A BK2Z-17632-A / Reservoir Cap

$3.30 $2.42
25 CK4Z-17A605-B CK4Z-17A605-B / Lower Hose

$18.75 $12.58
26 BK3Z-17A605-B BK3Z-17A605-B / Upper Hose

$12.87 $8.64
27 CK4Z-17603-A CK4Z-17603-A / Washer Nozzle

Washer Nozzle, RIGHT

$6.78 $4.97
27 CK4Z-17603-A CK4Z-17603-A / Washer Nozzle

Washer Nozzle, LEFT

$6.78 $4.97
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
