Rear Suspension/Rear Suspension for 2016 Ford Taurus

Select Rear Suspension Part

2016 Ford Taurus

Change vehicle

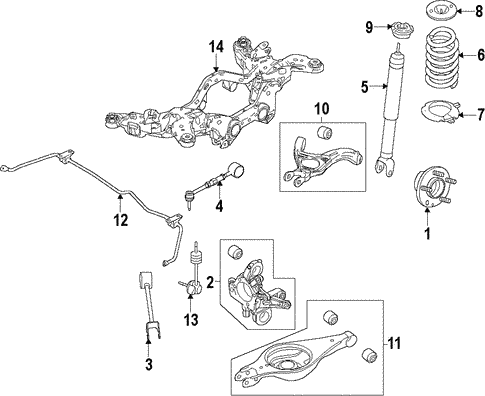

Rear Suspension/Rear Suspension for 2016 Ford Taurus #1
No. Part # Part # / Description List Price Price
1 BT4Z-1104-B BT4Z-1104-B / Hub Assembly

Hub & Bearing Assembly

TAURUS

$301.98 $202.63
2 AG1Z-5B759-C AG1Z-5B759-C / Knuckle & Bushing Assembly

Knuckle

TAURUS; LEFT

$450.22 $329.56
2 AG1Z-5B758-C AG1Z-5B758-C / Kit - Bushing Repair

Knuckle

TAURUS; RIGHT

$450.22 $329.56
3 AA8Z-5500-A AA8Z-5500-A / Track Bar

Trailing Arm

TAURUS; W/ O PAINTED CALIPERS

$80.68 $59.06
3 AA5Z-5500-A AA5Z-5500-A / Track Bar

Trailing Arm

TAURUS; W/ PAINTED CALIPERS

$80.70 $59.07
4 DG1Z-5A972-B DG1Z-5A972-B / Lateral Arm

Lateral Link

TAURUS; W/ PAINTED CALIPERS

$165.93 $121.46
4 DE9Z-5A972-C DE9Z-5A972-C / Lateral Link

TAURUS; W/ O PAINTED CALIPERS

$52.92 $38.74
5 DG1Z-18125-E DG1Z-18125-E / Shock Absorber

TAURUS; STANDARD DUTY; 2.0L

$128.45 $86.19
5 DG1Z-18125-A DG1Z-18125-A / Shock Absorber

TAURUS; STANDARD DUTY; 3.5L

$128.45 $86.19
5 DG1Z-18125-C DG1Z-18125-C / Shock Absorber

TAURUS; W/ PAINTED CALIPERS

$120.56 $69.92
5 DG1Z-18125-F DG1Z-18125-F / Shock Absorber

TAURUS; W/ O PAINTED CALIPERS

$120.42 $73.11
6 EG1Z-5560-E EG1Z-5560-E / Coil Spring

TAURUS; 2.0L; NON-PAINTED CALIPERS

$39.63 $29.01
6 DG1Z-5560-H DG1Z-5560-H / Coil Spring

TAURUS; 2.0L; BLACK CALIPERS

$47.90 $35.06
6 EG1Z-5560-B EG1Z-5560-B / Coil Spring

TAURUS; 2.0L; PAINTED CALIPERS

$40.00 $29.28
6 DG1Z-5560-D DG1Z-5560-D / Coil Spring

TAURUS; 2.0L; STANDARD DUTY CALIPERS

$67.00 $49.04
7 AA8Z-5586-B AA8Z-5586-B / Lower Spring Insulator

TAURUS

$2.73 $2.00
8 DB5Z*5586*A DB5Z*5586*A / Upper Spring Insulator

TAURUS

- -
9 CG1Z-18197-A CG1Z-18197-A / Shock Insulator

Shock Mount

TAURUS

$9.88 $7.23
10 DE9Z-5500-B DE9Z-5500-B / Upper Control Arm

TAURUS; LEFT

$184.05 $123.50
10 DE9Z-5500-A DE9Z-5500-A / Upper Control Arm

TAURUS; RIGHT

$184.05 $123.50
11 8A8Z-5A649-C 8A8Z-5A649-C / Lower Control Arm

TAURUS

$258.07 $188.90
12 DG1Z-5A772-F DG1Z-5A772-F / Stabilizer Bar

TAURUS; 2.0L; FROM 6/ 18/ 13

$58.88 $43.10
13 DG1Z-5K484-A DG1Z-5K484-A / Stabilizer Link

Link

TAURUS; RIGHT

$28.31 $19.00
13 DG1Z-5K484-B DG1Z-5K484-B / Stabilizer Link

Link

TAURUS; LEFT

$50.69 $34.01
14 DG1Z-5R003-E DG1Z-5R003-E / Suspension Cross-Member

Cross-member

TAURUS; AWD; TO 1/ 4/ 16

$954.82 $601.28
14 DG1Z-5R003-F DG1Z-5R003-F / Cross-Member

TAURUS; FWD

$941.12 $532.04
Rear Suspension/Rear Suspension for 2016 Ford Taurus #2
No. Part # Part # / Description List Price Price
1 AG1Z-5B759-C AG1Z-5B759-C / Knuckle & Bushing Assembly

Knuckle, LEFT

AWD

$450.22 $329.56
1 AG1Z-5B758-C AG1Z-5B758-C / Kit - Bushing Repair

Knuckle, RIGHT

AWD

$450.22 $329.56
5 -W714333-S439 -W714333-S439 / Knuckle Bolt

Knuckle Bolt, LEFT

AWD

$2.13 $1.29
5 -W714333-S439 -W714333-S439 / Knuckle Bolt

Knuckle Bolt, RIGHT

AWD

$2.13 $1.29
6 DE9Z-5500-A DE9Z-5500-A / Upper Control Arm

Upper Control Arm, RIGHT

AWD

$184.05 $123.50
6 DE9Z-5500-B DE9Z-5500-B / Upper Control Arm

Upper Control Arm, LEFT

AWD

$184.05 $123.50
8 -W715419-S439 -W715419-S439 / Upper Control Arm Bolt

Upper Control Arm Bolt, LEFT

AWD

$2.26 $1.38
8 -W715419-S439 -W715419-S439 / Upper Control Arm Bolt

Upper Control Arm Bolt, RIGHT

AWD

$2.26 $1.38
9 -W714175-S439 -W714175-S439 / Upper Control Arm Lock Nut

Upper Control Arm Lock Nut, LEFT

AWD

$2.13 $1.29
9 -W714175-S439 -W714175-S439 / Upper Control Arm Lock Nut

Upper Control Arm Lock Nut, RIGHT

AWD

$2.13 $1.29
10 -W715127-S439 -W715127-S439 / Control Arm Bolt

Upper Control Arm Mount Bolt, LEFT

AWD

$3.97 $2.42
10 -W715127-S439 -W715127-S439 / Control Arm Bolt

Upper Control Arm Mount Bolt, RIGHT

AWD

$3.97 $2.42
11 -W520517-S440 -W520517-S440 / Control Arm Nut

Upper Control Arm Nut, LEFT

AWD

$2.66 $1.62
11 -W520517-S440 -W520517-S440 / Control Arm Nut

Upper Control Arm Nut, RIGHT

AWD

$2.66 $1.62
12 CB5Z-5A638-A CB5Z-5A638-A / Mount Bushing

Mount Bushing, LEFT

AWD

$48.80 $35.72
12 CB5Z-5A638-A CB5Z-5A638-A / Mount Bushing

Mount Bushing, RIGHT

AWD

$48.80 $35.72
13 -W715493-S439 -W715493-S439 / Upper Control Arm Mount Bolt

Mount Bushing Upper Bolt, LEFT

AWD

$43.36 $26.45
13 -W715493-S439 -W715493-S439 / Upper Control Arm Mount Bolt

Mount Bushing Upper Bolt, RIGHT

AWD

$43.36 $26.45
14 -W715179-S439 -W715179-S439 / Lateral Arm Mount Bolt

Mount Bushing Lower Bolt, LEFT

AWD

$2.28 $1.39
14 -W715179-S439 -W715179-S439 / Lateral Arm Mount Bolt

Mount Bushing Lower Bolt, RIGHT

AWD

$2.28 $1.39
15 DG1Z-5A972-B DG1Z-5A972-B / Lateral Arm

Lateral Arm, RIGHT

AWD, FROM 9/ 20/ 10, W/ O BLACK CALIPER

$165.93 $121.46
15 DE9Z-5A972-C DE9Z-5A972-C / Lateral Link

Lateral Arm, RIGHT

AWD, FROM 9/ 20/ 10, W/ BLACK CALIPERS

$52.92 $38.74
15 DE9Z-5A972-C DE9Z-5A972-C / Lateral Link

Lateral Arm, LEFT

AWD, FROM 9/ 20/ 10, W/ BLACK CALIPERS

$52.92 $38.74
16 -W715179-S439 -W715179-S439 / Lateral Arm Mount Bolt

Lateral Arm Bolt, RIGHT

AWD

$2.28 $1.39
16 -W715179-S439 -W715179-S439 / Lateral Arm Mount Bolt

Lateral Arm Bolt, LEFT

AWD

$2.28 $1.39
17 -W520214-S440 -W520214-S440 / Control Arm Lock Nut

Lateral Arm Nut, RIGHT

AWD

$5.97 $3.65
17 -W520214-S440 -W520214-S440 / Control Arm Lock Nut

Lateral Arm Nut, LEFT

AWD

$5.97 $3.65
18 8A8Z-5A649-C 8A8Z-5A649-C / Lower Control Arm

Lower Control Arm, RIGHT

AWD

$258.07 $188.90
18 8A8Z-5A649-C 8A8Z-5A649-C / Lower Control Arm

Lower Control Arm, LEFT

AWD

$258.07 $188.90
19 8A8Z-5A638-B 8A8Z-5A638-B / Lower Control Arm Inner Bushing

Lower Control Arm Insulator, RIGHT

AWD

$13.60 $9.96
19 8A8Z-5A638-B 8A8Z-5A638-B / Lower Control Arm Inner Bushing

Lower Control Arm Insulator, LEFT

AWD

$13.60 $9.96
20 -W715127-S439 -W715127-S439 / Control Arm Bolt

Lower Control Arm Front Bolt, LEFT

AWD

$3.97 $2.42
20 -W715127-S439 -W715127-S439 / Control Arm Bolt

Lower Control Arm Front Bolt, RIGHT

AWD

$3.97 $2.42
21 -W520517-S440 -W520517-S440 / Control Arm Nut

Lower Control Arm Nut, LEFT

AWD

$2.66 $1.62
21 -W520517-S440 -W520517-S440 / Control Arm Nut

Lower Control Arm Nut, RIGHT

AWD

$2.66 $1.62
22 -W715127-S439 -W715127-S439 / Control Arm Bolt

Lower Control Arm Rear Bolt, RIGHT

AWD

$3.97 $2.42
22 -W715127-S439 -W715127-S439 / Control Arm Bolt

Lower Control Arm Rear Bolt, LEFT

AWD

$3.97 $2.42
23 AA8Z-5500-A AA8Z-5500-A / Track Bar

Track Bar, RIGHT

AWD, W/ O BLACK CALIPERS

$80.68 $59.06
23 AA5Z-5500-A AA5Z-5500-A / Track Bar

Track Bar, RIGHT

AWD, W/ BLACK CALIPERS

$80.70 $59.07
24 -W500747-S439 -W500747-S439 / Track Bar Front Bolt

Track Bar Front Bolt, LEFT

AWD

$4.24 $2.59
24 -W500747-S439 -W500747-S439 / Track Bar Front Bolt

Track Bar Front Bolt, RIGHT

AWD

$4.24 $2.59
25 -W707246-S440 -W707246-S440 / Track Bar Nut

Track Bar Nut, LEFT

AWD

$1.06 $0.65
25 -W707246-S440 -W707246-S440 / Track Bar Nut

Track Bar Nut, RIGHT

AWD

$1.06 $0.65
26 -W715419-S439 -W715419-S439 / Upper Control Arm Bolt

Track Bar Rear Bolt, RIGHT

AWD

$2.26 $1.38
26 -W715419-S439 -W715419-S439 / Upper Control Arm Bolt

Track Bar Rear Bolt, LEFT

AWD

$2.26 $1.38
No. Part # Part # / Description List Price Price
15 DG1Z-5A972-B DG1Z-5A972-B / Lateral Arm

Lateral Arm, LEFT

2WD, W/ O BLACK CALIPERS

$165.93 $121.46
23 AA5Z-5500-A AA5Z-5500-A / Track Bar

Track Bar, LEFT

2WD, W/ PAINTED CALIPERS

$80.70 $59.07
23 AA8Z-5500-A AA8Z-5500-A / Track Bar

Track Bar, LEFT

2WD, W/ O PAINTED CALIPERS

$80.68 $59.06
