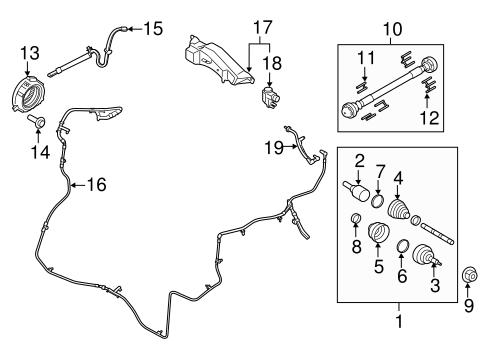

Front Suspension/Drive Axles for 2016 Ford F-150

Select Drive Axles Part

2016 Ford F-150

Change vehicle

No. Part # Part # / Description List Price Price
1 FL3Z-3A428-A FL3Z-3A428-A / Axle Assembly

Axle Assembly, RIGHT

4WD, TO 10/ 14/ 2015

$177.69 $119.23
1 FL3Z-3A427-A FL3Z-3A427-A / Axle Assembly

Axle Assembly, LEFT

4WD, TO 10/ 14/ 2015

$180.95 $121.41
1 GL3Z-3A427-A GL3Z-3A427-A / Axle Assembly

Axle Assembly, LEFT

4WD, FROM 10/ 15/ 2015

$176.71 $118.57
1 GL3Z-3A428-A GL3Z-3A428-A / Axle Assembly

Axle Assembly, RIGHT

4WD, FROM 10/ 15/ 2015

$171.31 $114.95
2 AL1Z-3B414-A AL1Z-3B414-A / Inner Joint Assembly

Inner Joint Assembly, RIGHT

4WD

$310.62 $208.42
2 AL1Z-3B414-B AL1Z-3B414-B / Inner Joint Assembly

Inner Joint Assembly, LEFT

4WD

$269.44 $180.79
3 AL1Z-3B436-A AL1Z-3B436-A / Outer Joint Assembly

Outer Joint Assembly, RIGHT

4WD

$294.80 $197.81
3 AL1Z-3B436-A AL1Z-3B436-A / Outer Joint Assembly

Outer Joint Assembly, LEFT

4WD

$294.80 $197.81
4 7L1Z-3A331-A 7L1Z-3A331-A / Inner Boot

Inner Boot, LEFT

4WD

$61.38 $44.93
4 7L1Z-3A331-A 7L1Z-3A331-A / Inner Boot

Inner Boot, RIGHT

4WD

$61.38 $44.93
5 2L1Z-3A331-AA 2L1Z-3A331-AA / Outer Boot

Outer Boot, RIGHT

4WD

$57.55 $38.61
5 2L1Z-3A331-AA 2L1Z-3A331-AA / Outer Boot

Outer Boot, LEFT

4WD

$57.55 $38.61
6 F65Z-3B478-DA F65Z-3B478-DA / Clamp

Clamp, RIGHT

4WD, OUTER, LARGE

$33.02 $24.17
6 F65Z-3B478-DA F65Z-3B478-DA / Clamp

Clamp, LEFT

4WD, OUTER, LARGE

$33.02 $24.17
7 7L1Z-3B478-A 7L1Z-3B478-A / Clamp

Clamp, LEFT

4WD, INNER, LARGE

$40.12 $29.37
7 7L1Z-3B478-A 7L1Z-3B478-A / Clamp

Clamp, RIGHT

4WD, INNER, LARGE

$40.12 $29.37
8 F65Z-3B478-CA F65Z-3B478-CA / Clamp

Clamp, RIGHT

4WD, SMALL

$25.15 $18.41
8 F65Z-3B478-CA F65Z-3B478-CA / Clamp

Clamp, LEFT

4WD, SMALL

$25.15 $18.41
9 -N802827-S100A -N802827-S100A / Axle Nut

Axle Nut, RIGHT

4WD

$1.00 $0.61
9 -N802827-S100A -N802827-S100A / Axle Nut

Axle Nut, LEFT

4WD

$1.00 $0.61
10 FL3Z-4A376-B FL3Z-4A376-B / Drive Shaft

4WD, W/ 5.0 LITER

$316.00 $250.59
11 7L1Z-4B496-C 7L1Z-4B496-C / Drive Shaft Retainer Screw

4WD, FRONT

$4.22 $3.09
12 7L1Z-4B496-D 7L1Z-4B496-D / Drive Shaft Retainer Screw

4WD, REAR

$2.78 $2.04
13 GL1Z-3C247-A GL1Z-3C247-A / Actuator

Actuator, RIGHT

4WD

$56.83 $41.60
13 GL1Z-3C247-A GL1Z-3C247-A / Actuator

Actuator, LEFT

4WD

$56.83 $41.60
14 -W710279-S439 -W710279-S439 / Actuator Screw

Actuator Screw, RIGHT

4WD

$5.18 $3.16
14 -W710279-S439 -W710279-S439 / Actuator Screw

Actuator Screw, LEFT

4WD

$5.18 $3.16
15 FL3Z-3C125-A FL3Z-3C125-A / Connector Tube

Connector Tube, LEFT

4WD, W/ O 3.5 LITER TURBO

$5.62 $4.11
15 FL3Z-3C125-A FL3Z-3C125-A / Connector Tube

Connector Tube, RIGHT

4WD, W/ O 3.5 LITER TURBO

$5.62 $4.11
16 FL3Z-7A785-A FL3Z-7A785-A / Vacuum Tube

4WD, W/ ELECTRIC T/ CASE

$25.27 $18.50
17 AL3Z-19A566-A AL3Z-19A566-A / Vacuum Reservoir

4WD

$40.03 $29.30
18 7L1Z-9H465-B 7L1Z-9H465-B / Solenoid

4WD

$21.77 $15.93
19 FL3Z-3A788-A FL3Z-3A788-A / Tube

4WD

$9.45 $6.92
