Electrical/Headlamp Components for 2016 Ford F-150

Select Headlamp Components Part

2016 Ford F-150

Change vehicle

No. Part # Part # / Description List Price Price
1 FL3Z-13008-A FL3Z-13008-A / Composite Headlamp 1

F150; RIGHT; HALOGEN HEADLAMP

- -
1 FL3Z-13008-B FL3Z-13008-B / Composite Headlamp 1

F150; LEFT; HALOGEN HEADLAMP

- -
1 FL3Z-13008-B FL3Z-13008-B / Composite Headlamp 1

Headlamp Assembly, LEFT

2015-17, W/ HALOGEN LAMPS

- -
1 FL3Z-13008-A FL3Z-13008-A / Composite Headlamp 1

Headlamp Assembly, RIGHT

2015-17, W/ HALOGEN LAMPS

- -
2 -W703277-S900 -W703277-S900 / Headlamp Assembly Screw

Headlamp Assembly Screw, RIGHT

2015-17, W/ HALOGEN LAMPS

$1.39 $0.84
5 -W505974-S307 -W505974-S307 / Bracket Screw

Bracket Screw, RIGHT

2015-17, W/ HALOGEN LAMPS

$1.06 $0.65
6 BE8Z-13N021-B BE8Z-13N021-B / High Beam Bulb

Headlamp Bulb

F150; W/ HALOGEN HEADLAMPS; 9005LL

$16.95 $12.41
6 BE8Z-13N021-B BE8Z-13N021-B / High Beam Bulb

Low Beam Bulb, LEFT

2015-17, W/ HALOGEN LAMPS

$16.95 $12.41
6 BE8Z-13N021-B BE8Z-13N021-B / High Beam Bulb

Low Beam Bulb, RIGHT

2015-17, W/ HALOGEN LAMPS

$16.95 $12.41
7 4S4Z-13N019-AA 4S4Z-13N019-AA / Low Beam Bulb Dust Cap

Low Beam Bulb Cap, LEFT

2015-17, W/ HALOGEN LAMPS

$8.82 $6.32
7 4S4Z-13N019-AA 4S4Z-13N019-AA / Low Beam Bulb Dust Cap

Low Beam Bulb Cap, RIGHT

2015-17, W/ HALOGEN LAMPS

$8.82 $6.32
8 2C5Z-13N021-AA 2C5Z-13N021-AA / Fog Lamp Bulb

Headlamp Bulb

F150; W/ HALOGEN HEADLAMPS; H11

$32.00 $23.42
8 2C5Z-13N021-AA 2C5Z-13N021-AA / Fog Lamp Bulb

High Beam Bulb, RIGHT

2015-17, W/ HALOGEN LAMPS

$32.00 $23.42
8 2C5Z-13N021-AA 2C5Z-13N021-AA / Fog Lamp Bulb

High Beam Bulb, LEFT

2015-17, W/ HALOGEN LAMPS

$32.00 $23.42
9 4S4Z-13N019-AA 4S4Z-13N019-AA / Low Beam Bulb Dust Cap

High Beam Bulb Cap, RIGHT

2015-17, W/ HALOGEN LAMPS

$8.82 $6.32
9 4S4Z-13N019-AA 4S4Z-13N019-AA / Low Beam Bulb Dust Cap

High Beam Bulb Cap, LEFT

2015-17, W/ HALOGEN LAMPS

$8.82 $6.32
10 DR3Z-13466-A DR3Z-13466-A / Signal Lamp Bulb

Exterior Bulbs

F150; W/ HALOGEN HEADLAMPS; FRONT TURN SIGNAL/ PARK

$11.88 $8.70
10 DR3Z-13466-A DR3Z-13466-A / Signal Lamp Bulb

Signal Bulb, RIGHT

2015-17, W/ HALOGEN LAMPS

$11.88 $8.70
10 DR3Z-13466-A DR3Z-13466-A / Signal Lamp Bulb

Signal Bulb, LEFT

2015-17, W/ HALOGEN LAMPS

$11.88 $8.70
11 9E5Z-13411-B 9E5Z-13411-B / Socket

Signal Bulb Socket, LEFT

2015-17, W/ HALOGEN LAMPS

$31.62 $23.14
11 9E5Z-13411-B 9E5Z-13411-B / Socket

Signal Bulb Socket, RIGHT

2015-17, W/ HALOGEN LAMPS

$31.62 $23.14
12 E5RY-13466-B E5RY-13466-B / Bulb

Exterior Bulbs

F150; W/ HALOGEN HEADLAMPS; FRONT SIDEMARKER

$3.11 $2.28
12 E5RY-13466-B E5RY-13466-B / Bulb

Marker Lamp Bulb, LEFT

2015-17, W/ HALOGEN LAMPS

$3.11 $2.28
12 E5RY-13466-B E5RY-13466-B / Bulb

Marker Lamp Bulb, RIGHT

2015-17, W/ HALOGEN LAMPS

$3.11 $2.28
13 BB5Z-13411-A BB5Z-13411-A / Marker Lamp Bulb Socket

Marker Lamp Bulb Socket, LEFT

2015-17, W/ HALOGEN LAMPS

$7.25 $5.31
13 BB5Z-13411-A BB5Z-13411-A / Marker Lamp Bulb Socket

Marker Lamp Bulb Socket, RIGHT

2015-17, W/ HALOGEN LAMPS

$7.25 $5.31
No. Part # Part # / Description List Price Price
1 FL3Z-13008-K FL3Z-13008-K / Headlamp Assembly 1

Composite Headlamp

F150; LEFT; LED HEADLAMP

$1,029.73 $1,005.01
1 FL3Z-13008-J FL3Z-13008-J / Headlamp Assembly 1

Composite Headlamp

F150; RIGHT; LED HEADLAMP

$1,029.73 $1,005.01
1 FL3Z-13008-K FL3Z-13008-K / Headlamp Assembly 1

Headlamp Assembly, LEFT

2015-17, W/ LED HEADLAMPS FROM 08/ 07/ 2015, W/ O AUTO HIGH BEAMS

$1,029.73 $1,005.01
1 FL3Z-13008-J FL3Z-13008-J / Headlamp Assembly 1

Headlamp Assembly, RIGHT

2015-17, W/ LED HEADLAMPS FROM 08/ 07/ 2015, W/ O AUTO HIGH BEAMS

$1,029.73 $1,005.01
3 -W712160-S300 -W712160-S300 / Headlamp Assembly Nut

Headlamp Assembly Retainer Nut, LEFT

2015-17, W/ LED HEADLAMPS FROM 08/ 07/ 2015

$2.08 $1.27
3 -W712160-S300 -W712160-S300 / Headlamp Assembly Nut

Headlamp Assembly Retainer Nut, RIGHT

2015-17, W/ LED HEADLAMPS FROM 08/ 07/ 2015

$2.08 $1.27
4 FL3Z-17C973-A FL3Z-17C973-A / Bracket

Bracket, LEFT

2015-17, W/ LED HEADLAMPS FROM 08/ 07/ 2015

$8.57 $6.27
5 -W505974-S307 -W505974-S307 / Bracket Screw

Bracket Screw, LEFT

2015-17, W/ LED HEADLAMPS FROM 08/ 07/ 2015

$1.06 $0.65
6 FL3Z-13C170-A FL3Z-13C170-A / Control Module

Ballast, RIGHT

2015-17, W/ LED HEADLAMPS FROM 08/ 07/ 2015

$200.53 $110.09
7 -W715133-S900 -W715133-S900 / Ballast Screw

Ballast Screw, LEFT

2015-17, W/ LED HEADLAMPS FROM 08/ 07/ 2015

$4.00 $2.44
Electrical/Headlamp Components for 2016 Ford F-150 #3
No. Part # Part # / Description List Price Price
1 FL3Z-10849-BAA FL3Z-10849-BAA / Cluster Assembly 1

2015-17, XL, SSV, W/ DISPLAY, W/ O SELECT SHIFT

$587.28 $465.71
1 FL3Z-10849-CJA FL3Z-10849-CJA / Cluster Assembly 1

2015-17, LARIAT, KING RANCH, PLATINUM, LARIAT, KING RANCH, PLATINUM

$782.32 $620.38
1 FL3Z-10849-AGA FL3Z-10849-AGA / Cluster Assembly 1

2015-17, XL, SSV, W/ O DISPLAY, W/ SELECT SHIFT

$487.08 $386.25
1 FL3Z-10849-AAA FL3Z-10849-AAA / Cluster Assembly 1

2015-17, XL, SSV, W/ O DISPLAY, W/ O SELECT SHIFT

$477.98 $379.04
1 FL3Z-10849-BGA FL3Z-10849-BGA / Cluster Assembly 1

2015-17, XL, SSV, W/ DISPLAY, W/ SELECT SHIFT

$587.28 $465.71
1 GL3Z-10849-CGF GL3Z-10849-CGF / Cluster Assembly 1

2015-17, LARIAT, KING RANCH, PLATINUM, LIMITED

$847.89 $672.38
2 -W707628-S424 -W707628-S424 / Passenger Air Bag Retainer Screw

Cluster Assembly Screw

2015-17

$1.39 $0.84
3 -W705093-S424 -W705093-S424 / Cluster Assembly Nut

2015-17

$1.16 $0.71
4 FL3Z-11654-AA FL3Z-11654-AA / Headlamp Switch

2015-17, W/ O AUTO LAMP, W/ O FOG LAMPS

$34.71 $23.29
4 FL3Z-11654-DA FL3Z-11654-DA / Headlamp Switch

2015-17, W/ O AUTO LAMP, W/ FOG LAMPS

$39.33 $26.39
4 FL3Z-11654-BA FL3Z-11654-BA / Headlamp Switch

2015-17, W/ AUTO LAMP, W/ FOG LAMPS

$38.96 $26.14
4 FL3Z-11654-CA FL3Z-11654-CA / Headlamp Switch

2015-17, W/ AUTO LAMP, W/ O FOG LAMPS

$34.71 $23.29
5 FL3Z-2B623-BA FL3Z-2B623-BA / Prk Brake Switch

Switch

ELECT. PARK BRAKE SWITCH; F150

$22.55 $15.13
5 FL3Z-2B623-BA FL3Z-2B623-BA / Prk Brake Switch

2015-17

$22.55 $15.13
6 FL3Z-9G604-BA FL3Z-9G604-BA / Switch

F150

$11.27 $8.25
6 FL3Z-9G604-BA FL3Z-9G604-BA / Switch

Pedal Adj Switch

2015-17

$11.27 $8.25
7 FL3Z-13D730-EA FL3Z-13D730-EA / Switch Assembly

2015-17, TRANS SELECT

$16.78 $11.26
8 GL3Z-2C006-CB GL3Z-2C006-CB / Switch Assembly

2015-17, TRAILER BRAKE

$133.63 $97.82
9 FL3Z-14B166-AA FL3Z-14B166-AA / Switch Assembly

2015-17, TRANSFER CASE, W/ O LIMITED SLIP

$38.96 $26.14
9 FL3Z-14B166-DA FL3Z-14B166-DA / Switch Assembly

2015-17, TRANSFER CASE, W/ 4WD

$41.38 $27.77
9 FL3Z-14B166-BA FL3Z-14B166-BA / Switch Assembly

2015-17, TRANSFER CASE, W/ LIMITED SLIP

$40.75 $27.34
10 DG9Z-10B776-AB DG9Z-10B776-AB / Start Button

Power Switch

F150

$20.50 $15.01
10 DG9Z-10B776-AB DG9Z-10B776-AB / Start Button

2015-17

$20.50 $15.01
11 FL3Z-19G468-A FL3Z-19G468-A / Module

2015-17, W/ ADAPTIVE CRUISE

$73.30 $62.60
12 DG9Z-13A018-E DG9Z-13A018-E / Sun Load Sensor

Sentinel Sensor

F150; W/ ATC

$40.85 $27.41
12 DG9Z-13A018-B DG9Z-13A018-B / Sun Load Sensor

Sentinel Sensor

F150; W/ O ATC

$7.87 $5.28
12 DG9Z-13A018-B DG9Z-13A018-B / Sun Load Sensor

2015-17, W/ O DUAL AC

$7.87 $5.28
12 DG9Z-13A018-E DG9Z-13A018-E / Sun Load Sensor

2015-17, W/ DUAL AC

$40.85 $27.41
13 6R3Z-19N236-A 6R3Z-19N236-A / Power Outlet

2015-17

$33.77 $24.72
14 BB5Z-19A487-BA BB5Z-19A487-BA / Power Outlet Cap

2015-17

$10.14 $8.66
15 FL3Z-19A487-C FL3Z-19A487-C / Cover

2015-17

$24.36 $20.80
16 FL3Z-14A411-F FL3Z-14A411-F / Courtesy Lamp

2015-17, # 1

$18.52 $13.55
17 FL3Z-14A318-Q FL3Z-14A318-Q / Courtesy Lamp

2015-17, # 2

$22.92 $16.78
18 FL3Z-14A318-R FL3Z-14A318-R / Courtesy Lamp

2015-17, # 3

$13.07 $9.56
19 FL3Z-14A318-S FL3Z-14A318-S / Courtesy Lamp

2015-17, # 4

$29.05 $21.26
20 FL3Z-14A301-B FL3Z-14A301-B / Lamp

2015-17

$4.22 $3.09
21 GL3Z18842AAB GL3Z18842AAB / Heater Control

2015-17, W/ DUAL AC, W/ O HEATED BACK WINDOW, W/ O HEATED SEATS

- -
21 GL3Z18842AB GL3Z18842AB / Heater Control

2015-17, W/ DUAL AC, W/ HEATED BACK WINDOW, W/ HEATED SEATS

- -
21 GL3Z18842BBA GL3Z18842BBA / Heater Control

2015-17, W/ MANUAL AC, W/ O HEATED BACK WINDOW, W/ HEATED SEATS

- -
21 GL3Z18842BRA GL3Z18842BRA / Heater Control

2015-17, W/ MANUAL AC, W/ HEATED BACK WINDOW, W/ HEATED SEATS

- -
21 GL3Z18842ADA GL3Z18842ADA / Heater Control

2015-17, W/ DUAL AC, W/ HEATED BACK WINDOW, W/ O HEATED SEATS

- -
21 GL3Z18842BUA GL3Z18842BUA / Heater Control

2015-17, W/ MANUAL AC, W/ O HEATED BACK WINDOW, W/ O HEATED SEATS

- -
21 GL3Z18842AC GL3Z18842AC / Heater Control

2015-17, W/ DUAL AC, W/ O HEATED BACK WINDOW, W/ HEATED SEATS

- -
21 GL3Z18842BCA GL3Z18842BCA / Heater Control

2015-17, W/ MANUAL AC, W/ HEATED BACK WINDOW, W/ O HEATED SEATS

- -
22 FR3Z-19C734-A FR3Z-19C734-A / Temp Sensor

2015-17, LOWER

$18.04 $12.10
23 FL3Z-19E616-D FL3Z-19E616-D / In-Car Sensor

Temp Sensor

2015-17, UPPER

$45.40 $30.46
24 E1GZ-19C734-A E1GZ-19C734-A / Temp Sensor

In-Car Temp Sensor

F150; UPPER

$6.04 $4.05
24 E1GZ-19C734-A E1GZ-19C734-A / Temp Sensor

2015-17, OUTER, W/ DUAL AC

$6.04 $4.05

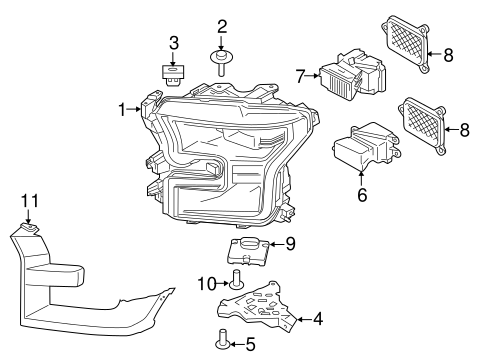

No. Part # Part # / Description List Price Price
2 -W703277-S900 -W703277-S900 / Headlamp Assembly Screw

Headlamp Assembly Screw, LEFT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015

$1.39 $0.84
4 FL3Z-17C972-A FL3Z-17C972-A / Bracket

Bracket, RIGHT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015

$8.57 $6.27
6 FL3Z-13C626-A FL3Z-13C626-A / Led Lamp

Led Lamp, RIGHT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015, LOW BEAM

$281.47 $206.03
6 FL3Z-13C626-C FL3Z-13C626-C / Led Lamp

Led Lamp, LEFT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015, LOW BEAM

$281.47 $206.03
7 FL3Z-13C626-D FL3Z-13C626-D / Led Lamp

Led Lamp, LEFT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015, HIGH BEAM

$274.63 $201.03
7 FL3Z-13C626-B FL3Z-13C626-B / Led Lamp

Led Lamp, RIGHT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015, HIGH BEAM

$274.63 $201.03
8 FL3Z-13K046-A FL3Z-13K046-A / Led Lamp Cover

Led Lamp Cover, LEFT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015

$11.00 $8.05
8 FL3Z-13K046-A FL3Z-13K046-A / Led Lamp Cover

Led Lamp Cover, RIGHT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015

$11.00 $8.05
9 FL3Z-13C170-A FL3Z-13C170-A / Control Module

Module

LED BALLAST MODULE; F150

$200.53 $110.09
9 FL3Z-13C170-A FL3Z-13C170-A / Control Module

Ballast, LEFT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015

$200.53 $110.09
10 -W715133-S900 -W715133-S900 / Ballast Screw

Ballast Screw, RIGHT

2015-17, W/ LED HEADLAMPS TO 08/ 06/ 2015

$4.00 $2.44
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
