HVAC/Condenser, Compressor & Lines for 2015 Ford Transit-350 HD

Select Condenser, Compressor & Lines Part

2015 Ford Transit-350 HD

Change vehicle

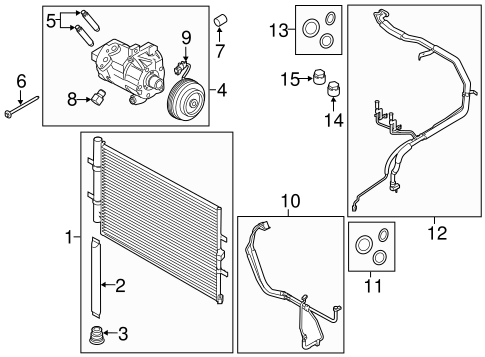

No. Part # Part # / Description List Price Price
1 CK4Z-19712-B CK4Z-19712-B / Condenser

TRANSIT

$210.64 $141.34
2 BK2Z-19C836-A BK2Z-19C836-A / Dehydrator

Drier

TRANSIT

$42.69 $28.65
2 BK2Z-19C836-A BK2Z-19C836-A / Dehydrator

3.5, 3.7 LITER

$42.69 $28.65
3 BK2Z-00933-A BK2Z-00933-A / Dehydrator Plug

3.5, 3.7 LITER

$22.00 $13.42
4 CL3Z-19703-A CL3Z-19703-A / Compressor Assembly

Compressor

TRANSIT; 3.5L

$453.36 $304.21
4 CL3Z-19703-A CL3Z-19703-A / Compressor Assembly

3.5, 3.7 LITER

$453.36 $304.21
5 -W701890-S439 -W701890-S439 / Stud

Compressor Assembly Stud

3.5, 3.7 LITER

$5.84 $3.56
6 -W704750-S437 -W704750-S437 / Compressor Assembly Mount Bolt

3.5, 3.7 LITER

$9.71 $5.92
7 -W704711-S300 -W704711-S300 / Compressor Assembly Spacer

3.5, 3.7 LITER

$2.13 $1.29
8 8S4Z-19D644-AA 8S4Z-19D644-AA / Pressure Relief Valve

Pressure Valve

3.5, 3.7 LITER

$12.96 $8.70
9 CL3Z-19D784-B CL3Z-19D784-B / Clutch & Pulley

Clutch

TRANSIT; 3.5L

$197.40 $132.46
9 CL3Z-19D784-B CL3Z-19D784-B / Clutch & Pulley

Clutch Assembly

3.5, 3.7 LITER

$197.40 $132.46
10 CK4Z-19D734-G CK4Z-19D734-G / Tube Assembly

Suction & Discharge Hose Assembly

TRANSIT; 3.5L; CONN. TO COMP./ CONDENSER; W/ REAR AC; TO 1/ 28/ 16

$224.20 $150.44
10 CK4Z-19D734-F CK4Z-19D734-F / Tube Assembly

Suction & Discharge Hose Assembly

TRANSIT; 3.5L; CONN. TO COMP./ CONDENSER; W/ O REAR AC

$199.29 $133.72
10 CK4Z-19D734-G CK4Z-19D734-G / Tube Assembly

Front AC Line

3.5, 3.7 LITER, W/ REAR AC

$224.20 $150.44
10 CK4Z-19D734-F CK4Z-19D734-F / Tube Assembly

Front AC Line

3.5, 3.7 LITER, W/ O REAR AC

$199.29 $133.72
11 6E5Z-19B596-A 6E5Z-19B596-A / AC Line Seal Kit

Front AC Line Seal Kit

3.5, 3.7 LITER

$35.60 $23.89
12 BT4Z-19D594-A BT4Z-19D594-A / Switch

Pressure Switch

3.5, 3.7 LITER

$48.58 $32.60
13 CK4Z-19972-B CK4Z-19972-B / Front AC Tube

3.5, 3.7 LITER

$174.91 $117.36
14 CK4Z-19D742-D CK4Z-19D742-D / AC Tube

3.5, 3.7 LITER

$175.65 $117.86
15 BK3Z-19A834-AG BK3Z-19A834-AG / Suction & Discharge Hose Assembly

TRANSIT; 3.5L; FROM EVAPORATOR TO CONN.; W/ REAR AC; TO 10/ 18/ 16

$208.87 $140.15
15 BK3Z-19A834-AF BK3Z-19A834-AF / Suction & Discharge Hose Assembly

TRANSIT; 3.5L; FROM EVAPORATOR TO CONN.; W/ O REAR AC; TO 1/ 13/ 17

$196.82 $132.07
15 BK3Z-19A834-AG BK3Z-19A834-AG / Suction & Discharge Hose Assembly

Rear AC Line

3.5, 3.7 LITER, W/ REAR AC, TO 10/ 17/ 2016

$208.87 $140.15
15 BK3Z-19A834-AF BK3Z-19A834-AF / Suction & Discharge Hose Assembly

Rear AC Line

3.5, 3.7 LITER, W/ O REAR AC

$196.82 $132.07
16 6E5Z-19B596-A 6E5Z-19B596-A / AC Line Seal Kit

Rear AC Line Seal Kit

3.5, 3.7 LITER

$35.60 $23.89
17 6L1Z-19D701-B 6L1Z-19D701-B / Valve

Fill Valve

3.5, 3.7 LITER

$5.56 $3.73
18 DS7Z-19D701-A DS7Z-19D701-A / Valve

3.5, 3.7 LITER

$4.42 $2.96
19 DS7Z-19D702-A DS7Z-19D702-A / Cap

Valve Cap

3.5, 3.7 LITER, # 1

$15.85 $10.64
20 DS7Z-19D702-B DS7Z-19D702-B / Valve Cap

3.5, 3.7 LITER, # 2

$2.98 $2.00

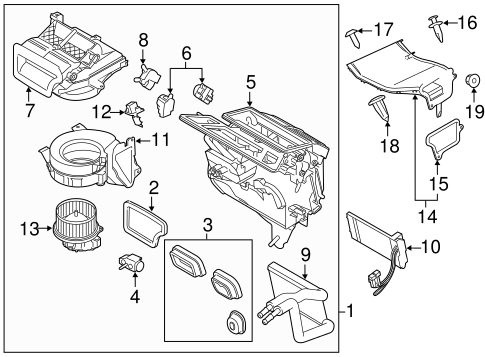

No. Part # Part # / Description List Price Price
1 CK4Z-19B555-R CK4Z-19B555-R / Evaporator And Housing Assembly

Evaporator Core

TRANSIT; 3.5L

$848.00 $620.74
1 CK4Z-19B555-R CK4Z-19B555-R / Evaporator And Housing Assembly

AC & Heater Assembly

3.5, 3.7 LITER, TO 02/ 01/ 2016

$848.00 $620.74
2 CK4Z-18A638-A CK4Z-18A638-A / AC & Heater Assembly Gasket

$35.23 $25.79
3 CK4Z-19W700-B CK4Z-19W700-B / AC & Heater Assembly Seal Kit

$61.60 $45.09
4 CK4Z-19849-B CK4Z-19849-B / Expansion Valve

3.5, 3.7 LITER

$45.64 $30.62
5 CK4Z-18A484-D CK4Z-18A484-D / Housing - Heater Blower

Evaporator Case

$455.13 $333.16
6 AV6Z-19E616-A AV6Z-19E616-A / Adjust Motor

$45.05 $30.23
7 BK2Z-19E671-A BK2Z-19E671-A / Air Inlet

$141.68 $103.71
8 CV6Z-18731-A CV6Z-18731-A / Actuator

$11.30 $8.27
9 CK4Z-18476-A CK4Z-18476-A / Heater Core

$140.82 $94.49
10 BK2Z-18K463-B BK2Z-18K463-B / Auxiliary Heater

$163.05 $119.35
11 BK2Z-18471-A BK2Z-18471-A / Blower Case

$131.93 $96.58
12 AV1Z-18591-A AV1Z-18591-A / Blower Motor Resistor

TRANSIT

$37.33 $27.33
12 AV1Z-18591-A AV1Z-18591-A / Blower Motor Resistor

Controller

$37.33 $27.33
13 BK2Z-19805-H BK2Z-19805-H / Blower Assembly

Blower Motor

$107.22 $71.94
14 CK4Z-19A618-B CK4Z-19A618-B / Inlet Duct

$97.60 $71.44
15 BK2Z-18A491-A BK2Z-18A491-A / Inlet Duct Gasket

$7.40 $5.42
16 -W703243-S300 -W703243-S300 / Cowl Grille Rivet

Inlet Duct Rivet

$1.06 $0.65
17 -W502670-S307 -W502670-S307 / Handle, Inside Screw

Inlet Duct Screw

$1.24 $0.76
18 -W706436-S300 -W706436-S300 / Tail Lamp Assembly Nut

Inlet Duct Nut

$1.06 $0.65
19 -W520101-S437 -W520101-S437 / Inlet Duct Retainer Nut

$1.00 $0.61
