Body/Bumper & Components - Rear for 2015 Ford Transit-350 HD

Select Bumper & Components - Rear Part

2015 Ford Transit-350 HD

Change vehicle

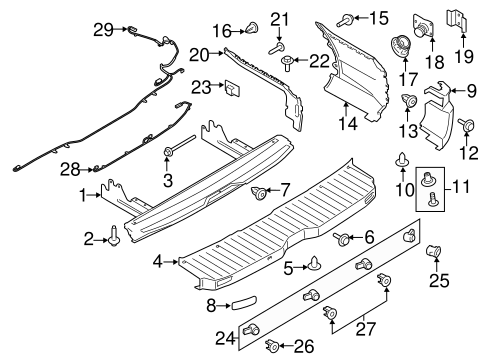

Body/Bumper & Components - Rear for 2015 Ford Transit-350 HD #1
No. Part # Part # / Description List Price Price
1 CK4Z-17906-G CK4Z-17906-G / Impact Bar

W/ MEDIUM, HIGH ROOF

$270.07 $197.69
1 CK4Z-17906-F CK4Z-17906-F / Impact Bar

W/ LOW ROOF

$491.73 $449.94
2 -W709055-S442 -W709055-S442 / Impact Bar Screw

$1.06 $0.65
3 -W705235-S442 -W705235-S442 / Impact Bar Bolt

$2.13 $1.29
4 CK4Z-17C829-AA CK4Z-17C829-AA / Bumper Cover

W/ LOW ROOF

$160.25 $117.30
4 CK4Z-17C829-CA CK4Z-17C829-CA / Bumper Cover

W/ MEDIUM, HIGH ROOF, W/ MEDIUM, HIGH ROOF

$152.23 $111.43
5 -W701259-S300 -W701259-S300 / Fender Liner Retainer Clip

Bumper Cover Clip

$1.39 $0.84
6 -W708591-S450B -W708591-S450B / Side Extension Screw

Bumper Cover Screw

$1.06 $0.65
7 CV6Z-17C756-B CV6Z-17C756-B / End Cover Retainer

Bumper Cover Retainer

$1.38 $0.84
8 BK2Z-13A565-A BK2Z-13A565-A / Reflector

Reflector, LEFT

$51.15 $37.44
8 BK2Z-13A565-B BK2Z-13A565-B / Reflector

Reflector, RIGHT

$51.15 $37.44
9 CK4Z-17F774-DB CK4Z-17F774-DB / End Cap

End Cap, LEFT

$82.50 $60.39
9 CK4Z-17F774-DA CK4Z-17F774-DA / End Cap

End Cap, RIGHT

$82.50 $60.39
10 -W701259-S300 -W701259-S300 / Fender Liner Retainer Clip

End Cap Clip, RIGHT

$1.39 $0.84
10 -W701259-S300 -W701259-S300 / Fender Liner Retainer Clip

End Cap Clip, LEFT

$1.39 $0.84
11 -W711712-S300 -W711712-S300 / End Cap Rivet

End Cap Rivet, LEFT

$1.39 $0.84
11 -W711712-S300 -W711712-S300 / End Cap Rivet

End Cap Rivet, RIGHT

$1.39 $0.84
12 -W708591-S450B -W708591-S450B / Side Extension Screw

End Cap Screw, LEFT

$1.06 $0.65
12 -W708591-S450B -W708591-S450B / Side Extension Screw

End Cap Screw, RIGHT

$1.06 $0.65
13 CV6Z-17C756-B CV6Z-17C756-B / End Cover Retainer

End Cap Retainer, RIGHT

$1.38 $0.84
13 CV6Z-17C756-B CV6Z-17C756-B / End Cover Retainer

End Cap Retainer, LEFT

$1.38 $0.84
14 CK4Z-17F774-CA CK4Z-17F774-CA / Side Extension

Side Extension, RIGHT

W/ EXTENDED FRAME, W/ EXTENDED FRAME

$294.10 $215.28
14 CK4Z-17F774-FA CK4Z-17F774-FA / Side Extension

Side Extension, RIGHT

W/ O EXTENDED FRAME, W/ O EXTENDED FRAME

$139.55 $102.15
14 CK4Z-17F774-CB CK4Z-17F774-CB / Side Extension

Side Extension, LEFT

W/ EXTENDED FRAME, W/ EXTENDED FRAME

$287.60 $210.52
14 CK4Z-17F774-FB CK4Z-17F774-FB / Side Extension

Side Extension, LEFT

W/ O EXTENDED FRAME, W/ O EXTENDED FRAME

$139.55 $102.15
15 -W708591-S450B -W708591-S450B / Side Extension Screw

Side Extension Screw, RIGHT

$1.06 $0.65
15 -W708591-S450B -W708591-S450B / Side Extension Screw

Side Extension Screw, LEFT

$1.06 $0.65
16 CV6Z-17C756-B CV6Z-17C756-B / End Cover Retainer

Side Extension Retainer, RIGHT

$1.38 $0.84
16 CV6Z-17C756-B CV6Z-17C756-B / End Cover Retainer

Side Extension Retainer, LEFT

$1.38 $0.84
17 BK3Z-16758-C BK3Z-16758-C / Bumper

Bumper, RIGHT

$23.65 $17.31
17 BK3Z-16758-C BK3Z-16758-C / Bumper

Bumper, LEFT

$23.65 $17.31
18 BK3Z-61247A64-C BK3Z-61247A64-C / Bumper Outer Support

Bumper Outer Support, LEFT

$47.30 $34.62
18 BK3Z-61247A64-C BK3Z-61247A64-C / Bumper Outer Support

Bumper Outer Support, RIGHT

$47.30 $34.62
19 BK3Z-61247A64-D BK3Z-61247A64-D / Bumper Inner Support

Bumper Inner Support, LEFT

$15.20 $11.13
19 BK3Z-61247A64-D BK3Z-61247A64-D / Bumper Inner Support

Bumper Inner Support, RIGHT

$15.20 $11.13
20 CK4Z-17787-A CK4Z-17787-A / Support Bracket

Support Bracket, RIGHT

W/ O EXTENDED FRAME

$56.87 $41.63
20 CK4Z-17788-B CK4Z-17788-B / Support Bracket

Support Bracket, LEFT

W/ EXTENDED FRAME

$77.52 $56.74
20 CK4Z-17787-B CK4Z-17787-B / Support Bracket

Support Bracket, RIGHT

W/ EXTENDED FRAME

$71.80 $52.56
20 CK4Z-17788-A CK4Z-17788-A / Support Bracket

Support Bracket, LEFT

W/ O EXTENDED FRAME

$56.87 $41.63
21 -W502671-S450B -W502671-S450B / Support Bracket Screw

Support Bracket Screw, RIGHT

UPPER

$1.19 $0.72
21 -W502671-S450B -W502671-S450B / Support Bracket Screw

Support Bracket Screw, LEFT

UPPER

$1.19 $0.72
22 -W706710-S442 -W706710-S442 / Support Bracket Screw

Support Bracket Screw, RIGHT

LOWER

$1.00 $0.61
22 -W706710-S442 -W706710-S442 / Support Bracket Screw

Support Bracket Screw, LEFT

LOWER

$1.00 $0.61
23 -W715197-S439 -W715197-S439 / Side Bracket Retainer Nut

Support Bracket Nut, LEFT

$1.39 $0.84
23 -W715197-S439 -W715197-S439 / Side Bracket Retainer Nut

Support Bracket Nut, RIGHT

$1.39 $0.84
24 CV6Z-15K859-A CV6Z-15K859-A / Sensor

Reverse Sensor

$99.23 $72.64
24 CV6Z-15K859-A CV6Z-15K859-A / Sensor

TRANSIT; REAR; PARKING AID SENSOR

$99.23 $72.64
25 DT1Z-15K861-G DT1Z-15K861-G / Reverse Sensor Retainer

Reverse Sensor Retainer, RIGHT

OUTER

$10.37 $7.59
26 DT1Z-15K861-F DT1Z-15K861-F / Reverse Sensor Retainer

Reverse Sensor Retainer, LEFT

OUTER

$10.37 $7.59
27 BK2Z-15K861-A BK2Z-15K861-A / Reverse Sensor Retainer

Reverse Sensor Retainer, RIGHT

INNER

$11.85 $8.67
27 BK2Z-15K861-A BK2Z-15K861-A / Reverse Sensor Retainer

Reverse Sensor Retainer, LEFT

INNER

$11.85 $8.67
28 CK4Z-15K868-C CK4Z-15K868-C / Wire Harness

INNER, W/ LOW ROOF

$22.60 $16.54
28 CK4Z-15K868-D CK4Z-15K868-D / Wire Harness

INNER, W/ MEDIUM, HIGH ROOF

$16.32 $11.94
29 GK4Z-15K868-A GK4Z-15K868-A / Wire Harness

OUTER, W/ MEDIUM, HIGH ROOF

$30.02 $21.97
29 CK4Z-15K868-B CK4Z-15K868-B / Wire Harness

OUTER, W/ LOW ROOF

$38.02 $27.83
No. Part # Part # / Description List Price Price
N/A BK3Z-17788-A BK3Z-17788-A / Support Bracket Extension

Support Bracket Extension, LEFT

W/ EXTENDED FRAME

$65.38 $47.86
No. Part # Part # / Description List Price Price
N/A BK3Z-17787-A BK3Z-17787-A / Support Bracket Extension

Support Bracket Extension, RIGHT

W/ EXTENDED FRAME

$65.38 $47.86
