Electrical/Air Bag Components for 2015 Ford Transit-150

Select Air Bag Components Part

2015 Ford Transit-150

Change vehicle

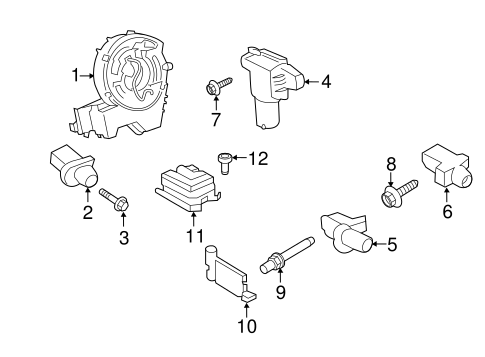

Electrical/Air Bag Components for 2015 Ford Transit-150 #1
No. Part # Part # / Description List Price Price
1 BK2Z-14A664-B BK2Z-14A664-B / Clock Spring

TRANSIT; W/ LANE DEPARTURE SYS.

$223.75 $163.79
1 BK2Z-14A664-A BK2Z-14A664-A / Clock Spring

TRANSIT; W/ O LANE DEPARTURE SYS.

$194.22 $142.17
2 BK2Z-14B004-A BK2Z-14B004-A / Side Impact Sens

Front Sensor

TRANSIT

$86.50 $63.32
2 FR3Z-14B004-A FR3Z-14B004-A / Ft Impact Sensor

MODULES & RELAYS, FROM 03/ 17/ 2015

$149.23 $109.24
2 BK2Z-14B004-A BK2Z-14B004-A / Side Impact Sens

Ft Impact Sensor

MODULES & RELAYS, TO 03/ 16/ 2015

$86.50 $63.32
3 -W505256-S442 -W505256-S442 / Ft Impact Sensor Screw

Ft Impact Sensor Bolt

MODULES & RELAYS

$2.47 $1.51
4 CK4Z-14B345-B CK4Z-14B345-B / Side Impact Sens

Side Sensor

TRANSIT; FRONT

$57.47 $42.07
4 CK4Z-14B345-B CK4Z-14B345-B / Side Impact Sens

Side Impact Sens, RIGHT

MODULES & RELAYS, FRONT DOOR

$57.47 $42.07
4 CK4Z-14B345-B CK4Z-14B345-B / Side Impact Sens

Side Impact Sens, LEFT

MODULES & RELAYS, FRONT DOOR

$57.47 $42.07
5 FR3Z-14B004-A FR3Z-14B004-A / Ft Impact Sensor

Side Impact Sens

MODULES & RELAYS, FROM 03/ 17/ 2015

$149.23 $109.24
5 BK2Z-14B004-A BK2Z-14B004-A / Side Impact Sens

Side Impact Sens, LEFT

MODULES & RELAYS, REAR DOOR/ FT QUARTER, TO 03/ 16/ 2015

$86.50 $63.32
5 BK2Z-14B004-A BK2Z-14B004-A / Side Impact Sens

Side Impact Sens, RIGHT

MODULES & RELAYS, REAR DOOR/ FT QUARTER, TO 03/ 16/ 2015

$86.50 $63.32
6 CK4Z-14B345-A CK4Z-14B345-A / Side Impact Sens

Side Sensor

TRANSIT; REAR

$53.00 $38.80
6 CK4Z-14B345-A CK4Z-14B345-A / Side Impact Sens

Side Impact Sens, LEFT

MODULES & RELAYS, REAR QUARTER

$53.00 $38.80
6 CK4Z-14B345-A CK4Z-14B345-A / Side Impact Sens

Side Impact Sens, RIGHT

MODULES & RELAYS, REAR QUARTER

$53.00 $38.80
7 -W705314-S307 -W705314-S307 / Door Trim Panel Screw

Side Impact Sens Screw

MODULES & RELAYS, FRONT DOOR

$1.00 $0.61
8 -W505256-S442 -W505256-S442 / Ft Impact Sensor Screw

Side Impact Sens Screw

MODULES & RELAYS, REAR QUARTER

$2.47 $1.51
9 -W711897-S442 -W711897-S442 / Side Impact Sens Stud

MODULES & RELAYS

$1.25 $0.76
10 CK4Z-14111A74-A CK4Z-14111A74-A / Side Impact Sens Cover Plate

MODULES & RELAYS

$9.65 $7.06
11 CK4Z-14B321-E CK4Z-14B321-E / Control Module

Sdm Module

TRANSIT; W/ O INFLATOR CURTAIN

$563.90 $412.77
11 CK4Z-14B321-F CK4Z-14B321-F / Control Module

Sdm Module

TRANSIT; W/ INFLATOR CURTAIN; LEVEL 1

$568.38 $416.06
11 CK4Z-14B321-H CK4Z-14B321-H / Control Module

Sdm Module

TRANSIT; W/ INFLATOR CURTAIN; LEVEL 2/ 3/ 4/ 5/ 6

$583.15 $426.87
11 CK4Z-14B321-H CK4Z-14B321-H / Control Module

MODULES & RELAYS, W/ HEAD AIR BAG, LEVEL 2,3,3,4,5,6, W/ HEAD AIR BAG, LEVEL 2,3,3,4,5,6

$583.15 $426.87
11 CK4Z-14B321-F CK4Z-14B321-F / Control Module

MODULES & RELAYS, W/ HEAD AIR BAG, LEVEL 1, W/ HEAD AIR BAG, LEVEL 1

$568.38 $416.06
11 CK4Z-14B321-E CK4Z-14B321-E / Control Module

MODULES & RELAYS, W/ O HEAD AIR BAG, FROM 11/ 05/ 2014

$563.90 $412.77
11 CK4Z-14B321-E CK4Z-14B321-E / Control Module

MODULES & RELAYS, W/ O HEAD AIR BAG, TO 11/ 04/ 2014

$563.90 $412.77
12 -W711499-S415 -W711499-S415 / Control Module Screw

MODULES & RELAYS

$1.00 $0.61

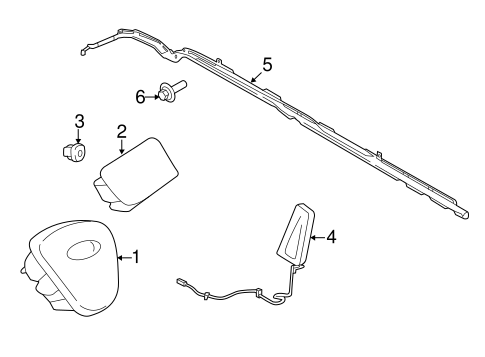

Electrical/Air Bag Components for 2015 Ford Transit-150 #2
5
No. Part # Part # / Description List Price Price
1 CK4Z-14043B13-AC CK4Z-14043B13-AC / Driver Air Bag 2

Driver Inflator Module

TRANSIT

$402.00 $294.26
1 CK4Z-14043B13-AC CK4Z-14043B13-AC / Driver Air Bag 2

AIR BAGS

$402.00 $294.26
2 CK4Z-14044A74-BC CK4Z-14044A74-BC / Passenger Air Bag 2

Passenger Inflator Module

TRANSIT

$611.87 $447.89
2 CK4Z-14044A74-BC CK4Z-14044A74-BC / Passenger Air Bag 2

AIR BAGS

$611.87 $447.89
3 -W520201-S442 -W520201-S442 / Housing Nut

Passenger Air Bag Nut

AIR BAGS

$2.54 $1.55
4 CK4Z-14611D11-A CK4Z-14611D11-A / Ft Seat Air Bag 2

Side Impact Inflator Module

TRANSIT; LEFT

$296.77 $217.23
4 CK4Z-14611D10-A CK4Z-14611D10-A / Ft Seat Air Bag 2

Side Impact Inflator Module

TRANSIT; RIGHT

$286.75 $209.90
4 CK4Z-14611D10-A CK4Z-14611D10-A / Ft Seat Air Bag 2

Ft Seat Air Bag, RIGHT

AIR BAGS

$286.75 $209.90
4 CK4Z-14611D11-A CK4Z-14611D11-A / Ft Seat Air Bag 2

Ft Seat Air Bag, LEFT

AIR BAGS

$296.77 $217.23
5 GK4Z-14042D94-B GK4Z-14042D94-B / Curtain Assembly 2

Inflator Curtain

TRANSIT; WAGON; RIGHT; W/ O LONG SERIES; W/ O EXTENDED FRAME; MEDIUM ROOF LINE; FRONT ROW; FROM 6/ 9/ 14

$784.02 $573.90
5 EK4Z-12042D95-D EK4Z-12042D95-D / Curtain Assembly 2

Inflator Curtain

TRANSIT; WAGON; LEFT; W/ O LONG SERIES; W/ O EXT. FRAME; MEDIUM ROOF LINE; FRT/ 2ND/ 3RD/ 4TH ROW; FROM 6/ 9/ 14

$1,530.10 $1,120.03
5 CK4Z-39042D95-C CK4Z-39042D95-C / Inflator Curtain 2

TRANSIT; WAGON; LEFT; W/ O LONG SERIES; W/ EXTENDED FRAME; TO 8/ 4/ 14

$1,548.80 $1,133.72
5 CK4Z-36042D95-C CK4Z-36042D95-C / Inflator Curtain 2

TRANSIT; WAGON; LEFT; W/ LONG SERIES

$1,715.18 $1,255.51
5 GK4Z-14042D95-A GK4Z-14042D95-A / Head Air Bag 2

Inflator Curtain

TRANSIT; CARGO VAN; LEFT; LOW ROOF LINE

$766.47 $561.05
5 CK4Z-36042D94-C CK4Z-36042D94-C / Inflator Curtain 2

TRANSIT; WAGON; RIGHT; W/ LONG SERIES

$1,548.62 $1,133.59
5 EK4Z-12042D94-B EK4Z-12042D94-B / Curtain Assembly 2

Inflator Curtain

TRANSIT; WAGON; RIGHT; W/ O LONG SERIES; W/ O EXTENDED FRAME; LOW ROOF LINE; FRT/ 2ND/ 3RD/ 4TH ROW

$1,522.40 $1,114.40
5 CK4Z-39042D94-C CK4Z-39042D94-C / Inflator Curtain 2

TRANSIT; WAGON; RIGHT; W/ O LONG SERIES; W/ EXTENDED FRAME

$1,740.65 $1,274.16
5 EK4Z-12042D94-B EK4Z-12042D94-B / Curtain Assembly 2

Head Air Bag, RIGHT

AIR BAGS, W/ WAGON, W/ O 5TH ROW SEAT, W/ MEDIUM, HIGH ROOF

$1,522.40 $1,114.40
5 CK4Z-36042D94-C CK4Z-36042D94-C / Inflator Curtain 2

Head Air Bag, RIGHT

AIR BAGS, W/ WAGON, W/ 5TH ROW SEAT, W/ O EXTENDED, W/ MEDIUM, HIGH ROOF

$1,548.62 $1,133.59
5 EK4Z-12042D95-D EK4Z-12042D95-D / Curtain Assembly 2

Head Air Bag, LEFT

AIR BAGS, W/ WAGON, W/ O 5TH ROW SEAT, W/ MEDIUM, HIGH ROOF

$1,530.10 $1,120.03
5 GK4Z-14042D95-A GK4Z-14042D95-A / Head Air Bag 2

Head Air Bag, LEFT

AIR BAGS, W/ WAGON, W/ O 5TH ROW SEAT, W/ LOW ROOF

$766.47 $561.05
5 CK4Z-39042D94-C CK4Z-39042D94-C / Inflator Curtain 2

Head Air Bag, RIGHT

AIR BAGS, W/ WAGON, W/ 5TH ROW SEAT, W/ EXTENDED, W/ MEDIUM, HIGH ROOF

$1,740.65 $1,274.16
5 CK4Z-36042D95-C CK4Z-36042D95-C / Inflator Curtain 2

Head Air Bag, LEFT

AIR BAGS, W/ WAGON, W/ 5TH ROW SEAT, W/ O EXTENDED, W/ MEDIUM, HIGH ROOF

$1,715.18 $1,255.51
5 GK4Z-14042D94-B GK4Z-14042D94-B / Curtain Assembly 2

Head Air Bag, RIGHT

AIR BAGS, W/ WAGON, W/ O 5TH ROW SEAT, W/ LOW ROOF

$784.02 $573.90
5 CK4Z-39042D95-C CK4Z-39042D95-C / Inflator Curtain 2

Head Air Bag, LEFT

AIR BAGS, W/ WAGON, W/ 5TH ROW SEAT, W/ EXTENDED, W/ MEDIUM, HIGH ROOF

$1,548.80 $1,133.72
6 -W717570-S439 -W717570-S439 / Windshield Pillar Trim Bolt

Head Air Bag Bolt, RIGHT

AIR BAGS

$1.00 $0.61
6 -W717570-S439 -W717570-S439 / Windshield Pillar Trim Bolt

Head Air Bag Bolt, LEFT

AIR BAGS

$1.00 $0.61
No. Part # Part # / Description List Price Price
N/A CK4Z-14042D94-E CK4Z-14042D94-E / Curtain Assembly 2

Inflator Curtain

TRANSIT; WAGON; RIGHT; W/ O LONG SERIES; W/ O EXTENDED FRAME; HIGH ROOF LINE; FRONT ROW

$602.45 $440.99
N/A CK4Z-14042D95-E CK4Z-14042D95-E / Curtain Assembly 2

Inflator Curtain

TRANSIT; WAGON; LEFT; W/ O LONG SERIES; W/ O EXT. FRAME; MEDIUM ROOF LINE; FRONT ROW; TO 6/ 9/ 14

$602.45 $440.99
No. Part # Part # / Description List Price Price
N/A CK4Z-12042D94-A CK4Z-12042D94-A / Inflator Curtain 2

TRANSIT; WAGON; RIGHT; W/ O LONG SERIES; W/ O EXTENDED FRAME; MEDIUM ROOF LINE; FRT/ 2ND/ 3RD/ 4TH ROW; TO 6/ 9/ 14

$1,535.58 $1,124.05
N/A CK4Z-12042D95-C CK4Z-12042D95-C / Inflator Curtain 2

TRANSIT; WAGON; LEFT; W/ O LONG SERIES; W/ O EXT. FRAME; MEDIUM ROOF LINE; FRT/ 2ND/ 3RD/ 4TH ROW; TO 6/ 9/ 14

$1,655.00 $1,211.46
2This part contains hazardous materials. Extra shipping costs apply.
