Rear Suspension/Suspension Mounting for 2015 Ford Explorer

Select Suspension Mounting Part

2015 Ford Explorer

Change vehicle

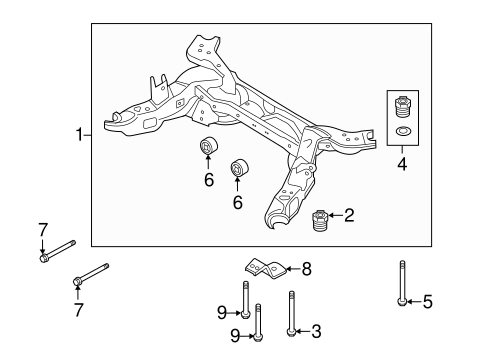

No. Part # Part # / Description List Price Price
1 DB5Z-5R003-E DB5Z-5R003-E / Cross-Member

Suspension Cross-member

W/ 4WD

$1,228.50 $899.26
3 -W715633-S439 -W715633-S439 / Suspension Cross-Member Mount Bolt

Suspension Cross-member Front Bolt, RIGHT

W/ 4WD

$7.50 $4.58
4 BB5Z-5872-B BB5Z-5872-B / Suspension Cross-Member Rear Bushing

Suspension Cross-member Rear Bushing, LEFT

W/ 4WD

$48.35 $35.39
5 -W715633-S439 -W715633-S439 / Suspension Cross-Member Mount Bolt

Suspension Cross-member Rear Bolt, LEFT

W/ 4WD

$7.50 $4.58
6 BB5Z-5K812-A BB5Z-5K812-A / Insulator Spacer

Spacer, LEFT

W/ 4WD

$13.55 $9.92
6 BB5Z-5K812-A BB5Z-5K812-A / Insulator Spacer

Spacer, RIGHT

W/ 4WD

$13.55 $9.92
7 8G1Z-4B424-A 8G1Z-4B424-A / Front Insulator

Front Insulator, RIGHT

W/ 4WD

$24.57 $17.98
7 8G1Z-4B424-A 8G1Z-4B424-A / Front Insulator

Front Insulator, LEFT

W/ 4WD

$24.57 $17.98
8 -W717859-S439 -W717859-S439 / Insulator Bolt

Front Insulator Bolt, LEFT

W/ 4WD

$7.50 $4.58
8 -W717859-S439 -W717859-S439 / Insulator Bolt

Front Insulator Bolt, RIGHT

W/ 4WD

$7.50 $4.58
9 7E5Z-4B425-B 7E5Z-4B425-B / Bracket Bushing

Rear Insulator, RIGHT

W/ 4WD

$24.13 $17.67
9 7E5Z-4B425-B 7E5Z-4B425-B / Bracket Bushing

Rear Insulator, LEFT

W/ 4WD

$24.13 $17.67
10 -W717859-S439 -W717859-S439 / Insulator Bolt

Rear Insulator Bolt, RIGHT

W/ 4WD

$7.50 $4.58
10 -W717859-S439 -W717859-S439 / Insulator Bolt

Rear Insulator Bolt, LEFT

W/ 4WD

$7.50 $4.58

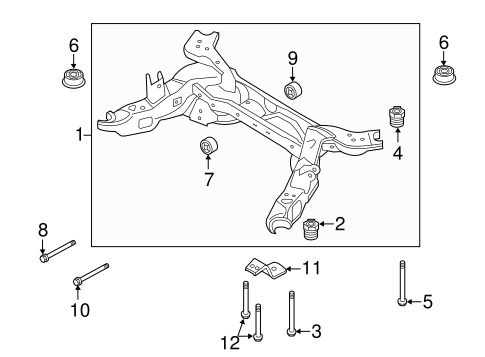

No. Part # Part # / Description List Price Price
1 DB5Z-5R003-F DB5Z-5R003-F / Cross-Member

Suspension Cross-member

W/ O 4WD

$945.08 $691.80
2 BB5Z-5872-A BB5Z-5872-A / Suspension Cross-Member Front Bushing

Suspension Cross-member Front Bushing, LEFT

W/ O 4WD

$48.35 $35.39
2 BB5Z-5872-A BB5Z-5872-A / Suspension Cross-Member Front Bushing

Suspension Cross-member Front Bushing, RIGHT

W/ O 4WD

$48.35 $35.39
3 -W715633-S439 -W715633-S439 / Suspension Cross-Member Mount Bolt

Suspension Cross-member Front Bolt, LEFT

W/ O 4WD

$7.50 $4.58
4 BB5Z-5872-B BB5Z-5872-B / Suspension Cross-Member Rear Bushing

Suspension Cross-member Rear Bushing, RIGHT

W/ O 4WD

$48.35 $35.39
5 -W715633-S439 -W715633-S439 / Suspension Cross-Member Mount Bolt

Suspension Cross-member Rear Bolt, RIGHT

W/ O 4WD

$7.50 $4.58
6 BB5Z-5K812-A BB5Z-5K812-A / Insulator Spacer

Mount Bushing, LEFT

W/ O 4WD

$13.55 $9.92
6 BB5Z-5K812-A BB5Z-5K812-A / Insulator Spacer

Mount Bushing, RIGHT

W/ O 4WD

$13.55 $9.92
7 -W717859-S439 -W717859-S439 / Insulator Bolt

Mount Bushing Bolt, LEFT

W/ O 4WD

$7.50 $4.58
7 -W717859-S439 -W717859-S439 / Insulator Bolt

Mount Bushing Bolt, RIGHT

W/ O 4WD

$7.50 $4.58
8 DB5Z-5084-C DB5Z-5084-C / Mount Bracket

Mount Bracket, RIGHT

W/ O 4WD

$43.97 $32.18
8 DB5Z-5084-C DB5Z-5084-C / Mount Bracket

Mount Bracket, LEFT

W/ O 4WD

$43.97 $32.18
9 -W714470-S439 -W714470-S439 / Suspension Cross-Member Bolt

Mount Bracket Mount Bolt, LEFT

W/ O 4WD

$13.50 $8.24
9 -W714470-S439 -W714470-S439 / Suspension Cross-Member Bolt

Mount Bracket Mount Bolt, RIGHT

W/ O 4WD

$13.50 $8.24
