Rear Suspension/Axle Components for 2015 Ford Edge

Select Axle Components Part

2015 Ford Edge

Change vehicle

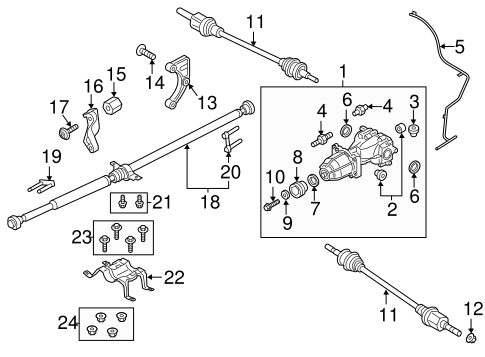

No. Part # Part # / Description List Price Price
1 S-162-A S-162-A / Differential Assembly

W/ AWD, 3.5 LITER

$761.43 $650.26
2 -W700251-S437 -W700251-S437 / Plug

Differential Assembly Drain Plug

W/ AWD

$3.00 $1.83
3 5R3Z-7860108-AA 5R3Z-7860108-AA / Differential Assembly Plug

W/ AWD

$4.53 $3.32
4 2L1Z-4022-BA 2L1Z-4022-BA / Vent Valve

Differential Assembly Vent

W/ AWD

$7.67 $5.61
6 CV6Z-4B416-A CV6Z-4B416-A / Axle Seal

Axle Seal, RIGHT

W/ AWD

$13.30 $9.74
6 CV6Z-4B416-A CV6Z-4B416-A / Axle Seal

Axle Seal, LEFT

W/ AWD

$13.30 $9.74
7 8G1Z-4N046-A 8G1Z-4N046-A / Seal

Rear Seal

W/ AWD, 2.7, 3.5 LITER

$22.63 $16.57
8 DP5Z-4851-A DP5Z-4851-A / Companion Flange

Flange

W/ AWD

$29.05 $21.26
9 -W715370-S441 -W715370-S441 / Flange Washer

W/ AWD

$2.00 $1.22
10 -W500320-S437M -W500320-S437M / Flange Bolt

W/ AWD

$4.00 $2.44
11 F2GZ-4K138-C F2GZ-4K138-C / Shaft Assembly

Axle Assembly, RIGHT

W/ AWD

$148.65 $108.81
11 F2GZ-4K138-C F2GZ-4K138-C / Shaft Assembly

Axle Assembly, LEFT

W/ AWD

$148.65 $108.81
12 CCPZ-3B477-B CCPZ-3B477-B / Axle Nut

Axle Nut, RIGHT

W/ AWD

$2.40 $1.76
12 CCPZ-3B477-B CCPZ-3B477-B / Axle Nut

Axle Nut, LEFT

W/ AWD

$2.40 $1.76
13 CV6Z-4K204-A CV6Z-4K204-A / Rear Bracket

Rear Bracket, LEFT

W/ AWD

$8.65 $6.33
13 CV6Z-4K204-A CV6Z-4K204-A / Rear Bracket

Rear Bracket, RIGHT

W/ AWD

$8.65 $6.33
14 -W717156-S439 -W717156-S439 / Bracket Bolt

Rear Bracket Bolt, RIGHT

W/ AWD

$1.00 $0.61
14 -W717156-S439 -W717156-S439 / Bracket Bolt

Rear Bracket Bolt, LEFT

W/ AWD

$1.00 $0.61
15 F2GZ-4A263-A F2GZ-4A263-A / Rear Bracket Insulator

Rear Bracket Insulator, LEFT

W/ AWD

$23.93 $17.52
15 F2GZ-4A263-A F2GZ-4A263-A / Rear Bracket Insulator

Rear Bracket Insulator, RIGHT

W/ AWD

$23.93 $17.52
16 CV6Z-4K360-A CV6Z-4K360-A / Front Bracket

Front Bracket, LEFT

W/ AWD

$12.74 $7.77
16 CV6Z-4K360-A CV6Z-4K360-A / Front Bracket

Front Bracket, RIGHT

W/ AWD

$12.74 $7.77
17 -W717156-S439 -W717156-S439 / Bracket Bolt

Front Bracket Bolt, RIGHT

W/ AWD

$1.00 $0.61
17 -W717156-S439 -W717156-S439 / Bracket Bolt

Front Bracket Bolt, LEFT

W/ AWD

$1.00 $0.61
18 F2GZ-4R602-E F2GZ-4R602-E / Drive Shaft Assembly

W/ AWD, 3.5 LITER, TO 08/ 17/ 2016

$597.80 $474.06
19 F2GZ-4682-A F2GZ-4682-A / Drive Shaft Assembly Front Bolt

W/ AWD

$2.12 $1.55
20 -W790063-S900 -W790063-S900 / Drive Shaft Bolt

Drive Shaft Assembly Rear Bolt

W/ AWD

$3.72 $2.27
21 -W712154-S439 -W712154-S439 / Drive Shaft Bolt

Drive Shaft Assembly Mount Bolt

W/ AWD

$1.00 $0.61
22 F2GZ-4B403-A F2GZ-4B403-A / Support Bracket

W/ AWD

$10.62 $7.77
23 -W707293-S439 -W707293-S439 / Support Bracket Bolt

W/ AWD

$1.00 $0.61
24 -W713853-S442 -W713853-S442 / Support Bracket Nut

W/ AWD

$1.00 $0.61
