Electrical/Headlamp Components for 2015 Ford Edge

Select Headlamp Components Part

2015 Ford Edge

Change vehicle

No. Part # Part # / Description List Price Price
1 FT4Z-13008-A FT4Z-13008-A / Composite Headlamp 1

EDGE; RIGHT; HALOGEN HEADLAMPS; W/ O SERIES 55; TO 10/ 24/ 16

$1,192.73 $1,164.10
1 FT4Z-13008-F FT4Z-13008-F / Composite Headlamp 1

EDGE; LEFT; HALOGEN HEADLAMP; W/ O SERIES 55; TO 10/ 24/ 16

$1,093.90 $1,067.65
1 FT4Z-13008-A FT4Z-13008-A / Composite Headlamp 1

Headlamp Assembly, RIGHT

HALOGEN, W/ SE, SEL

$1,192.73 $1,164.10
1 FT4Z-13008-F FT4Z-13008-F / Composite Headlamp 1

Headlamp Assembly, LEFT

HALOGEN, W/ SE, SEL

$1,093.90 $1,067.65
2 -W505425-S450B -W505425-S450B / Headlamp Assembly Rear Bolt

Headlamp Assembly Bolt, LEFT

HALOGEN

$7.50 $4.58
2 -W505425-S450B -W505425-S450B / Headlamp Assembly Rear Bolt

Headlamp Assembly Bolt, RIGHT

HALOGEN

$7.50 $4.58
3 -W706092-S300 -W706092-S300 / Fender Liner Rivet

Headlamp Assembly Rivet, LEFT

HALOGEN

$1.50 $0.92
3 -W706092-S300 -W706092-S300 / Fender Liner Rivet

Headlamp Assembly Rivet, RIGHT

HALOGEN

$1.50 $0.92
4 -W520802-S439 -W520802-S439 / Fender U-Nut

Headlamp Assembly Nut, LEFT

HALOGEN

$2.50 $1.53
4 -W520802-S439 -W520802-S439 / Fender U-Nut

Headlamp Assembly Nut, RIGHT

HALOGEN

$2.50 $1.53
5 2C5Z-13N021-AA 2C5Z-13N021-AA / Low Beam Bulb

Headlamp Bulb

EDGE; HALOGEN HEADLAMP; LOW BEAM

$32.00 $23.42
5 2C5Z-13N021-AA 2C5Z-13N021-AA / Low Beam Bulb

Low Beam Bulb, LEFT

HALOGEN

$32.00 $23.42
5 2C5Z-13N021-AA 2C5Z-13N021-AA / Low Beam Bulb

Low Beam Bulb, RIGHT

HALOGEN

$32.00 $23.42
6 BE8Z-13N021-B BE8Z-13N021-B / High Beam Bulb

Headlamp Bulb

EDGE; HALOGEN HEADLAMP; HIGH BEAM; W/ O DAYTIME RUNNING LAMP

$16.95 $12.41
6 BE8Z-13N021-B BE8Z-13N021-B / High Beam Bulb

High Beam Bulb, LEFT

HALOGEN

$16.95 $12.41
6 BE8Z-13N021-B BE8Z-13N021-B / High Beam Bulb

High Beam Bulb, RIGHT

HALOGEN

$16.95 $12.41
8 5N2Z-13466-A 5N2Z-13466-A / Bulb

Signal Lamp Bulb, LEFT

HALOGEN

$9.52 $6.97

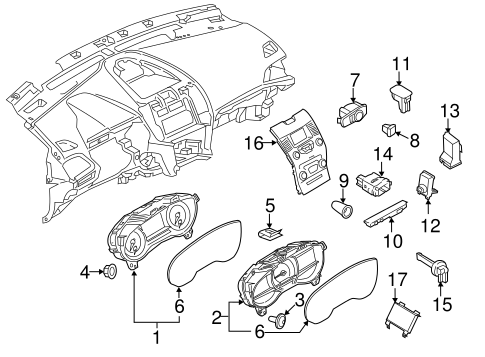

Electrical/Headlamp Components for 2015 Ford Edge #2
No. Part # Part # / Description List Price Price
1 FT4Z-10849-AA FT4Z-10849-AA / Cluster Assembly 1

Instrument Cluster

EDGE; W/ O MESSAGE CENTER; TO 6/ 26/ 15

$459.37 $364.28
1 FT4Z-10849-AA FT4Z-10849-AA / Cluster Assembly 1

W/ O MESSAGE CENTER, TO 12/ 15/ 2016

$459.37 $364.28
2 FT4Z-10849-CA FT4Z-10849-CA / Instrument Cluster 1

EDGE; W/ MESSAGE CENTER; TO 12/ 15/ 15

$658.55 $522.23
2 FT4Z-10849-CA FT4Z-10849-CA / Instrument Cluster 1

Cluster Assembly

W/ MESSAGE CENTER, TO 12/ 15/ 2015

$658.55 $522.23
3 -W707628-S424 -W707628-S424 / Passenger Air Bag Retainer Screw

Cluster Assembly Screw

$1.50 $0.92
4 -W710609-S439 -W710609-S439 / Extension Panel Nut

Cluster Assembly Nut

$1.50 $0.92
5 -W704930-S403 -W704930-S403 / Cluster Lens U-Nut

Cluster Assembly U-Nut

$1.50 $0.92
6 FT4Z-10890-C FT4Z-10890-C / Cluster Lens

W/ MESSAGE CENTER

$27.38 $20.04
6 FT4Z-10890-A FT4Z-10890-A / Cluster Lens

W/ O MESSAGE CENTER

$32.30 $23.64
7 F2GZ-11654-AA F2GZ-11654-AA / Headlamp Switch

W/ O HEADLAMP LEVEL, W/ O POWER LIFT GATE

$38.02 $25.51
7 F2GZ-11654-EA F2GZ-11654-EA / Headlamp Switch

W/ HEADLAMP LEVEL, W/ O POWER LIFT GATE

$41.27 $27.69
7 F2GZ-11654-DA F2GZ-11654-DA / Headlamp Switch

W/ HEADLAMP LEVEL, W/ POWER LIFT GATE

$41.27 $27.69
7 F2GZ-11654-BA F2GZ-11654-BA / Headlamp Switch

W/ O HEADLAMP LEVEL, W/ POWER LIFT GATE

$38.15 $25.60
8 E1GZ-54432A38-AB E1GZ-54432A38-AB / Lock Switch

EDGE; AT DASH

$25.55 $18.70
8 E1GZ-54432A38-AB E1GZ-54432A38-AB / Lock Switch

Release Switch

LIFTGATE

$25.55 $18.70
9 DG9Z-10B776-AB DG9Z-10B776-AB / Start Button

Power Switch

EDGE

$20.50 $15.01
9 DG9Z-10B776-AB DG9Z-10B776-AB / Start Button

$20.50 $15.01
10 FT4Z-19G468-A FT4Z-19G468-A / Control Module

W/ ADAPTIVE SPEED CONTROL, W/ ADAPTIVE SPEED CONTROL

$73.39 $62.67
11 DG9Z-13A018-E DG9Z-13A018-E / Sun Load Sensor

Sentinel Sensor

EDGE; W/ ATC

$32.60 $21.87
11 DG9Z-13A018-B DG9Z-13A018-B / Sentinel Sensor

EDGE; W/ O ATC

$25.22 $16.92
11 DG9Z-13A018-B DG9Z-13A018-B / Sentinel Sensor

Sun Load Sensor

W/ O DUAL ZONE AC

$25.22 $16.92
11 DG9Z-13A018-E DG9Z-13A018-E / Sun Load Sensor

W/ DUAL ZONE AC

$32.60 $21.87
12 FR3Z-14F642-A FR3Z-14F642-A / Module

DATA SMART LINK

$34.97 $25.60
13 DG9Z-14B561-A DG9Z-14B561-A / Control Module

Module

STEERING WHEEL HEAT

$48.98 $35.86
14 FL3Z-19E616-D FL3Z-19E616-D / In-Car Sensor

EDGE

$45.40 $30.46
14 FL3Z-19E616-D FL3Z-19E616-D / In-Car Sensor

Humidity Sensor

$45.40 $30.46
15 E1GZ-19C734-A E1GZ-19C734-A / In-Car Temp Sensor

Refrigerant Temp Sensor

EDGE

$6.04 $4.05
15 E1GZ-19C734-A E1GZ-19C734-A / In-Car Temp Sensor

Temp Sensor

$6.04 $4.05
16 FT4Z18842BJ FT4Z18842BJ / Dash Control Unit

DASH BEZEL; EDGE; INTERFACE 4; W/ VARIABLE TEMP SEAT; TO 4/ 6/ 16

- -
16 FT4Z18842B FT4Z18842B / Dash Control Unit

DASH BEZEL; EDGE; INTERFACE 2; W/ ATC; W/ O VARIABLE TEMP SEAT; FROM 5/ 25/ 15-11/ 16/ 15

- -
16 FT4Z18842GB FT4Z18842GB / Dash Control Unit

DASH BEZEL; EDGE; INTERFACE 2; W/ ATC; W/ VARIABLE TEMP SEAT; FROM 10/ 23/ 15-11/ 16/ 15

- -
16 FT4Z18842HD FT4Z18842HD / Dash Control Unit

DASH BEZEL; EDGE; INTERFACE 4; W/ O VARIABLE TEMP SEAT; TO 4/ 6/ 16

- -
16 FT4Z18842CK FT4Z18842CK / Dash Control Unit

DASH BEZEL; EDGE; INTERFACE 5; W/ O COOLED SEAT; W/ O LANE DEPARTURE

- -
16 FT4Z18842FF FT4Z18842FF / Dash Control Unit

DASH BEZEL; EDGE; INTERFACE 5; W/ COOLED SEATS; W/ LANE DEPARTURE

- -
16 FT4Z18842B FT4Z18842B / Dash Control Unit

Control Panel

W/ INTERFACE #2, W/ DUAL AC, W/ HEATED SEATS

- -
16 FT4Z18842CK FT4Z18842CK / Dash Control Unit

Control Panel

W/ INTERFACE # 5, W/ HEATED SEATS

- -
16 FT4Z18842BJ FT4Z18842BJ / Dash Control Unit

Control Panel

W/ INTERFACE # 4, W/ HEATED SEATS

- -
16 FT4Z18842FF FT4Z18842FF / Dash Control Unit

Control Panel

W/ INTERFACE # 5, W/ COOLED SEATS

- -
16 FT4Z18842GB FT4Z18842GB / Dash Control Unit

Control Panel

W/ INTERFACE #2, W/ DUAL AC, W/ O HEATED SEATS

- -
16 FT4Z18842HD FT4Z18842HD / Dash Control Unit

Control Panel

W/ INTERFACE # 4, W/ O HEATED SEATS

- -
16 FT4Z18842C FT4Z18842C / Control Panel

W/ INTERFACE #2, W/ O DUAL AC

- -
17 EM2Z10D885FA EM2Z10D885FA / Display Unit

W/ SYNC 2

- -
17 E1GZ10D885C E1GZ10D885C / Display Unit

W/ O SYNC 2

- -
No. Part # Part # / Description List Price Price
2 -W505425-S439 -W505425-S439 / Park Lamp Assembly Bolt

Headlamp Housing Bolt, RIGHT

HIGH INTENSITY DISCHARGE

$3.00 $1.83
2 -W505425-S439 -W505425-S439 / Park Lamp Assembly Bolt

Headlamp Housing Bolt, LEFT

HIGH INTENSITY DISCHARGE

$3.00 $1.83
3 -W706092-S300 -W706092-S300 / Fender Liner Rivet

Headlamp Housing Rivet, RIGHT

HIGH INTENSITY DISCHARGE

$1.50 $0.92
3 -W706092-S300 -W706092-S300 / Fender Liner Rivet

Headlamp Housing Rivet, LEFT

HIGH INTENSITY DISCHARGE

$1.50 $0.92
4 -W520802-S439 -W520802-S439 / Fender U-Nut

Headlamp Housing Nut, LEFT

HIGH INTENSITY DISCHARGE

$2.50 $1.53
4 -W520802-S439 -W520802-S439 / Fender U-Nut

Headlamp Housing Nut, RIGHT

HIGH INTENSITY DISCHARGE

$2.50 $1.53
5 7L7Z-13N021-A 7L7Z-13N021-A / Hid Bulb

Headlamp Bulb

EDGE; HID BULB W/ IGNITER (D3S)

$380.20 $278.31
5 7L7Z-13N021-A 7L7Z-13N021-A / Hid Bulb

Hid Bulb, LEFT

HIGH INTENSITY DISCHARGE

$380.20 $278.31
5 7L7Z-13N021-A 7L7Z-13N021-A / Hid Bulb

Hid Bulb, RIGHT

HIGH INTENSITY DISCHARGE

$380.20 $278.31
6 DJ5Z-13N021-A DJ5Z-13N021-A / Headlamp Bulb

EDGE; HALOGEN HEADLAMP; HIGH BEAM; W/ DAYTIME RUNNING LAMP

$33.10 $24.23
6 DJ5Z-13N021-A DJ5Z-13N021-A / Headlamp Bulb

High Beam Bulb, RIGHT

HIGH INTENSITY DISCHARGE

$33.10 $24.23
6 DJ5Z-13N021-A DJ5Z-13N021-A / Headlamp Bulb

High Beam Bulb, LEFT

HIGH INTENSITY DISCHARGE

$33.10 $24.23
7 4S4Z-13N019-AA 4S4Z-13N019-AA / High Beam Bulb Dust Cap

Protect Cap, LEFT

HIGH INTENSITY DISCHARGE

$8.63 $6.32
7 4S4Z-13N019-AA 4S4Z-13N019-AA / High Beam Bulb Dust Cap

Protect Cap, RIGHT

HIGH INTENSITY DISCHARGE

$8.63 $6.32
8 5N2Z-13466-A 5N2Z-13466-A / Bulb

Exterior Bulbs

EDGE; FRONT PARK SIGNAL

$9.52 $6.97
8 5N2Z-13466-A 5N2Z-13466-A / Bulb

Signal Lamp Bulb, RIGHT

HIGH INTENSITY DISCHARGE

$9.52 $6.97
9 FT4Z-13C170-A FT4Z-13C170-A / Control Module

HID BALLAST MODULE; EDGE

$577.51 $317.05
9 FT4Z-13C170-A FT4Z-13C170-A / Control Module

Ballast, LEFT

HIGH INTENSITY DISCHARGE

$577.51 $317.05
9 FT4Z-13C170-A FT4Z-13C170-A / Control Module

Ballast, RIGHT

HIGH INTENSITY DISCHARGE

$577.51 $317.05
No. Part # Part # / Description List Price Price
N/A FT4Z-13008-M FT4Z-13008-M / Composite Headlamp 1

EDGE; RIGHT; HID HEADLAMPS; SERIES 55

$1,033.66 $1,008.85
N/A FT4Z-13008-D FT4Z-13008-D / Composite Headlamp 1

EDGE; RIGHT; HALOGEN HEADLAMPS; W/ SERIES 55

$716.73 $699.52
N/A FT4Z-13008-L FT4Z-13008-L / Composite Headlamp 1

EDGE; RIGHT; HID HEADLAMPS; SERIES 60

$1,018.39 $993.95
No. Part # Part # / Description List Price Price
N/A FT4Z-13008-J FT4Z-13008-J / Composite Headlamp 1

EDGE; LEFT; HALOGEN HEADLAMP; W/ SERIES 55

$716.73 $699.52
N/A FT4Z-13008-P FT4Z-13008-P / Composite Headlamp 1

EDGE; LEFT; HID HEADLAMPS; SERIES 55

$1,033.66 $1,008.85
N/A FT4Z-13008-N FT4Z-13008-N / Composite Headlamp 1

EDGE; LEFT; HID HEADLAMPS; SERIES 60

$1,018.39 $993.95
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
