Body/Radiator Support for 2015 Ford Edge

Select Radiator Support Part

2015 Ford Edge

Change vehicle

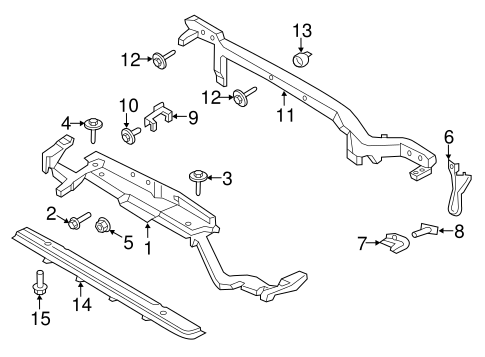

No. Part # Part # / Description List Price Price
1 FT4Z-16138-C FT4Z-16138-C / Upper Tie Bar

FROM 5/ 11/ 15

$279.48 $204.58
2 -W505425-S442 -W505425-S442 / Air Inlet Tube Bolt

Upper Tie Bar Bolt

M6X25MM

$2.50 $1.53
3 -W505428-S442 -W505428-S442 / Headlamp Housing Front Bolt

Upper Tie Bar Bolt

M6X40MM

$5.00 $3.05
4 -W520822-S439 -W520822-S439 / Valance Panel Nut

Upper Tie Bar U-Nut

$2.50 $1.53
5 -W715900-S450B -W715900-S450B / Latch Nut

Upper Tie Bar Nut

$2.50 $1.53
6 FT4Z-16747-A FT4Z-16747-A / Center Bracket

$109.53 $80.18
7 FT4Z-16747-B FT4Z-16747-B / Center Bracket Support

$21.22 $15.53
8 -W505425-S442 -W505425-S442 / Air Inlet Tube Bolt

Center Bracket Bolt

$2.50 $1.53
9 FT4Z-13A004-A FT4Z-13A004-A / Mount Bracket

Mount Bracket, RIGHT

$14.33 $10.49
9 FT4Z-13A004-A FT4Z-13A004-A / Mount Bracket

Mount Bracket, LEFT

$14.33 $10.49
10 -W505423-S442 -W505423-S442 / Fender Mount Bolt

Mount Bracket Bolt, RIGHT

$2.50 $1.53
10 -W505423-S442 -W505423-S442 / Fender Mount Bolt

Mount Bracket Bolt, LEFT

$2.50 $1.53
11 FT4Z-8A284-A FT4Z-8A284-A / Mount Panel

$509.63 $373.05
12 -W708661-S442 -W708661-S442 / Inner Bracket Bolt

Mount Panel Bolt

$2.50 $1.53
13 CP9Z-8182-B CP9Z-8182-B / Tie Bar Bracket

Mount Panel Bracket, LEFT

$10.45 $7.65
13 CP9Z-8182-B CP9Z-8182-B / Tie Bar Bracket

Mount Panel Bracket, RIGHT

$10.45 $7.65
14 FT4Z-16138-D FT4Z-16138-D / Lower Tie Bar

$193.47 $141.62
15 -W714125-S442 -W714125-S442 / Mount Bolt

Lower Tie Bar Bolt

$1.50 $0.92
