HVAC/Switches & Sensors for 2014 Ford F-150

Select Switches & Sensors Part

2014 Ford F-150

Change vehicle

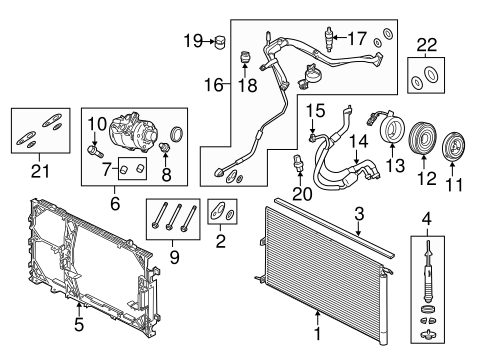

No. Part # Part # / Description List Price Price
1 AL1Z-19712-B AL1Z-19712-B / Condenser

2011-14, 6.2 LITER, FROM 7/ 31/ 13

$349.20 $234.31
2 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

Condenser Seal Kit

2011-14, 6.2 LITER

$19.27 $12.93
3 7L1Z-19E572-A 7L1Z-19E572-A / Upper Seal

2011-14, 6.2 LITER

$16.95 $12.41
4 FC3Z-19C836-A FC3Z-19C836-A / Drier

Accumulator

2011-14, 6.2 LITER

$62.29 $41.80
4 FC3Z-19C836-A FC3Z-19C836-A / Drier

F150

$62.29 $41.80
5 AL3Z-19702-A AL3Z-19702-A / Condenser Mount Bracket

Carrier

2011-14, 6.2 LITER

$78.38 $57.38
6 BL3Z-19703-C BL3Z-19703-C / Compressor Assembly

2011-14, 6.2 LITER

$576.36 $386.74
6 BL3Z-19703-C BL3Z-19703-C / Compressor Assembly

Compressor

F150; 6.2L

$576.36 $386.74
7 E9SZ-19E744-B E9SZ-19E744-B / Compressor Spacer

Compressor Assembly Spacer

2011-14, 6.2 LITER

$2.12 $1.29
8 F65Z-19D644-AA F65Z-19D644-AA / Pressure Relief Valve

Relief Valve

2011-14, 6.2 LITER

$11.76 $7.89
8 F65Z-19D644-AA F65Z-19D644-AA / Pressure Relief Valve

F150; 6.2L

$11.76 $7.89
9 -N806184-S437 -N806184-S437 / Mount Bolt

Relief Valve Mount Bolt

2011-14, 6.2 LITER

$4.16 $2.54
10 -W710797-S437M -W710797-S437M / Compressor Bolt

Relief Valve Bolt

2011-14, 6.2 LITER

$1.20 $0.73
11 8L2Z-19D786-A 8L2Z-19D786-A / Clutch Plate & Hub Assembly

Clutch

2011-14, 6.2 LITER

$57.93 $38.87
11 8L2Z-19D786-A 8L2Z-19D786-A / Clutch Plate & Hub Assembly

F150; 6.2L

$57.93 $38.87
12 8L2Z-19D784-A 8L2Z-19D784-A / Pulley

2011-14, 6.2 LITER

$117.96 $79.15
13 8L2Z-19D798-B 8L2Z-19D798-B / Clutch Coil

Coil

2011-14, 6.2 LITER

$62.29 $41.80
13 8L2Z-19D798-B 8L2Z-19D798-B / Clutch Coil

F150; 6.2L

$62.29 $41.80
14 BL3Z-19867-A BL3Z-19867-A / Suction Line

Return Hose

2011-14, 6.2 LITER

$132.02 $88.58
14 BL3Z-19867-A BL3Z-19867-A / Suction Line

F150; 6.2L

$132.02 $88.58
15 AL3Z-19972-B AL3Z-19972-B / Discharge Line

Pressure Tube

2011-14, 6.2 LITER

$169.58 $113.79
15 AL3Z-19972-B AL3Z-19972-B / Discharge Line

F150; 6.2L

$169.58 $113.79
16 DL3Z-19A834-A DL3Z-19A834-A / Suction & Discharge Hose Assembly

Hose & Tube Assembly

2011-14, 6.2 LITER

$112.75 $75.65
16 DL3Z-19A834-A DL3Z-19A834-A / Suction & Discharge Hose Assembly

F150; FROM 6/ 15/ 11

$112.75 $75.65
17 E3EZ-19D701-AA E3EZ-19D701-AA / Accumulator Valve

Valve

2011-14, 6.2 LITER, LOW PRESSURE

$7.40 $4.97
18 4L3Z-19D701-A 4L3Z-19D701-A / AC Hose Valve Assembly

Valve

2011-14, 6.2 LITER, HIGH PRESSURE

$15.87 $10.65
19 DS7Z-19D702-A DS7Z-19D702-A / Cap

Valve Cap

2011-14, 6.2 LITER

$15.85 $10.64
20 BT4Z-19D594-A BT4Z-19D594-A / Switch

2011-14, 6.2 LITER

$48.58 $32.60
20 BT4Z-19D594-A BT4Z-19D594-A / Switch

Pressure Switch

F150

$48.58 $32.60
21 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

2011-14, 6.2 LITER, 1/ 2

$19.27 $12.93
21 DL3Z-19B596-B DL3Z-19B596-B / Seal Kit

2011-14, 6.2 LITER, 5/ 8

$16.04 $10.76
22 6E5Z-19B596-A 6E5Z-19B596-A / AC Line Seal Kit

Seal Kit O-Ring

2011-14, 6.2 LITER

$35.60 $23.89
