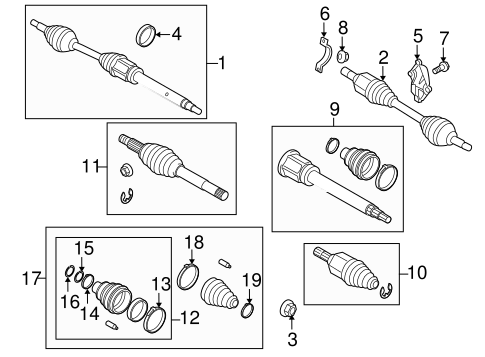

Front Suspension/Drive Axles for 2013 Ford Transit Connect

Select Drive Axles Part

2013 Ford Transit Connect

Change vehicle

No. Part # Part # / Description List Price Price
1 9T1Z-3B436-A 9T1Z-3B436-A / Axle Assembly

Axle Assembly, RIGHT

$436.96 $293.20
2 9T1Z-3B437-A 9T1Z-3B437-A / Axle Assembly

Axle Assembly, LEFT

$340.45 $228.45
3 6S4Z-3B477-AA 6S4Z-3B477-AA / Axle Nut

Axle Nut, LEFT

$14.15 $10.36
3 6S4Z-3B477-AA 6S4Z-3B477-AA / Axle Nut

Axle Nut, RIGHT

$14.15 $10.36
4 BE8Z-3K093-A BE8Z-3K093-A / Bearing

Bearing, RIGHT

$29.88 $21.87
5 4S4Z-3K305-AA 4S4Z-3K305-AA / Bracket

Bearing Bracket, RIGHT

$90.95 $66.58
6 YS4Z-3N324-AA YS4Z-3N324-AA / Bearing Retainer

Bearing Retainer, RIGHT

$2.27 $1.66
7 -W500034-S309 -W500034-S309 / Bearing Screw

Bearing Screw, RIGHT

$1.00 $0.61
8 -W520102-S440 -W520102-S440 / Bearing Nut

Bearing Nut, RIGHT

$1.06 $0.65
9 9T1Z-3B436-C 9T1Z-3B436-C / C.V Joint

C.V Joint, RIGHT

INNER

$522.38 $350.52
10 9T1Z-3B436-D 9T1Z-3B436-D / C.V Joint

C.V Joint, LEFT

INNER

$355.91 $238.82
11 9T1Z-3B436-B 9T1Z-3B436-B / C.V Joint

C.V Joint, RIGHT

OUTER

$319.69 $214.51
11 9T1Z-3A329-A 9T1Z-3A329-A / C.V Joint

C.V Joint, LEFT

OUTER

$323.88 $237.08
12 9T1Z-3A331-A 9T1Z-3A331-A / Inner Boot

Inner Boot, RIGHT

$81.96 $55.00
12 9T1Z-3A331-A 9T1Z-3A331-A / Inner Boot

Inner Boot, LEFT

$81.96 $55.00
13 2T1Z-3B478-B 2T1Z-3B478-B / Boot Clamp

Inner Boot Clamp, RIGHT

LARGE

$7.48 $5.48
13 2T1Z-3B478-B 2T1Z-3B478-B / Boot Clamp

Inner Boot Clamp, LEFT

LARGE

$7.48 $5.48
14 2T1Z-3B478-A 2T1Z-3B478-A / Boot Clamp

Inner Boot Clamp, LEFT

SMALL

$4.77 $3.49
14 2T1Z-3B478-A 2T1Z-3B478-A / Boot Clamp

Inner Boot Clamp, RIGHT

SMALL

$4.77 $3.49
15 5N5Z-3B498-A 5N5Z-3B498-A / Inner Boot Retainer

Inner Boot Retainer, LEFT

$1.95 $1.43
15 5N5Z-3B498-A 5N5Z-3B498-A / Inner Boot Retainer

Inner Boot Retainer, RIGHT

$1.95 $1.43
16 -W700859-S403 -W700859-S403 / Inner Boot Snap Ring

Inner Boot Snap Ring, RIGHT

$8.50 $5.19
16 -W700859-S403 -W700859-S403 / Inner Boot Snap Ring

Inner Boot Snap Ring, LEFT

$8.50 $5.19
17 9T1Z-3A331-B 9T1Z-3A331-B / Outer Boot

Outer Boot, LEFT

$99.31 $66.64
17 9T1Z-3A331-B 9T1Z-3A331-B / Outer Boot

Outer Boot, RIGHT

$99.31 $66.64
18 2T1Z-3B478-B 2T1Z-3B478-B / Boot Clamp

Outer Boot Clamp, RIGHT

LARGE

$7.48 $5.48
18 2T1Z-3B478-B 2T1Z-3B478-B / Boot Clamp

Outer Boot Clamp, LEFT

LARGE

$7.48 $5.48
19 2T1Z-3B478-A 2T1Z-3B478-A / Boot Clamp

Outer Boot Clamp, LEFT

SMALL

$4.77 $3.49
19 2T1Z-3B478-A 2T1Z-3B478-A / Boot Clamp

Outer Boot Clamp, RIGHT

SMALL

$4.77 $3.49
