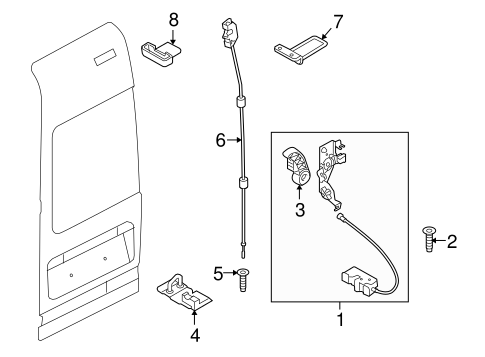

Body/Lock & Hardware for 2013 Ford Transit Connect

Select Lock & Hardware Part

2013 Ford Transit Connect

Change vehicle

No. Part # Part # / Description List Price Price
1 9T1Z-61431A03-D 9T1Z-61431A03-D / Lower Latch

Lock

TRANSIT CONNECT VAN; SECONDARY LOCK; LOWER

$193.22 $141.43
1 9T1Z-61431A03-D 9T1Z-61431A03-D / Lower Latch

Lower Latch, LEFT

DRIVER SIDE

$193.22 $141.43
2 -W505791-S443 -W505791-S443 / Lower Latch Screw

Lower Latch Screw, LEFT

DRIVER SIDE

$1.17 $0.71
3 9T1Z-6122666-B 9T1Z-6122666-B / Release Handle

Release Handle, LEFT

DRIVER SIDE

$11.78 $8.63
4 9T1Z-61264A10-C 9T1Z-61264A10-C / Lower Striker

Striker

TRANSIT CONNECT VAN; SECONDARY LOCK; LOWER

$57.78 $42.30
4 9T1Z-61264A10-C 9T1Z-61264A10-C / Lower Striker

Lower Striker, LEFT

DRIVER SIDE

$57.78 $42.30
5 -W705476-S440 -W705476-S440 / Striker Screw

Lower Striker Screw, LEFT

DRIVER SIDE

$2.13 $1.29
6 9T1Z-6143287-D 9T1Z-6143287-D / Upper Latch

Lock

TRANSIT CONNECT VAN; SECONDARY LOCK; UPPER; LEFT

$70.65 $51.72
6 9T1Z-6143287-D 9T1Z-6143287-D / Upper Latch

Upper Latch, LEFT

DRIVER SIDE

$70.65 $51.72
7 9T1Z-61264A10-A 9T1Z-61264A10-A / Upper Striker

Striker

TRANSIT CONNECT VAN; SECONDARY LOCK; UPPER; LEFT

$45.67 $33.43
7 9T1Z-61264A10-A 9T1Z-61264A10-A / Upper Striker

Upper Striker, LEFT

DRIVER SIDE

$45.67 $33.43
8 9T1Z-7832228-AB 9T1Z-7832228-AB / Upper Striker Cover

DRIVER SIDE

$7.88 $5.77
Body/Lock & Hardware for 2013 Ford Transit Connect #2
No. Part # Part # / Description List Price Price
1 9T1Z-6122404-AB 9T1Z-6122404-AB / Handle, Outside

Handle, Outside, LEFT

PRIMED

$121.78 $89.15
1 2T1Z-6122404-A 2T1Z-6122404-A / Handle, Outside

Handle, Outside, LEFT

BLACK

$57.78 $42.30
2 9T1Z-61218B08-AB 9T1Z-61218B08-AB / Button

Button, RIGHT

PRIMED

$14.67 $10.74
3 2T1Z-6122042-B 2T1Z-6122042-B / Pad

Pad, LEFT

FRONT

$10.22 $7.48
3 2T1Z-6122042-B 2T1Z-6122042-B / Pad

Pad, RIGHT

FRONT

$10.22 $7.48
4 2T1Z-6122042-A 2T1Z-6122042-A / Pad

Pad, RIGHT

REAR

$10.12 $7.41
4 2T1Z-6122042-A 2T1Z-6122042-A / Pad

Pad, LEFT

REAR

$10.12 $7.41
5 9T1Z-6126685-C 9T1Z-6126685-C / Reinforcement

Reinforcement, LEFT

$88.12 $64.50
5 9T1Z-6126684-C 9T1Z-6126684-C / Reinforcement

Reinforcement, RIGHT

$114.22 $83.61
7 2T1Z-18168-C 2T1Z-18168-C / Lock Cylinder

TRANSIT CONNECT VAN; RIGHT

$92.50 $67.71
7 2T1Z-18168-D 2T1Z-18168-D / Lock Cylinder

TRANSIT CONNECT VAN; LEFT

$92.62 $67.80
7 2T1Z-18168-D 2T1Z-18168-D / Lock Cylinder

Lock Cylinder, LEFT

$92.62 $67.80
7 2T1Z-18168-C 2T1Z-18168-C / Lock Cylinder

Lock Cylinder, RIGHT

$92.50 $67.71
8 2T1Z-6122023-A 2T1Z-6122023-A / Lock Cylinder Retainer

Lock Cylinder Retainer, RIGHT

$50.33 $36.84
8 2T1Z-6122023-A 2T1Z-6122023-A / Lock Cylinder Retainer

Lock Cylinder Retainer, LEFT

$50.33 $36.84
9 8T1Z-6122666-B 8T1Z-6122666-B / Handle, Inside

Handle, Inside, RIGHT

$64.00 $46.85
9 8T1Z-6122667-B 8T1Z-6122667-B / Handle, Inside

Handle, Inside, LEFT

$64.00 $46.85
10 8T1Z-6120586-A 8T1Z-6120586-A / Handle, Inside Cap

Handle, Inside Cap, RIGHT

UPPER

$6.38 $4.67
10 8T1Z-6120586-A 8T1Z-6120586-A / Handle, Inside Cap

Handle, Inside Cap, LEFT

UPPER

$6.38 $4.67
11 8T1Z-6120586-B 8T1Z-6120586-B / Handle, Inside Cap

Handle, Inside Cap, RIGHT

LOWER

$7.78 $5.70
11 8T1Z-6120586-B 8T1Z-6120586-B / Handle, Inside Cap

Handle, Inside Cap, LEFT

LOWER

$7.78 $5.70
13 9T1Z-6126413-A 9T1Z-6126413-A / Lock Actuator

TRANSIT CONNECT VAN; LEFT

$516.68 $378.21
13 9T1Z-6126412-B 9T1Z-6126412-B / Latch Assembly

Lock

TRANSIT CONNECT VAN; W/ O POWER DOOR LOCKS; RIGHT

$314.80 $230.43
13 9T1Z-6126413-B 9T1Z-6126413-B / Latch Assembly

Lock

TRANSIT CONNECT VAN; W/ O POWER DOOR LOCKS; LEFT

$323.22 $236.59
13 9T1Z-6126412-A 9T1Z-6126412-A / Lock Actuator

TRANSIT CONNECT VAN; RIGHT

$476.67 $348.92
13 9T1Z-6126413-A 9T1Z-6126413-A / Lock Actuator

Latch Assembly, LEFT

W/ POWER LOCKS

$516.68 $378.21
13 9T1Z-6126412-B 9T1Z-6126412-B / Latch Assembly

Latch Assembly, RIGHT

W/ MANUAL LOCKS

$314.80 $230.43
13 9T1Z-6126413-B 9T1Z-6126413-B / Latch Assembly

Latch Assembly, LEFT

W/ MANUAL LOCKS

$323.22 $236.59
13 9T1Z-6126412-A 9T1Z-6126412-A / Lock Actuator

Latch Assembly, RIGHT

W/ POWER LOCKS

$476.67 $348.92
15 8C1Z-6121850-A 8C1Z-6121850-A / Lock Knob

Lock Knob, RIGHT

$7.88 $5.77
15 8C1Z-6121850-B 8C1Z-6121850-B / Lock Knob

Lock Knob, LEFT

$12.88 $9.43
16 9T1Z-5422008-B 9T1Z-5422008-B / Striker

TRANSIT CONNECT VAN; FROM 8/ 28/ 10

$27.22 $19.92
16 9T1Z-5422008-B 9T1Z-5422008-B / Striker

Striker, LEFT

$27.22 $19.92
16 9T1Z-5422008-B 9T1Z-5422008-B / Striker

Striker, RIGHT

$27.22 $19.92
17 9T1Z-6125322-A 9T1Z-6125322-A / Striker Spacer

Striker Spacer, LEFT

$12.88 $9.43
17 9T1Z-6125322-A 9T1Z-6125322-A / Striker Spacer

Striker Spacer, RIGHT

$12.88 $9.43
18 -W705476-S440 -W705476-S440 / Striker Screw

Striker Screw, LEFT

$2.13 $1.29
19 2T1Z-14A658-B 2T1Z-14A658-B / Contact

Contact, LEFT

$28.00 $18.79
19 2T1Z-14A658-B 2T1Z-14A658-B / Contact

Contact, RIGHT

$28.00 $18.79
20 2T1Z-14A658-C 2T1Z-14A658-C / Plate

Plate, LEFT

$11.40 $7.65
20 2T1Z-14A658-C 2T1Z-14A658-C / Plate

Plate, RIGHT

$11.40 $7.65
21 2T1Z-14A658-A 2T1Z-14A658-A / Switch

Switch, RIGHT

$18.91 $12.69
21 2T1Z-14A658-A 2T1Z-14A658-A / Switch

Switch, LEFT

$18.91 $12.69
22 -W706684-S443 -W706684-S443 / Switch Screw

Switch Screw, RIGHT

$1.06 $0.65
22 -W706684-S443 -W706684-S443 / Switch Screw

Switch Screw, LEFT

$1.06 $0.65
No. Part # Part # / Description List Price Price
1 9T1Z-6122404-AB 9T1Z-6122404-AB / Handle, Outside

Handle, Outside, RIGHT

PASSENGER SIDE, PRIMED

$121.78 $89.15
1 2T1Z-6122404-A 2T1Z-6122404-A / Handle, Outside

Handle, Outside, RIGHT

PASSENGER SIDE, BLACK

$57.78 $42.30
2 2T1Z-61218B08-B 2T1Z-61218B08-B / Button

Button, RIGHT

PASSENGER SIDE

$16.45 $12.04
5 BT1Z-6126684-A BT1Z-6126684-A / Handle Base

Handle Base, RIGHT

PASSENGER SIDE, FROM 10/ 04/ 10

$72.55 $53.11
7 BT1Z-6143288-A BT1Z-6143288-A / Lower Latch

Lock

TRANSIT CONNECT VAN; PRIMARY LOCK; W/ O POWER DOOR LOCKS; FROM 9/ 4/ 09

$301.47 $220.67
7 BT1Z-6143288-B BT1Z-6143288-B / Lock Actuator

TRANSIT CONNECT VAN

$403.33 $295.24
7 BT1Z-6143288-B BT1Z-6143288-B / Lock Actuator

Lower Latch, RIGHT

PASSENGER SIDE, W/ POWER LOCKS

$403.33 $295.24
7 BT1Z-6143288-A BT1Z-6143288-A / Lower Latch

Lower Latch, RIGHT

PASSENGER SIDE, W/ MANUAL LOCKS

$301.47 $220.67
8 -W706684-S443 -W706684-S443 / Switch Screw

Lower Latch Screw, RIGHT

PASSENGER SIDE

$1.06 $0.65
9 9T1Z-5421850-B 9T1Z-5421850-B / Lock Knob

Lock Knob, RIGHT

PASSENGER SIDE

$14.12 $10.33
10 8C1Z-61264A10-A 8C1Z-61264A10-A / Lower Striker

Striker

TRANSIT CONNECT VAN; PRIMARY LOCK

$41.45 $30.34
10 8C1Z-61264A10-A 8C1Z-61264A10-A / Lower Striker

Lower Striker, RIGHT

PASSENGER SIDE

$41.45 $30.34
11 9T1Z-6125322-A 9T1Z-6125322-A / Striker Spacer

Lower Striker Spacer, RIGHT

PASSENGER SIDE

$12.88 $9.43
12 -W705476-S440 -W705476-S440 / Striker Screw

Lower Striker Screw, RIGHT

PASSENGER SIDE

$2.13 $1.29
13 9T1Z-6143286-C 9T1Z-6143286-C / Upper Latch

Lock

TRANSIT CONNECT VAN; SECONDARY LOCK; UPPER; RIGHT

$113.12 $82.80
13 9T1Z-6143286-C 9T1Z-6143286-C / Upper Latch

Upper Latch, RIGHT

PASSENGER SIDE

$113.12 $82.80
14 9T1Z-6122008-A 9T1Z-6122008-A / Upper Striker

Striker

TRANSIT CONNECT VAN; SECONDARY LOCK; UPPER; RIGHT

$45.67 $33.43
14 9T1Z-6122008-A 9T1Z-6122008-A / Upper Striker

Upper Striker, RIGHT

PASSENGER SIDE

$45.67 $33.43
15 9T1Z-7832228-AA 9T1Z-7832228-AA / Upper Striker Cover

Upper Striker Cover, RIGHT

PASSENGER SIDE

$10.33 $7.56
16 YC1Z-7806082-A YC1Z-7806082-A / Lock Cylinder

TRANSIT CONNECT VAN

$175.45 $128.43
16 YC1Z-7806082-A YC1Z-7806082-A / Lock Cylinder

Lock Cylinder, RIGHT

PASSENGER SIDE

$175.45 $128.43
No. Part # Part # / Description List Price Price
2 2T1Z-61218B08-B 2T1Z-61218B08-B / Button

Button, LEFT

BLACK

$16.45 $12.04
2 9T1Z-61218B08-AB 9T1Z-61218B08-AB / Button

Button, LEFT

PRIMED

$14.67 $10.74
5 9T1Z-6126685-D 9T1Z-6126685-D / Reinforcement

Reinforcement, LEFT

$50.33 $36.84
5 9T1Z-6126684-D 9T1Z-6126684-D / Reinforcement

Reinforcement, RIGHT

$49.12 $35.95
6 2T1Z-18168-A 2T1Z-18168-A / Lock Cylinder

TRANSIT CONNECT VAN; RIGHT

$92.50 $67.71
6 2T1Z-18168-B 2T1Z-18168-B / Lock Cylinder

TRANSIT CONNECT VAN; LEFT

$92.50 $67.71
6 2T1Z-18168-A 2T1Z-18168-A / Lock Cylinder

Lock Cylinder, RIGHT

$92.50 $67.71
6 2T1Z-18168-B 2T1Z-18168-B / Lock Cylinder

Lock Cylinder, LEFT

$92.50 $67.71
7 2T1Z-6122021-A 2T1Z-6122021-A / Lock Cylinder Retainer

Lock Cylinder Retainer, RIGHT

$30.33 $22.20
7 2T1Z-6122021-A 2T1Z-6122021-A / Lock Cylinder Retainer

Lock Cylinder Retainer, LEFT

$30.33 $22.20
8 9T1Z-6122666-A 9T1Z-6122666-A / Handle, Inside

Handle, Inside, RIGHT

$124.33 $91.01
8 9T1Z-6122667-A 9T1Z-6122667-A / Handle, Inside

Handle, Inside, LEFT

$111.78 $81.83
10 9T1Z-6121813-B 9T1Z-6121813-B / Lock Actuator

TRANSIT CONNECT VAN; LEFT

$416.77 $305.07
10 9T1Z-6121812-A 9T1Z-6121812-A / Latch

Lock

TRANSIT CONNECT VAN; W/ O POWER DOOR LOCKS; RIGHT

$268.88 $196.82
10 9T1Z-6121812-B 9T1Z-6121812-B / Lock Actuator

TRANSIT CONNECT VAN; RIGHT

$374.27 $273.96
10 9T1Z-6121813-A 9T1Z-6121813-A / Latch

Lock

TRANSIT CONNECT VAN; W/ O POWER DOOR LOCKS; LEFT

$268.88 $196.82
10 9T1Z-6121813-A 9T1Z-6121813-A / Latch

Latch, LEFT

W/ MANUAL LOCKS

$268.88 $196.82
10 9T1Z-6121813-B 9T1Z-6121813-B / Lock Actuator

Latch, LEFT

W/ POWER LOCKS

$416.77 $305.07
10 9T1Z-6121812-A 9T1Z-6121812-A / Latch

Latch, RIGHT

W/ MANUAL LOCKS

$268.88 $196.82
10 9T1Z-6121812-B 9T1Z-6121812-B / Lock Actuator

Latch, RIGHT

W/ POWER LOCKS

$374.27 $273.96
12 2T1Z*6121979*A 2T1Z*6121979*A / Shield

Shield, LEFT

- -
12 2T1Z*6121978*D 2T1Z*6121978*D / Shield

Shield, RIGHT

- -
13 -W705426-S303 -W705426-S303 / Guide Rivet

Shield Rivet, LEFT

$5.28 $3.22
13 -W705426-S303 -W705426-S303 / Guide Rivet

Shield Rivet, RIGHT

$5.28 $3.22
14 2T1Z-6122008-A 2T1Z-6122008-A / Striker

TRANSIT CONNECT VAN

$31.88 $23.34
14 2T1Z-6122008-A 2T1Z-6122008-A / Striker

Striker, LEFT

$31.88 $23.34
14 2T1Z-6122008-A 2T1Z-6122008-A / Striker

Striker, RIGHT

$31.88 $23.34
15 -W705476-S440 -W705476-S440 / Striker Screw

Striker Screw, RIGHT

$2.13 $1.29
16 2T1Z-6122801-A 2T1Z-6122801-A / Hinge

Upper Hinge, LEFT

$144.33 $105.65
16 2T1Z-6122801-B 2T1Z-6122801-B / Hinge

Upper Hinge, RIGHT

$267.50 $195.81
17 -W712753-S442 -W712753-S442 / Hinge Bolt

Upper Hinge Upper Bolt, LEFT

$1.00 $0.61
17 -W712753-S442 -W712753-S442 / Hinge Bolt

Upper Hinge Upper Bolt, RIGHT

$1.00 $0.61
18 -W702449-S442 -W702449-S442 / Hinge Bolt

Upper Hinge Lower Bolt, RIGHT

$2.13 $1.29
18 -W702449-S442 -W702449-S442 / Hinge Bolt

Upper Hinge Lower Bolt, LEFT

$2.13 $1.29
19 2T1Z-6122801-A 2T1Z-6122801-A / Hinge

Lower Hinge, RIGHT

$144.33 $105.65
19 2T1Z-6122801-B 2T1Z-6122801-B / Hinge

Lower Hinge, LEFT

$267.50 $195.81
20 -W712753-S442 -W712753-S442 / Hinge Bolt

Lower Hinge Upper Bolt, LEFT

$1.00 $0.61
20 -W712753-S442 -W712753-S442 / Hinge Bolt

Lower Hinge Upper Bolt, RIGHT

$1.00 $0.61
21 -W702449-S442 -W702449-S442 / Hinge Bolt

Lower Hinge Lower Bolt, RIGHT

$2.13 $1.29
21 -W702449-S442 -W702449-S442 / Hinge Bolt

Lower Hinge Lower Bolt, LEFT

$2.13 $1.29
22 2T1Z-6123500-B 2T1Z-6123500-B / Door Check

Door Check, RIGHT

$193.88 $141.92
22 2T1Z-6123500-B 2T1Z-6123500-B / Door Check

Door Check, LEFT

$193.88 $141.92
