Body/Hood & Components for 2013 Ford Transit Connect

Select Hood & Components Part

2013 Ford Transit Connect

Change vehicle

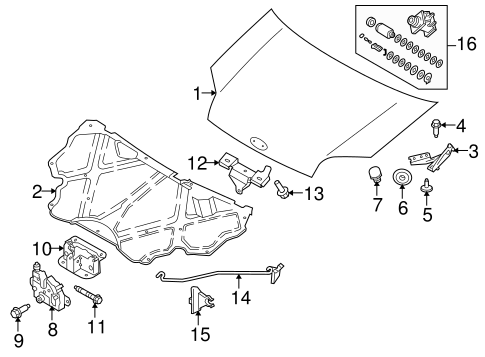

No. Part # Part # / Description List Price Price
1 7T1Z-16612-A 7T1Z-16612-A / Hood

$963.40 $705.21
3 2T1Z-16797-A 2T1Z-16797-A / Hinge

Hinge, LEFT

$66.33 $48.56
3 2T1Z-16796-A 2T1Z-16796-A / Hinge

Hinge, RIGHT

$69.45 $50.84
4 -W702449-S442 -W702449-S442 / Hinge Bolt

Hinge Bolt, LEFT

$2.13 $1.29
4 -W702449-S442 -W702449-S442 / Hinge Bolt

Hinge Bolt, RIGHT

$2.13 $1.29
5 -W705162-S442 -W705162-S442 / Front Bracket Bolt

Hinge Screw, LEFT

M6X15MM

$1.20 $0.73
5 -W709051-S442 -W709051-S442 / Hinge Screw

Hinge Screw, RIGHT

M8X25MM

$1.00 $0.61
5 -W705162-S442 -W705162-S442 / Front Bracket Bolt

Hinge Screw, RIGHT

M6X15MM

$1.20 $0.73
5 -W709051-S442 -W709051-S442 / Hinge Screw

Hinge Screw, LEFT

M8X25MM

$1.00 $0.61
6 -W700510-S300 -W700510-S300 / Support Rod Retainer

Hinge Grommet, RIGHT

$4.31 $2.62
6 -W700510-S300 -W700510-S300 / Support Rod Retainer

Hinge Grommet, LEFT

$4.31 $2.62
7 F5RZ-16758-A F5RZ-16758-A / Hood Bumper

Hood Bumper, RIGHT

$9.69 $7.09
7 F5RZ-16758-A F5RZ-16758-A / Hood Bumper

Hood Bumper, LEFT

$9.69 $7.09
8 8T1Z-16700-A 8T1Z-16700-A / Latch

$77.15 $56.47
8 8T1Z-16700-A 8T1Z-16700-A / Latch

Lock

TRANSIT CONNECT VAN

$77.15 $56.47
9 -W500212-S301 -W500212-S301 / Latch Screw

M6X14MM

- -
9 -W500011-S437 -W500011-S437 / Support Plate Bolt

Latch Screw

M6X12MM

$1.06 $0.65
10 7T1Z-16707-A 7T1Z-16707-A / Support Plate

$49.67 $36.36
11 -W500011-S437 -W500011-S437 / Support Plate Bolt

M6X12MM

$1.06 $0.65
11 -W500303-S442 -W500303-S442 / Support Plate Bolt

M6X40MM

$1.28 $0.78
12 7T1Z-16K689-A 7T1Z-16K689-A / Striker

$41.18 $30.15
13 -W505252-S439 -W505252-S439 / Splash Shield Bolt

Striker Bolt

$1.06 $0.65
14 8T1Z-16826-A 8T1Z-16826-A / Support Rod

$24.08 $17.63
15 8T1Z-16828-A 8T1Z-16828-A / Support Rod Holder

$5.34 $3.26
16 DT1Z-16C826-A DT1Z-16C826-A / Lock & Cylinder

HOOD LATCH, FROM 9/ 04/ 12

$85.60 $62.66
16 7T1Z-3697-B 7T1Z-3697-B / Lock & Cylinder

HOOD LATCH, TO 9/ 03/ 12

$199.67 $146.16
