HVAC/Condenser, Compressor & Lines for 2013 Ford Flex

Select Condenser, Compressor & Lines Part

2013 Ford Flex

Change vehicle

No. Part # Part # / Description List Price Price
1 DG1Z-19850-B DG1Z-19850-B / Evaporator Assembly

Evaporator Core

FLEX; W/ DUAL ZONE CONTROL

$278.42 $203.80
1 DG1Z-19850-B DG1Z-19850-B / Evaporator Assembly

AC & Heater Assembly

W/ DUAL ZONE AC

$278.42 $203.80
2 AG1Z-19B739-A AG1Z-19B739-A / Evaporator Assembly Seal

Seal

W/ DUAL ZONE AC

$14.32 $10.48
4 BB5Z-19B588-A BB5Z-19B588-A / Expansion Valve Gasket

Gasket

W/ DUAL ZONE AC

$20.90 $15.30
8 AA5Z-19E616-C AA5Z-19E616-C / Adjust Motor

Motor

W/ DUAL ZONE AC, MODE

$30.84 $20.69
9 AA5Z-19E616-C AA5Z-19E616-C / Adjust Motor

Motor, RIGHT

W/ DUAL ZONE AC, TEMP

$30.84 $20.69
10 AA5Z-19E616-C AA5Z-19E616-C / Adjust Motor

Door Actuator

FLEX; TEMPERATURE BLEND DOOR; W/ O DUAL ZONE CONTROL

$30.84 $20.69
10 AA5Z-19E616-C AA5Z-19E616-C / Adjust Motor

Motor, LEFT

W/ DUAL ZONE AC, TEMP

$30.84 $20.69
11 AA5Z-19E616-A AA5Z-19E616-A / Adjust Motor

Door Actuator

FLEX; DEFROST/ PANEL/ FLOOR DOOR

$36.40 $24.42
11 AA5Z-19E616-A AA5Z-19E616-A / Adjust Motor

Motor

W/ DUAL ZONE AC, DEFROST

$36.40 $24.42
12 8G1Z-19D887-AA 8G1Z-19D887-AA / Wire Harness

W/ DUAL ZONE AC

$20.55 $15.04
15 AE9Z-19B735-A AE9Z-19B735-A / Cover

W/ DUAL ZONE AC

$16.12 $11.80
17 CG1Z-18476-B CG1Z-18476-B / Heater Core

W/ DUAL ZONE AC

$131.40 $88.17

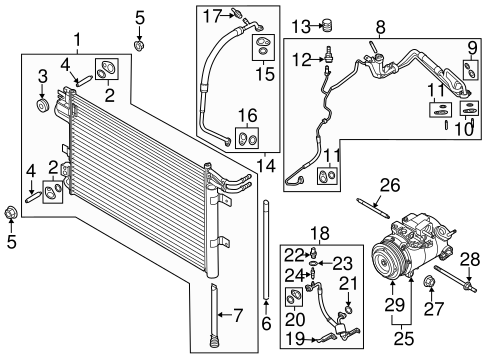

HVAC/Condenser, Compressor & Lines for 2013 Ford Flex #2
No. Part # Part # / Description List Price Price
1 EG1Z-19712-D EG1Z-19712-D / Condenser

FLEX; W/ O TURBO

$285.04 $191.26
2 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

Condenser Gasket

3.5 LITER W/ O TURBOCHARGER, 2013-18

$19.27 $12.93
3 BB5Z-19C566-A BB5Z-19C566-A / Condenser Insulator

3.5 LITER W/ O TURBOCHARGER, 2013-18

$2.32 $1.70
4 -W701890-S439 -W701890-S439 / Stud

Condenser Stud

3.5 LITER W/ O TURBOCHARGER, 2013-18

$7.50 $4.58
5 -W520413-S441 -W520413-S441 / Condenser Nut

3.5 LITER W/ O TURBOCHARGER, 2013-18

$1.50 $0.92
7 BB5Z-19C836-A BB5Z-19C836-A / Drier

FLEX; W/ O TURBO; TO 1/ 22/ 14

$31.33 $21.02
7 BB5Z-19C836-A BB5Z-19C836-A / Drier

Dehydrator

3.5 LITER W/ O TURBOCHARGER, 2013-18, TO 01/ 22/ 2014

$31.33 $21.02
8 DA8Z-19A834-K DA8Z-19A834-K / Evaporator Tube Bracket

Evaporator Tube

3.5 LITER W/ O TURBOCHARGER, 2013-18

$27.31 $18.32
9 6E5Z-19B596-A 6E5Z-19B596-A / AC Line Seal Kit

Evaporator Tube Upper Seal

3.5 LITER W/ O TURBOCHARGER, 2013-18

$35.60 $23.89
10 DL3Z-19B596-B DL3Z-19B596-B / Seal Kit

Evaporator Tube Lower Seal

3.5 LITER W/ O TURBOCHARGER, 2013-18, 5/ 8

$16.04 $10.76
11 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

Evaporator Tube Lower Seal

3.5 LITER W/ O TURBOCHARGER, 2013-18, 1/ 2

$19.27 $12.93
12 4L3Z-19D701-A 4L3Z-19D701-A / AC Hose Valve Assembly

Evaporator Tube Valve

3.5 LITER W/ O TURBOCHARGER, 2013-18

$15.87 $10.65
13 DS7Z-19D702-A DS7Z-19D702-A / Cap

Evaporator Tube Cap

3.5 LITER W/ O TURBOCHARGER, 2013-18

$15.85 $10.64
14 DE9Z-19867-A DE9Z-19867-A / Suction Tube

AC Hoses

EVAPORATOR TO COMPRESSOR; FLEX; FRONT; W/ O TURBO

$59.33 $39.81
14 DE9Z-19867-A DE9Z-19867-A / Suction Tube

3.5 LITER W/ O TURBOCHARGER, 2013-18

$59.33 $39.81
15 DL3Z-19B596-B DL3Z-19B596-B / Seal Kit

Suction Tube Upper Seal

3.5 LITER W/ O TURBOCHARGER, 2013-18

$16.04 $10.76
16 DL3Z-19B596-B DL3Z-19B596-B / Seal Kit

Suction Tube Lower Seal

3.5 LITER W/ O TURBOCHARGER, 2013-18

$16.04 $10.76
17 F7RZ-19D701-BA F7RZ-19D701-BA / Hose & Tube Assembly Valve Assembly

Suction Tube Valve

3.5 LITER W/ O TURBOCHARGER, 2013-18

$23.42 $15.71
18 HG1Z-19972-C HG1Z-19972-C / Tube Assembly

AC Hoses

COMPRESSOR TO CONDENSER; FLEX; W/ O TURBO; TO 12/ 7/ 16

$70.80 $47.51
18 HG1Z-19972-C HG1Z-19972-C / Tube Assembly

Pressure Tube

3.5 LITER W/ O TURBOCHARGER, 2013-18, TO 12/ 07/ 2016

$70.80 $47.51
19 DG1Z-19D738-A DG1Z-19D738-A / Tube Assembly Bracket

Pressure Tube Bracket

3.5 LITER W/ O TURBOCHARGER, 2013-18

$7.28 $5.33
20 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

Pressure Tube Upper Seal

3.5 LITER W/ O TURBOCHARGER, 2013-18

$19.27 $12.93
21 DS7Z-19B596-A DS7Z-19B596-A / Hose & Tube Assembly O-Ring

Pressure Tube Lower Seal

3.5 LITER W/ O TURBOCHARGER, 2013-18

$24.87 $16.69
22 HG1Z-19D594-A HG1Z-19D594-A / Pressure Switch

3.5 LITER W/ O TURBOCHARGER, 2013-18

$29.58 $19.85
23 1W1Z-19E889-HB 1W1Z-19E889-HB / Pressure Switch O-Ring

Pressure Switch Seal

3.5 LITER W/ O TURBOCHARGER, 2013-18

$1.26 $0.84
24 E3EZ-19D701-AA E3EZ-19D701-AA / Accumulator Valve

Pressure Switch Valve

3.5 LITER W/ O TURBOCHARGER, 2013-18

$7.40 $4.97
25 FB5Z-19703-B FB5Z-19703-B / Compressor Assembly

Compressor

FLEX

$567.07 $380.51
25 FB5Z-19703-B FB5Z-19703-B / Compressor Assembly

3.5 LITER W/ O TURBOCHARGER, 2013-18

$567.07 $380.51
26 -W712610-S439 -W712610-S439 / Compressor Assembly Mount Stud

Compressor Assembly Stud

3.5 LITER W/ O TURBOCHARGER, 2013-18

$3.50 $2.14
27 -W520413-S442 -W520413-S442 / Compressor Assembly Nut

3.5 LITER W/ O TURBOCHARGER, 2013-18

$2.50 $1.53
28 -W715823-S442 -W715823-S442 / Compressor Assembly Mount Stud

3.5 LITER W/ O TURBOCHARGER, 2013-18

$4.50 $2.75
29 FB5Z-19D786-B FB5Z-19D786-B / Clutch & Pulley

Clutch

FLEX

$192.95 $129.47
29 FB5Z-19D786-B FB5Z-19D786-B / Clutch & Pulley

3.5 LITER W/ O TURBOCHARGER, 2013-18

$192.95 $129.47
No. Part # Part # / Description List Price Price
N/A DA8Z-19A834-D DA8Z-19A834-D / AC Hoses

EVAPORATOR TO COMPRESSOR; FLEX; REAR; W/ O TURBO

$107.02 $71.81
