Electrical/Senders for 2013 Ford Flex

Select Senders Part

2013 Ford Flex

Change vehicle

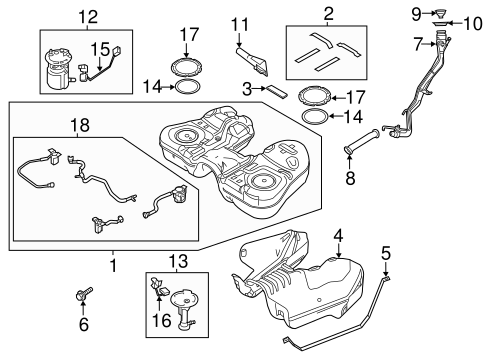

No. Part # Part # / Description List Price Price
1 DA8Z-9002-A DA8Z-9002-A / Fuel Tank

2013-17

$1,130.75 $827.71
2 DA8Z-9A068-A DA8Z-9A068-A / Fuel Tank Insulator

2013-17, FRONT

$72.19 $41.39
3 DA8Z-9A068-B DA8Z-9A068-B / Fuel Tank Insulator

2013-17, REAR

$43.62 $25.01
4 DA8Z-9A032-B DA8Z-9A032-B / Heat Shield

2013-17

$184.26 $105.65
5 8A4Z-9092-D 8A4Z-9092-D / Tank Strap

Tank Strap, RIGHT

2013-17

$71.02 $40.72
5 BB5Z-9054-B BB5Z-9054-B / Tank Strap

Tank Strap, LEFT

2013-17

$36.19 $20.75
6 -W716198-S439 -W716198-S439 / Tank Strap Bolt

Tank Strap Bolt, RIGHT

2013-17

$1.00 $0.61
6 -W716198-S439 -W716198-S439 / Tank Strap Bolt

Tank Strap Bolt, LEFT

2013-17

$1.00 $0.61
7 DA8Z-9034-B DA8Z-9034-B / Filler Pipe

2013-17, W/ AWD

$158.73 $116.19
7 DG1Z-9034-F DG1Z-9034-F / Filler Pipe

2013-17, W/ O AWD

$96.55 $70.67
8 DA8Z-9047-A DA8Z-9047-A / Filler Hose

2013-17

$18.10 $13.25
10 AU5Z-9K072-A AU5Z-9K072-A / Filler Pipe Bezel

Plug Bezel

2013-17

$6.82 $4.58
11 8U5Z-17B068-B 8U5Z-17B068-B / Filler Tube

2013-17

$6.65 $4.87
12 DA8Z-9H307-J DA8Z-9H307-J / Fuel Pump

Fuel Pump Assembly, RIGHT

2013-17, W/ O TURBOCHARGER

$232.04 $155.70
12 DA8Z-9H307-J DA8Z-9H307-J / Fuel Pump

FLEX; W/ O TURBO; PRIMARY; TO 7/ 23/ 14

$232.04 $155.70
13 DA8Z-9275-A DA8Z-9275-A / Fuel Pump Assembly

Fuel Pump Assembly, LEFT

2013-17, W/ O TURBOCHARGER

$68.05 $45.66
13 DA8Z-9275-A DA8Z-9275-A / Fuel Pump Assembly

Fuel Pump

FLEX; W/ O TURBO; SECONDARY

$68.05 $45.66
14 4L3Z-9276-AA 4L3Z-9276-AA / Fuel Sender Unit Gasket

Fuel Pump Assembly Gasket, LEFT

2013-17

$6.93 $4.65
14 4L3Z-9276-AA 4L3Z-9276-AA / Fuel Sender Unit Gasket

Fuel Pump Assembly Gasket, RIGHT

2013-17

$6.93 $4.65
15 DA8Z-9A299-D DA8Z-9A299-D / Fuel Gauge Sending Unit

Level Sensor, RIGHT

2013-17, W/ O TURBOCHARGER

$28.96 $19.43
15 DA8Z-9A299-D DA8Z-9A299-D / Fuel Gauge Sending Unit

FLEX; PRIMARY; W/ O TURBO

$28.96 $19.43
16 DA8Z-9A299-C DA8Z-9A299-C / Fuel Gauge Sending Unit

Level Sensor, LEFT

2013-17, W/ O TURBOCHARGER

$26.87 $18.03
16 DA8Z-9A299-C DA8Z-9A299-C / Fuel Gauge Sending Unit

FLEX; SECONDARY

$26.87 $18.03
17 4L2Z-9C385-AA 4L2Z-9C385-AA / Lock Ring

Lock Ring, RIGHT

2013-17

$15.51 $10.41
17 4L2Z-9C385-AA 4L2Z-9C385-AA / Lock Ring

Lock Ring, LEFT

2013-17

$15.51 $10.41
18 DA8Z-9K318-A DA8Z-9K318-A / Pressure Valve

Pressure Sensor

2013-17

$63.90 $46.77
No. Part # Part # / Description List Price Price
N/A GC3Z-9278-A GC3Z-9278-A / Oil Pressure Sending Unit

FLEX

$5.67 $3.81
