Electrical/Bulbs - Chassis for 2013 Ford Flex

Select Bulbs - Chassis Part

2013 Ford Flex

Change vehicle

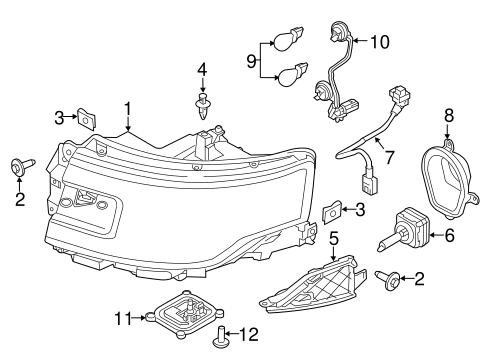

No. Part # Part # / Description List Price Price
1 DA8Z-13008-H DA8Z-13008-H / Composite Assembly 1

FLEX; LEFT; W/ HID; ALL

$927.90 $679.22
1 DA8Z-13008-G DA8Z-13008-G / Composite Assembly 1

FLEX; RIGHT; W/ HID; ALL

$789.35 $577.80
1 DA8Z-13008-G DA8Z-13008-G / Composite Assembly 1

Headlamp, RIGHT

2013-18, W/ HID LAMPS

$789.35 $577.80
1 DA8Z-13008-H DA8Z-13008-H / Composite Assembly 1

Headlamp, LEFT

2013-18, W/ HID LAMPS

$927.90 $679.22
2 -W505425-S439 -W505425-S439 / Park Lamp Assembly Bolt

Headlamp Bolt, RIGHT

2013-18, W/ HID LAMPS

$3.00 $1.83
2 -W505425-S439 -W505425-S439 / Park Lamp Assembly Bolt

Headlamp Bolt, LEFT

2013-18, W/ HID LAMPS

$3.00 $1.83
4 -W709984-S300 -W709984-S300 / Headlamp Assembly Rivet

Headlamp Pin, LEFT

2013-18, W/ HID LAMPS

$2.50 $1.53
4 -W709984-S300 -W709984-S300 / Headlamp Assembly Rivet

Headlamp Pin, RIGHT

2013-18, W/ HID LAMPS

$2.50 $1.53
5 DA8Z-17C972-B DA8Z-17C972-B / Support

Support, RIGHT

2013-18, W/ HID LAMPS

$26.57 $19.45
6 7L7Z-13N021-A 7L7Z-13N021-A / Hid Bulb

Headlamp Bulb

FLEX; W/ HID

$380.20 $278.31
6 7L7Z-13N021-A 7L7Z-13N021-A / Hid Bulb

Hid Bulb, RIGHT

2013-18, W/ HID LAMPS

$380.20 $278.31
6 7L7Z-13N021-A 7L7Z-13N021-A / Hid Bulb

Hid Bulb, LEFT

2013-18, W/ HID LAMPS

$380.20 $278.31
7 DA5Z-13A006-A DA5Z-13A006-A / Wire

Wire, LEFT

2013-18, W/ HID LAMPS

$22.25 $16.29
7 DA5Z-13A006-A DA5Z-13A006-A / Wire

Wire, RIGHT

2013-18, W/ HID LAMPS

$22.25 $16.29
8 DA8Z-13N019-A DA8Z-13N019-A / Dust Cover

Dust Cover, RIGHT

2013-18, W/ HID LAMPS

$21.67 $15.86
8 DA8Z-13N019-A DA8Z-13N019-A / Dust Cover

Dust Cover, LEFT

2013-18, W/ HID LAMPS

$21.67 $15.86
9 DA8Z-13466-B DA8Z-13466-B / Signal Lamp Bulb

Exterior Bulbs

FLEX; FRONT TURN SIGNAL

$5.63 $4.12
9 DA8Z-13466-B DA8Z-13466-B / Signal Lamp Bulb

Signal Lamp Bulb, RIGHT

2013-18, W/ HID LAMPS

$5.63 $4.12
10 DA8Z-13A006-B DA8Z-13A006-B / Socket & Wire

Socket & Wire, RIGHT

2013-18, W/ HID LAMPS

$17.90 $13.10
11 DL3Z-13C170-A DL3Z-13C170-A / Control Module

Module

BALLAST MODULE; FLEX

$502.62 $275.94
11 DL3Z-13C170-A DL3Z-13C170-A / Control Module

Ballast, RIGHT

2013-18, W/ HID LAMPS

$502.62 $275.94
11 DL3Z-13C170-A DL3Z-13C170-A / Control Module

Ballast, LEFT

2013-18, W/ HID LAMPS

$502.62 $275.94
12 -W715133-S900 -W715133-S900 / Ballast Screw

Ballast Screw, RIGHT

2013-18, W/ HID LAMPS

$5.50 $3.36
12 -W715133-S900 -W715133-S900 / Ballast Screw

Ballast Screw, LEFT

2013-18, W/ HID LAMPS

$5.50 $3.36
No. Part # Part # / Description List Price Price
1 DA8Z-13008-C DA8Z-13008-C / Composite Assembly

FLEX; LEFT; W/ O HID

$649.61 $634.02
1 DA8Z-13008-A DA8Z-13008-A / Composite Assembly

FLEX; RIGHT; W/ O HID

$687.20 $670.71
1 DA8Z-13008-A DA8Z-13008-A / Composite Assembly

Headlamp Assembly, RIGHT

2013-18, W/ O HID LAMPS

$687.20 $670.71
1 DA8Z-13008-C DA8Z-13008-C / Composite Assembly

Headlamp Assembly, LEFT

2013-18, W/ O HID LAMPS

$649.61 $634.02
2 -W505425-S439 -W505425-S439 / Park Lamp Assembly Bolt

Headlamp Assembly Bolt, LEFT

2013-18, W/ O HID LAMPS

$3.00 $1.83
2 -W505425-S439 -W505425-S439 / Park Lamp Assembly Bolt

Headlamp Assembly Bolt, RIGHT

2013-18, W/ O HID LAMPS

$3.00 $1.83
4 -W709984-S300 -W709984-S300 / Headlamp Assembly Rivet

Headlamp Assembly Pin, LEFT

2013-18, W/ O HID LAMPS

$2.50 $1.53
4 -W709984-S300 -W709984-S300 / Headlamp Assembly Rivet

Headlamp Assembly Pin, RIGHT

2013-18, W/ O HID LAMPS

$2.50 $1.53
5 DA8Z-17C973-A DA8Z-17C973-A / Support

Support, LEFT

2013-18, W/ O HID LAMPS

$26.57 $19.45
6 5C3Z-13N021-AA 5C3Z-13N021-AA / Headlamp Bulb

FLEX; W/ O HID

$26.12 $19.12
6 5C3Z-13N021-AA 5C3Z-13N021-AA / Headlamp Bulb

Headlamp Bulb, LEFT

2013-18, W/ O HID LAMPS

$26.12 $19.12
6 5C3Z-13N021-AA 5C3Z-13N021-AA / Headlamp Bulb

Headlamp Bulb, RIGHT

2013-18, W/ O HID LAMPS

$26.12 $19.12
7 8A8Z-13N019-A 8A8Z-13N019-A / Headlamp Bulb Retainer

Headlamp Bulb Retainer, RIGHT

2013-18, W/ O HID LAMPS

$25.55 $18.70
7 8A8Z-13N019-A 8A8Z-13N019-A / Headlamp Bulb Retainer

Headlamp Bulb Retainer, LEFT

2013-18, W/ O HID LAMPS

$25.55 $18.70
9 DA8Z-13466-B DA8Z-13466-B / Signal Lamp Bulb

Signal Lamp Bulb, LEFT

2013-18, W/ O HID LAMPS

$5.63 $4.12
10 DA8Z-13A006-B DA8Z-13A006-B / Socket & Wire

Socket & Wire, LEFT

2013-18, W/ O HID LAMPS

$17.90 $13.10
No. Part # Part # / Description List Price Price
1 8T5Z-13550-B 8T5Z-13550-B / License Lamp

License Lamp, RIGHT

$6.85 $5.01
1 8T5Z-13550-B 8T5Z-13550-B / License Lamp

License Lamp, LEFT

$6.85 $5.01
2 F5RZ-13466-C F5RZ-13466-C / Bulb

Exterior Bulbs

FLEX; LICENSE PLATE LAMP

$1.82 $1.33
2 F5RZ-13466-C F5RZ-13466-C / Bulb

License Lmp Bulb, RIGHT

$1.82 $1.33
2 F5RZ-13466-C F5RZ-13466-C / Bulb

License Lmp Bulb, LEFT

$1.82 $1.33
No. Part # Part # / Description List Price Price
1 CA8Z-13405-A CA8Z-13405-A / Tail Lamp Assembly

Tail Lamp Assembly, LEFT

W/ O LED

$206.30 $151.01
1 CA8Z-13404-A CA8Z-13404-A / Tail Lamp Assembly

Tail Lamp Assembly, RIGHT

W/ O LED

$206.30 $151.01
2 -W712801-S900 -W712801-S900 / Tail Lamp Assembly Screw

Tail Lamp Assembly Screw, LEFT

W/ O LED

$3.50 $2.14
2 -W712801-S900 -W712801-S900 / Tail Lamp Assembly Screw

Tail Lamp Assembly Screw, RIGHT

W/ O LED

$3.50 $2.14
3 -W711031-S300 -W711031-S300 / Tail Lamp Assembly Retainer Nut

Tail Lamp Assembly Nut, RIGHT

W/ O LED

$2.50 $1.53
4 YL8Z-13A457-AA YL8Z-13A457-AA / Tail Lamp Assembly Grommet

Tail Lamp Assembly Upper Insulator, RIGHT

W/ O LED

$0.56 $0.40
6 8A8Z-13410-A 8A8Z-13410-A / Socket & Wire

Socket & Wire, LEFT

W/ O LED

$57.22 $41.88
6 8A8Z-13410-A 8A8Z-13410-A / Socket & Wire

Socket & Wire, RIGHT

W/ O LED

$57.22 $41.88
7 6E5Z-13466-AC 6E5Z-13466-AC / Park Lamp Bulb

Exterior Bulbs

FLEX; REAR TURN SIGNAL

$2.72 $1.99
7 6E5Z-13466-AC 6E5Z-13466-AC / Park Lamp Bulb

Tail Lamp Bulb, RIGHT

W/ O LED

$2.72 $1.99
7 6E5Z-13466-AC 6E5Z-13466-AC / Park Lamp Bulb

Tail Lamp Bulb, LEFT

W/ O LED

$2.72 $1.99
8 E6DZ-13466-B E6DZ-13466-B / Bulb

Backup Lamp Bulb, RIGHT

W/ O LED

$3.75 $2.75
9 C7SZ-13466-B C7SZ-13466-B / O'head Lamp Bulb

Exterior Bulbs

FLEX; REAR TAIL LAMP; #168

$1.18 $0.87
9 C7SZ-13466-B C7SZ-13466-B / O'head Lamp Bulb

Signal Bulb, LEFT

W/ O LED

$1.18 $0.87
9 C7SZ-13466-B C7SZ-13466-B / O'head Lamp Bulb

Signal Bulb, RIGHT

W/ O LED

$1.18 $0.87
10 C2AZ-13466-C C2AZ-13466-C / Bulb

Exterior Bulbs

FLEX; REAR SIDE MARKER

$0.94 $0.68
10 C2AZ-13466-C C2AZ-13466-C / Bulb

Marker Lamp Bulb, RIGHT

W/ O LED

$0.94 $0.68
10 C2AZ-13466-C C2AZ-13466-C / Bulb

Marker Lamp Bulb, LEFT

W/ O LED

$0.94 $0.68
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
