Brakes/Rear Brakes for 2013 Ford Flex

Select Rear Brakes Part

2013 Ford Flex

Change vehicle

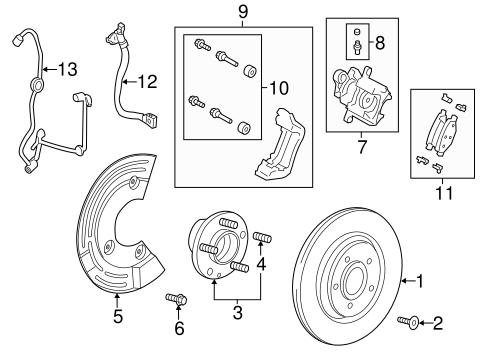

No. Part # Part # / Description List Price Price
1 AG1Z-2C026-A AG1Z-2C026-A / Rotor

Rotor, LEFT

W/ AWD, W/ O HD BRAKES

$98.07 $65.81
1 AG1Z-2C026-A AG1Z-2C026-A / Rotor

Rotor, RIGHT

W/ AWD, W/ O HD BRAKES

$98.07 $65.81
1 DG1Z-2C026-A DG1Z-2C026-A / Rotor

Rotor, LEFT

W/ AWD, W/ HD BRAKES

$98.07 $65.81
1 AG1Z-2C026-A AG1Z-2C026-A / Rotor

FLEX; STANDARD DUTY

$98.07 $65.81
2 -W708733-S439 -W708733-S439 / Rotor Bolt

Rotor Bolt, LEFT

W/ AWD

$7.63 $4.65
3 BT4Z-1104-B BT4Z-1104-B / Hub Assembly

Hub Assembly, RIGHT

W/ AWD

$301.98 $202.63
4 8A8Z-1107-A 8A8Z-1107-A / Wheel Stud

Wheel Stud, LEFT

W/ AWD

$13.07 $9.56
5 DG1Z-2C028-A DG1Z-2C028-A / Splash Shield

Splash Shield, RIGHT

W/ AWD, FROM 09/ 29/ 2010, W/ HD BRAKES

$7.82 $5.25
5 DG1Z-2C028-B DG1Z-2C028-B / Splash Shield

Splash Shield, RIGHT

W/ AWD, FROM 09/ 29/ 2010, W/ O HD BRAKES

$8.40 $5.64
5 DG1Z-2C029-A DG1Z-2C029-A / Splash Shield

Splash Shield, LEFT

W/ AWD, FROM 09/ 29/ 2010, W/ HD BRAKES

$7.82 $5.25
5 DG1Z-2C029-A DG1Z-2C029-A / Splash Shield

FLEX; LEFT; FROM 9/ 29/ 10; HEAVY DUTY

$7.82 $5.25
5 DG1Z-2C028-A DG1Z-2C028-A / Splash Shield

FLEX; RIGHT; FROM 9/ 29/ 10; HEAVY DUTY

$7.82 $5.25
5 DG1Z-2C028-B DG1Z-2C028-B / Splash Shield

FLEX; RIGHT; FROM 9/ 29/ 10; STANDARD DUTY

$8.40 $5.64
6 -W505255-S439 -W505255-S439 / Splash Shield Screw

Splash Shield Screw, LEFT

W/ AWD

$1.06 $0.65
7 FB5Z-2553-A FB5Z-2553-A / Caliper1

Caliper, LEFT

W/ AWD, W/ O HD BRAKES

$105.76 $70.97
7 EG1Z-2553-A EG1Z-2553-A / Caliper1

Caliper, LEFT

W/ AWD, W/ HD BRAKES

$130.15 $87.33
7 FB5Z-2553-A FB5Z-2553-A / Caliper1

FLEX; LEFT; STANDARD DUTY; TO 12/ 2/ 13

$105.76 $70.97
7 EG1Z-2553-A EG1Z-2553-A / Caliper1

FLEX; LEFT; HEAVY DUTY

$130.15 $87.33
9 FG1Z-2B511-A FG1Z-2B511-A / Caliper Support

Caliper Support, LEFT

W/ AWD, W/ HD BRAKES, TO 01/ 18/ 2015

$34.09 $22.88
10 8A8Z-2386-A 8A8Z-2386-A / Repair Kit

Caliper Support Mount Kit, LEFT

W/ AWD

$18.29 $12.27
11 FG1Z-2200-A FG1Z-2200-A / Brake Pads

W/ AWD, W/ HD BRAKES

$72.69 $48.78
11 FB5Z-2200-A FB5Z-2200-A / Brake Pads

W/ AWD, W/ O HD BRAKES

$72.69 $48.78
11 FB5Z-2200-A FB5Z-2200-A / Brake Pads

Rear Pads

FLEX; STANDARD DUTY; TO 12/ 7/ 15

$72.69 $48.78
11 FG1Z-2200-A FG1Z-2200-A / Brake Pads

Rear Pads

FLEX; HEAVY DUTY

$72.69 $48.78
No. Part # Part # / Description List Price Price
1 DG1Z-2C026-A DG1Z-2C026-A / Rotor

Rotor, RIGHT

W/ O AWD, W/ HD BRAKES

$98.07 $65.81
1 DG1Z-2C026-A DG1Z-2C026-A / Rotor

FLEX; HEAVY DUTY

$98.07 $65.81
2 -W708733-S439 -W708733-S439 / Rotor Bolt

Rotor Bolt, RIGHT

W/ O AWD

$7.63 $4.65
3 BT4Z-1104-B BT4Z-1104-B / Hub Assembly

Hub Assembly, LEFT

W/ O AWD

$301.98 $202.63
4 8A8Z-1107-A 8A8Z-1107-A / Wheel Stud

Wheel Stud, RIGHT

W/ O AWD

$13.07 $9.56
5 DG1Z-2C029-B DG1Z-2C029-B / Splash Shield

Splash Shield, LEFT

W/ O AWD, FROM 09/ 29/ 2010, W/ O HD BRAKES

$8.18 $5.49
5 DG1Z-2C029-B DG1Z-2C029-B / Splash Shield

FLEX; LEFT; FROM 9/ 29/ 10; STANDARD DUTY

$8.18 $5.49
6 -W505255-S439 -W505255-S439 / Splash Shield Screw

Splash Shield Screw, RIGHT

W/ O AWD

$1.06 $0.65
7 FB5Z-2552-A FB5Z-2552-A / Caliper1

Caliper, RIGHT

W/ O AWD, W/ O HD BRAKES

$105.76 $70.97
7 EG1Z-2552-A EG1Z-2552-A / Caliper1

Caliper, RIGHT

W/ O AWD, W/ HD BRAKES

$118.31 $79.39
7 FB5Z-2552-A FB5Z-2552-A / Caliper1

FLEX; RIGHT; STANDARD DUTY; TO 12/ 2/ 13

$105.76 $70.97
7 EG1Z-2552-A EG1Z-2552-A / Caliper1

FLEX; RIGHT; HEAVY DUTY

$118.31 $79.39
8 BT4Z-2208-A BT4Z-2208-A / Caliper Bleeder Screw

Caliper Bleeder Screw, LEFT

W/ O AWD, W/ O HD BRAKES

$6.49 $4.36
8 DG1Z-2208-A DG1Z-2208-A / Caliper Bleeder Screw

Caliper Bleeder Screw, LEFT

W/ O AWD, W/ HD BRAKES

$6.31 $4.23
8 DG1Z-2208-A DG1Z-2208-A / Caliper Bleeder Screw

Caliper Bleeder Screw, RIGHT

W/ O AWD, W/ HD BRAKES

$6.31 $4.23
8 BT4Z-2208-A BT4Z-2208-A / Caliper Bleeder Screw

Caliper Bleeder Screw, RIGHT

W/ O AWD, W/ O HD BRAKES

$6.49 $4.36
9 CT4Z-2B511-A CT4Z-2B511-A / Caliper Support

Caliper Support, RIGHT

W/ O AWD, W/ O HD BRAKES

$48.53 $32.56
9 FG1Z-2B511-A FG1Z-2B511-A / Caliper Support

Caliper Support, RIGHT

W/ O AWD, W/ HD BRAKES, TO 01/ 18/ 2015

$34.09 $22.88
9 CT4Z-2B511-A CT4Z-2B511-A / Caliper Support

Caliper Support, LEFT

W/ O AWD, W/ O HD BRAKES

$48.53 $32.56
10 8A8Z-2386-A 8A8Z-2386-A / Repair Kit

Caliper Support Mount Kit, RIGHT

W/ O AWD

$18.29 $12.27
12 8A8Z-2A442-B 8A8Z-2A442-B / Brake Hose

Brake Hose, LEFT

W/ O AWD

$24.11 $16.18
12 8A8Z-2A442-B 8A8Z-2A442-B / Brake Hose

Brake Hose, RIGHT

W/ O AWD

$24.11 $16.18
12 8A8Z-2A442-B 8A8Z-2A442-B / Brake Hose

Flex Hose

FLEX

$24.11 $16.18
13 AE9Z-2C190-B AE9Z-2C190-B / ABS Sensor

ABS Sensor, LEFT

W/ O AWD

$20.93 $14.04
13 AE9Z-2C190-B AE9Z-2C190-B / ABS Sensor

ABS Sensor, RIGHT

W/ O AWD

$20.93 $14.04
13 AE9Z-2C190-B AE9Z-2C190-B / ABS Sensor

Rear Speed Sensor

FLEX

$20.93 $14.04
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
