HVAC/Condenser, Compressor & Lines for 2013 Ford F-350 Super Duty

Select Condenser, Compressor & Lines Part

2013 Ford F-350 Super Duty

Change vehicle

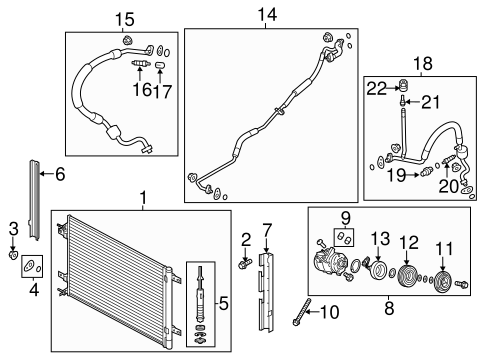

No. Part # Part # / Description List Price Price
1 BC3Z-19712-B BC3Z-19712-B / Condenser

6.2 LITER

$379.40 $254.58
2 -W503924-S439 -W503924-S439 / Valance Panel Bolt

Condenser Bolt, RIGHT

6.2 LITER

$7.94 $4.84
2 -W503924-S439 -W503924-S439 / Valance Panel Bolt

Condenser Bolt, LEFT

6.2 LITER

$7.94 $4.84
3 -W520413-S441 -W520413-S441 / Condenser Nut

Condenser Nut, LEFT

6.2 LITER

$1.30 $0.79
3 -W520413-S441 -W520413-S441 / Condenser Nut

Condenser Nut, RIGHT

6.2 LITER

$1.30 $0.79
4 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

Seal Kit, LEFT

6.2 LITER

$19.27 $12.93
4 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

Seal Kit, RIGHT

6.2 LITER

$19.27 $12.93
5 FC3Z-19C836-A FC3Z-19C836-A / Drier

Accumulator

6.2 LITER

$62.29 $41.80
5 FC3Z-19C836-A FC3Z-19C836-A / Drier

F250, F350 SUPER DUTY

$62.29 $41.80
6 BC3Z-19E572-A BC3Z-19E572-A / Side Seal

Side Seal, RIGHT

6.2 LITER

$16.95 $12.41
7 BC3Z-19E572-B BC3Z-19E572-B / Side Seal

Side Seal, LEFT

6.2 LITER

$16.95 $12.41
8 BC3Z-19703-B BC3Z-19703-B / Compressor

6.2 LITER

$384.09 $257.73
9 E9SZ-19E744-B E9SZ-19E744-B / Compressor Spacer

Compressor Spacer, LEFT

6.2 LITER

$2.12 $1.29
9 E9SZ-19E744-B E9SZ-19E744-B / Compressor Spacer

Compressor Spacer, RIGHT

6.2 LITER

$2.12 $1.29
10 -N806184-S437 -N806184-S437 / Mount Bolt

Compressor Mount Bolt

6.2 LITER

$4.16 $2.54
11 8L2Z-19D786-A 8L2Z-19D786-A / Clutch Plate & Hub Assembly

Clutch

6.2 LITER

$57.93 $38.87
12 BC3Z-19D784-B BC3Z-19D784-B / Pulley

6.2 LITER

$134.27 $90.10
13 BC3Z-19D798-A BC3Z-19D798-A / Clutch Coil

Coil

6.2 LITER

$93.95 $63.04
13 BC3Z-19D798-A BC3Z-19D798-A / Clutch Coil

F250, F350 SUPER DUTY

$93.95 $63.04
14 BC3Z-19835-J BC3Z-19835-J / Liquid Line

AC Hose

6.2 LITER, CONDENSER TO EVPORATOR, CONDENSER TO EVPORATOR

$90.25 $60.56
14 BC3Z-19835-J BC3Z-19835-J / Liquid Line

F250, F350 SUPER DUTY; 6.2L

$90.25 $60.56
15 BC3Z-19867-C BC3Z-19867-C / Return Line Assembly

6.2 LITER

$136.76 $91.77
15 BC3Z-19867-C BC3Z-19867-C / Return Line Assembly

Suction Line

F250, F350 SUPER DUTY; 6.2L

$136.76 $91.77
16 DS7Z-19D701-A DS7Z-19D701-A / Hose & Tube Assembly Valve

Return Line Assembly Valve

6.2 LITER

$3.91 $2.62
17 F7RZ-19D702-BA F7RZ-19D702-BA / Pressure Valve Cap

Return Line Assembly Cap

6.2 LITER

$11.45 $7.69
18 BC3Z-19972-C BC3Z-19972-C / Hose & Tube Assembly

6.2 LITER

$122.42 $82.14
18 BC3Z-19972-C BC3Z-19972-C / Hose & Tube Assembly

Discharge Line

F250, F350 SUPER DUTY; 6.2L

$122.42 $82.14
19 BT4Z-19D594-A BT4Z-19D594-A / Switch

Pressure Switch

F250, F350 SUPER DUTY

$48.58 $32.60
20 DS7Z-19D701-A DS7Z-19D701-A / Hose & Tube Assembly Valve

Pressure Switch Valve

6.2 LITER

$3.91 $2.62
21 4L3Z-19D701-A 4L3Z-19D701-A / AC Hose Valve Assembly

Pressure Valve

6.2 LITER

$15.87 $10.65
22 F7RZ-19D702-AA F7RZ-19D702-AA / Hose & Tube Assembly Cap

Pressure Valve Cap

6.2 LITER

$11.45 $7.69
No. Part # Part # / Description List Price Price
1 BC3Z-19B555-N BC3Z-19B555-N / Evaporator Assembly

W/ O DUAL ZONE AC, W/ O AUXILIARY HEAT

$786.58 $575.78
1 BC3Z-19B555-U BC3Z-19B555-U / Evaporator Assembly

W/ O DUAL ZONE AC, W/ AUXILIARY HEAT, TO 2/ 18/ 15

$590.02 $431.89
2 BC3Z-19B739-B BC3Z-19B739-B / Evaporator Assembly Seal

W/ O DUAL ZONE AC, UPPER

$25.28 $18.51
3 BC3Z-19C593-J BC3Z-19C593-J / Evaporator Assembly Seal

W/ O DUAL ZONE AC, LOWER

$48.08 $35.20
4 BC3Z-19860-G BC3Z-19860-G / Evaporator Core

F250, F350 SUPER DUTY

$296.24 $198.77
5 BC3Z-19B735-B BC3Z-19B735-B / Evaporator Core Cover

W/ O DUAL ZONE AC

$31.73 $23.23
7 BC3Z-18476-B BC3Z-18476-B / Heater Core

F250, F350 SUPER DUTY

$105.47 $70.77
8 BC3Z-18663-A BC3Z-18663-A / Outlet Hose

W/ O DUAL ZONE AC

$54.33 $36.45
13 BC3Z-19E616-F BC3Z-19E616-F / Motor

W/ O DUAL ZONE AC, DEFROST/ FLOOR

$63.24 $42.43
14 BC3Z-19A618-A BC3Z-19A618-A / Inlet Duct

W/ O DUAL ZONE AC

$110.85 $81.14
21 BC3Z-18490-F BC3Z-18490-F / Extension

W/ O DUAL ZONE AC

$23.82 $17.43
No. Part # Part # / Description List Price Price
1 BC3Z-19B555-T BC3Z-19B555-T / Evaporator Assembly

W/ DUAL ZONE AC, W/ O AUXILIARY HEAT, TO 3/ 08/ 15

$553.18 $404.93
1 BC3Z-19B555-V BC3Z-19B555-V / Evaporator Assembly

W/ DUAL ZONE AC, W/ AUXILIARY HEAT, TO 2/ 19/ 15

$652.13 $477.36
3 BC3Z-19C593-G BC3Z-19C593-G / Evaporator Assembly Seal

W/ DUAL ZONE AC, LOWER

$47.68 $34.90
6 BC3Z-19849-A BC3Z-19849-A / Expansion Valve

F250, F350 SUPER DUTY

$58.07 $38.97
9 BC3Z-18696-A BC3Z-18696-A / Inlet Hose

W/ DUAL ZONE AC

$64.73 $47.38
10 BC3Z-18K463-A BC3Z-18K463-A / Auxiliary Heater

W/ DUAL ZONE AC

$944.48 $691.36
11 BC3Z-18B300-A BC3Z-18B300-A / Auxiliary Heater Cover

W/ DUAL ZONE AC

$26.25 $19.22
13 BC3Z-19E616-B BC3Z-19E616-B / Motor

W/ DUAL ZONE AC, #2

$61.84 $41.49
15 BC3Z-19D888-A BC3Z-19D888-A / Air Hose

W/ DUAL ZONE AC

$27.95 $20.46
17 BC3Z-19C734-A BC3Z-19C734-A / Temp Sensor

W/ DUAL ZONE AC

$54.36 $36.48
17 BC3Z-19C734-A BC3Z-19C734-A / Temp Sensor

In-Car Temp Sensor

F250, F350 SUPER DUTY

$54.36 $36.48
18 AE9Z-19E624-B AE9Z-19E624-B / Control Module

Controller

W/ DUAL ZONE AC

$107.87 $72.38
18 AE9Z-19E624-B AE9Z-19E624-B / Control Module

F250, F350 SUPER DUTY

$107.87 $72.38
19 BC3Z-18B604-A BC3Z-18B604-A / Wire

W/ DUAL ZONE AC, AUXILIARY HEAT

$174.82 $127.97
20 CC3Z-19D605-A CC3Z-19D605-A / Wire Harness

W/ DUAL ZONE AC, FROM 1/ 19/ 12

$37.27 $27.28
21 BC3Z-19805-C BC3Z-19805-C / Blower Motor

W/ DUAL ZONE AC

$184.84 $124.03
22 BC3Z-18490-D BC3Z-18490-D / Lower Duct

W/ DUAL ZONE AC

$32.52 $23.80
No. Part # Part # / Description List Price Price
N/A F65Z-19D644-AA F65Z-19D644-AA / Pressure Relief Valve

F250, F350 SUPER DUTY

$11.76 $7.89
