HVAC/Switches & Sensors for 2013 Ford Explorer

Select Switches & Sensors Part

2013 Ford Explorer

Change vehicle

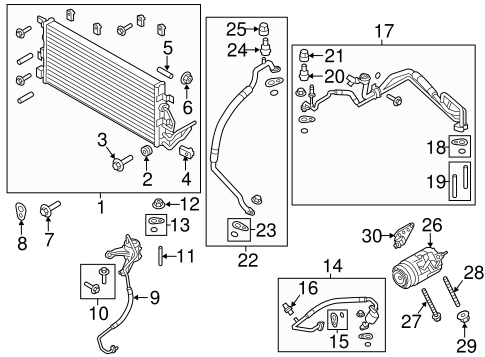

No. Part # Part # / Description List Price Price
1 BB5Z-19712-B BB5Z-19712-B / Condenser

2.0 LITER

$335.96 $225.43
2 BB5Z-19C566-A BB5Z-19C566-A / Condenser Insulator

2.0 LITER

$1.83 $1.34
3 -W503926-S439 -W503926-S439 / Mount Plate Mount Bolt

Condenser Bolt

2.0 LITER

$2.78 $1.70
4 -W520822-S439 -W520822-S439 / Valance Panel Nut

Condenser Nut

2.0 LITER

$2.36 $1.44
5 -W701890-S439 -W701890-S439 / Stud

Condenser Stud

2.0 LITER

$5.84 $3.56
6 -W520413-S441 -W520413-S441 / Condenser Nut

Condenser Retainer Nut

2.0 LITER

$1.30 $0.79
7 -W503924-S439 -W503924-S439 / Valance Panel Bolt

Condenser Mount Bolt

2.0 LITER

$7.94 $4.84
8 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

2.0 LITER

$19.27 $12.93
9 BB5Z-19959-B BB5Z-19959-B / Accumulator

2.0 LITER

$70.25 $47.14
9 BB5Z-19959-B BB5Z-19959-B / Accumulator

Drier

EXPLORER; 2.0L; FROM 11/ 28/ 11

$70.25 $47.14
10 -W703845-S439 -W703845-S439 / Accumulator Mount Bolt

2.0 LITER

$1.00 $0.61
11 -W715390-S439 -W715390-S439 / Accumulator Stud

2.0 LITER

$1.00 $0.61
12 -W520413-S441 -W520413-S441 / Condenser Nut

Accumulator Nut

2.0 LITER

$1.30 $0.79
13 9W7Z-19B596-A 9W7Z-19B596-A / Seal Kit

Accumulator Seal

2.0 LITER

$19.27 $12.93
14 DB5Z-19972-C DB5Z-19972-C / Discharge Hose

AC Tube

2.0 LITER, FROM 9/ 05/ 12

$80.76 $54.19
14 BB5Z-19972-B BB5Z-19972-B / AC Tube

2.0 LITER, TO 9/ 04/ 12

$127.82 $85.77
14 DB5Z-19972-C DB5Z-19972-C / Discharge Hose

EXPLORER; 2.0L

$80.76 $54.19
15 DL3Z-19B596-B DL3Z-19B596-B / Seal Kit

AC Tube Seal Kit

2.0 LITER

$16.04 $10.76
16 BT4Z-19D594-A BT4Z-19D594-A / Switch

Pressure Switch

EXPLORER

$48.58 $32.60
17 DB5Z-19A834-B DB5Z-19A834-B / Evaporator Tube

2.0 LITER, FROM 9/ 05/ 12

$87.85 $58.95
17 BB5Z-19A834-C BB5Z-19A834-C / Evaporator Tube

2.0 LITER, TO 9/ 04/ 12

$138.42 $92.88
17 DB5Z-19A834-B DB5Z-19A834-B / Evaporator Tube

Suction Hose

EVAPORATOR TO HOSE; EXPLORER; 2.0L

$87.85 $58.95
18 6E5Z-19B596-A 6E5Z-19B596-A / AC Line Seal Kit

Evaporator Tube Seal Kit

2.0 LITER

$35.60 $23.89
19 -W701890-S439 -W701890-S439 / Stud

Evaporator Tube Stud

2.0 LITER

$5.84 $3.56
20 4L3Z-19D701-A 4L3Z-19D701-A / AC Hose Valve Assembly

Evaporator Tube Valve

2.0 LITER

$15.87 $10.65
21 F7RZ-19D702-AA F7RZ-19D702-AA / Hose & Tube Assembly Cap

Evaporator Tube Cap

2.0 LITER

$11.45 $7.69
22 BB5Z-19867-C BB5Z-19867-C / AC Line

2.0 LITER, TO 9/ 04/ 12

$54.40 $36.50
22 DB5Z-19867-C DB5Z-19867-C / Suction Hose

AC Line

2.0 LITER, FROM 9/ 05/ 12

$49.75 $33.38
22 DB5Z-19867-C DB5Z-19867-C / Suction Hose

HOSE TO COMPRESSOR; EXPLORER; 2.0L

$49.75 $33.38
23 DL3Z-19B596-B DL3Z-19B596-B / Seal Kit

AC Line Seal Kit

2.0 LITER

$16.04 $10.76
24 F7RZ-19D701-BA F7RZ-19D701-BA / Hose & Tube Assembly Valve Assembly

AC Line Valve

2.0 LITER

$23.42 $15.71
25 F7RZ-19D702-BA F7RZ-19D702-BA / Pressure Valve Cap

AC Line Cap

2.0 LITER

$11.45 $7.69
26 BB5Z-19703-C BB5Z-19703-C / Compressor Assembly

2.0 LITER, TO 9/ 04/ 12

$506.85 $340.10
26 FB5Z-19703-D FB5Z-19703-D / Compressor Assembly

2.0 LITER, FROM 9/ 05/ 12

$425.84 $285.74
27 -W714077-S439 -W714077-S439 / Compressor Assembly Mount Bolt

Compressor Assembly Bolt

2.0 LITER

$2.13 $1.29
28 -W712610-S439 -W712610-S439 / Compressor Assembly Mount Stud

Compressor Assembly Stud

2.0 LITER

$2.13 $1.29
29 -W520413-S441 -W520413-S441 / Condenser Nut

Compressor Assembly Nut

2.0 LITER

$1.30 $0.79
