Body/Splash Shields for 2012 Ford Focus

Select Splash Shields Part

2012 Ford Focus

Change vehicle

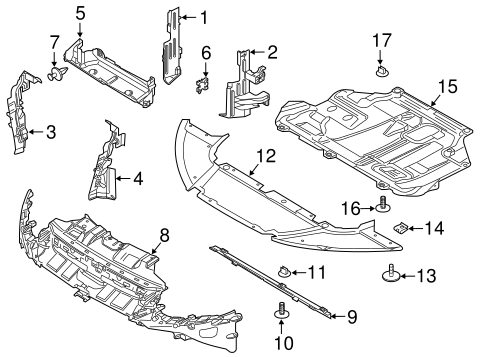

No. Part # Part # / Description List Price Price
1 CM5Z-8310-A CM5Z-8310-A / Inner Shield

Inner Shield, RIGHT

W/ O RS, W/ O SHUTTER

$29.75 $21.78
2 CM5Z-8311-A CM5Z-8311-A / Inner Shield

Inner Shield, LEFT

W/ O RS, W/ O SHUTTER

$30.77 $22.52
3 CM5Z-8310-B CM5Z-8310-B / Air Guide

Air Guide, RIGHT

W/ O RS, W/ O SHUTTER

$28.73 $21.03
4 CM5Z-8310-C CM5Z-8310-C / Air Guide

Air Guide, LEFT

W/ O RS, W/ O SHUTTER

$28.73 $21.03
5 CP9Z-9F721-A CP9Z-9F721-A / Upper Deflector

W/ O RS, W/ O SHUTTER

$8.72 $6.38
7 -W714040-S300 -W714040-S300 / Cowl Grille Retainer

Upper Deflector Retainer

W/ O RS, W/ O SHUTTER

$1.39 $0.84
9 AM5Z-17626-A AM5Z-17626-A / Lower Deflector

W/ O RS, W/ O SHUTTER

$12.33 $9.03
10 -W702413-S303 -W702413-S303 / Ft Fender Liner Screw

Lower Deflector Screw

W/ O RS, W/ O SHUTTER

$3.85 $2.35
11 -W702438-S300 -W702438-S300 / Under-Body Shield Nut

Lower Deflector Nut

W/ O RS, W/ O SHUTTER

$1.11 $0.67
12 CP9Z-8310-A CP9Z-8310-A / Lower Shield

W/ O RS, W/ O SHUTTER

$71.72 $52.50
13 -W700843-S442 -W700843-S442 / Headlamp Assembly Screw

Lower Shield Screw

W/ O RS, W/ O SHUTTER

$1.39 $0.84
14 -W702889-S300 -W702889-S300 / Fender Liner Retainer Nut

Lower Shield Nut

W/ O RS, W/ O SHUTTER

$5.55 $3.38
16 -W702413-S303 -W702413-S303 / Ft Fender Liner Screw

Under Cover Screw

W/ O RS, W/ O SHUTTER

$3.85 $2.35

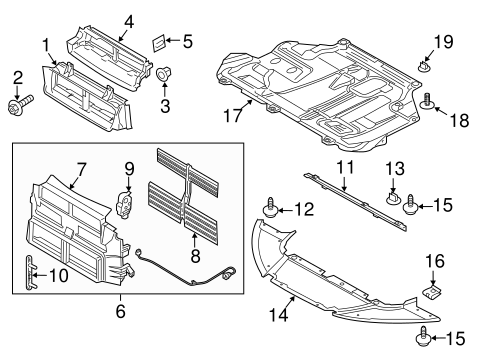

No. Part # Part # / Description List Price Price
1 CM5Z-8327-A CM5Z-8327-A / Lower Deflector

W/ O RS, W/ SHUTTER

$98.68 $72.24
2 -W702413-S307 -W702413-S307 / Under-Body Shield Retainer Screw

Lower Deflector Screw

W/ O RS, W/ SHUTTER

$2.98 $1.82
3 -W700505-S300 -W700505-S300 / Washer Reservoir Nut

Lower Deflector Nut

W/ O RS, W/ SHUTTER

$0.85 $0.51
4 CP9Z-8312-B CP9Z-8312-B / Upper Deflector

W/ O RS, W/ SHUTTER

$129.22 $94.59
5 -W711115-S307 -W711115-S307 / Side Baffle Retainer Clip

Upper Deflector Clip

W/ O RS, W/ SHUTTER

$1.32 $0.81
6 CM5Z-8475-A CM5Z-8475-A / Shutter

W/ O RS, W/ SHUTTER

$511.43 $293.25
7 CM5Z-8B455-A CM5Z-8B455-A / Housing

W/ O RS, W/ SHUTTER

$218.33 $159.82
8 CM5Z-00810-A CM5Z-00810-A / Flap

W/ O RS, W/ SHUTTER

$33.63 $24.62
9 BM5Z-10884-A BM5Z-10884-A / Temp Sensor

Actuator

W/ O RS, W/ SHUTTER

$66.25 $44.46
10 DM5Z-8478-A DM5Z-8478-A / Actuator Retainer

W/ O RS, W/ SHUTTER

$25.68 $14.73
11 AM5Z-17626-A AM5Z-17626-A / Lower Deflector

Deflector

W/ O RS, W/ SHUTTER

$12.33 $9.03
12 -W702413-S307 -W702413-S307 / Under-Body Shield Retainer Screw

Deflector Screw

W/ O RS, W/ SHUTTER

$2.98 $1.82
13 -W702438-S300 -W702438-S300 / Under-Body Shield Nut

Deflector Nut

W/ O RS, W/ SHUTTER

$1.11 $0.67
15 -W702413-S307 -W702413-S307 / Under-Body Shield Retainer Screw

Lower Shield Screw

W/ O RS, W/ SHUTTER

$2.98 $1.82
16 -W700505-S300 -W700505-S300 / Washer Reservoir Nut

Lower Shield Nut

W/ O RS, W/ SHUTTER

$0.85 $0.51
17 AV6Z-6P013-A AV6Z-6P013-A / Under Cover

W/ O RS, W/ SHUTTER, 2.0 LITER DOHC

$156.97 $114.90
18 -W702413-S307 -W702413-S307 / Under-Body Shield Retainer Screw

Under Cover Screw

W/ O RS, W/ SHUTTER

$2.98 $1.82
19 -W702438-S300 -W702438-S300 / Under-Body Shield Nut

Under Cover Nut

W/ O RS, W/ SHUTTER

$1.11 $0.67
