Front Suspension/Front Suspension for 2012 Ford F-250 Super Duty

Select Front Suspension Part

2012 Ford F-250 Super Duty

Change vehicle

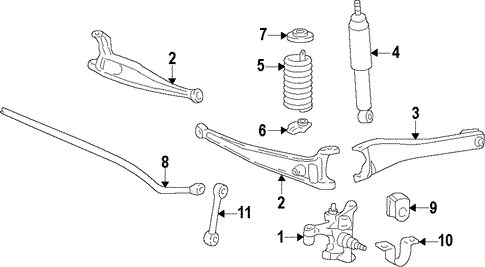

Front Suspension/Front Suspension for 2012 Ford F-250 Super Duty #1
No. Part # Part # / Description List Price Price
N/A 8C3Z-3049-B 8C3Z-3049-B / Upper Ball Joint

Ball Joints

F250, F350 SUPER DUTY; UPPER

$73.56 $49.36
N/A 8C3Z-3050-D 8C3Z-3050-D / Lower Ball Joint

Ball Joints

F250, F350 SUPER DUTY; LOWER

$65.55 $43.98
N/A 8C3Z-1202-A 8C3Z-1202-A / Wheel Bearing Race

F250, F350 SUPER DUTY; INNER

$30.08 $22.02
N/A 8C3Z-1190-A 8C3Z-1190-A / Grease Seal

Hub Seals

F250, F350 SUPER DUTY

$9.16 $6.15
N/A CC3Z-1217-A CC3Z-1217-A / Wheel Bearing Race

F250, F350 SUPER DUTY; OUTER

$47.68 $34.90
N/A CC3Z-4221-A CC3Z-4221-A / Inner Bearing

Wheel Bearings

F250, F350 SUPER DUTY; INNER

$12.45 $9.11
N/A CC3Z-1216-A CC3Z-1216-A / Outer Bearing

Wheel Bearings

F250, F350 SUPER DUTY; OUTER

$13.90 $10.17
1 8C3Z-3106-B 8C3Z-3106-B / Knuckle

F250, F350 SUPER DUTY; LEFT

$435.45 $318.75
1 8C3Z-3105-B 8C3Z-3105-B / Knuckle

F250, F350 SUPER DUTY; RIGHT

$558.67 $408.94
2 7C3Z-3006-B 7C3Z-3006-B / Axle Beam

Axle Arm

F250, F350 SUPER DUTY; RIGHT

$323.13 $236.53
2 7C3Z-3007-A 7C3Z-3007-A / Axle Beam

Axle Arm

F250, F350 SUPER DUTY; LEFT

$330.37 $241.83
3 7C3Z-3A360-C 7C3Z-3A360-C / Radius Arm

F250, F350 SUPER DUTY; LEFT

$244.31 $163.93
3 7C3Z-3A360-D 7C3Z-3A360-D / Radius Arm

F250, F350 SUPER DUTY; RIGHT

$314.80 $211.23
4 BC3Z-18124-C BC3Z-18124-C / Shock Absorber

F250, F350 SUPER DUTY; SINGLE REAR WHEELS; 172 WHEELBASE; 6.2L; W/ O OFF ROAD SHOCKS

$61.73 $41.42
4 BC3Z-18124-Y BC3Z-18124-Y / Shock Absorber

F250, F350 SUPER DUTY; SINGLE REAR WHEELS; 156, 158 WHEELBASE; 6.2L; W/ OFF ROAD SHOCKS

$68.33 $45.85
4 BC3Z-18124-B BC3Z-18124-B / Shock Absorber

F250, F350 SUPER DUTY; SINGLE REAR WHEELS; 137, 142 WHEELBASE; 6.2L; W/ O OFF ROAD SHOCKS

$54.76 $36.75
4 BC3Z-18124-E BC3Z-18124-E / Shock Absorber

F250, F350 SUPER DUTY; DUAL REAR WHEELS; W/ O OFF ROAD SHOCKS

$61.73 $41.42
5 9C3Z-5310-A 9C3Z-5310-A / Coil Spring

F250, F350 SUPER DUTY; CODE G

$165.58 $121.21
5 7C3Z-5310-RC 7C3Z-5310-RC / Coil Spring

F250, F350 SUPER DUTY; CODE R

$187.65 $137.36
5 7C3Z-5310-KC 7C3Z-5310-KC / Coil Spring

F250, F350 SUPER DUTY; CODE K

$155.60 $113.90
5 5C3Z-5310-HA 5C3Z-5310-HA / Coil Spring

F250, F350 SUPER DUTY; CODE X; F81A-5310-ACD

$119.82 $87.71
5 7C3Z-5310-VC 7C3Z-5310-VC / Coil Spring

F250, F350 SUPER DUTY; CODE V; 9C34-5310-VA

$147.67 $108.09
5 7C3Z-5310-XC 7C3Z-5310-XC / Coil Spring

F250, F350 SUPER DUTY; CODE X; 9C34-5310-XA

$175.73 $128.64
5 5C3Z-5310-AA 5C3Z-5310-AA / Coil Spring

F250, F350 SUPER DUTY; CODE A

$200.88 $147.05
5 5C3Z-5310-BA 5C3Z-5310-BA / Coil Spring

F250, F350 SUPER DUTY; CODE B

$187.08 $136.95
5 7C3Z-5310-JC 7C3Z-5310-JC / Coil Spring

F250, F350 SUPER DUTY; CODE J

$162.92 $119.26
5 5C3Z-5310-EA 5C3Z-5310-EA / Coil Spring

F250, F350 SUPER DUTY; CODE T

$158.52 $116.03
6 7C3Z-5A307-AL 7C3Z-5A307-AL / Spring Seat

F250, F350 SUPER DUTY; LEFT

$65.25 $47.76
6 7C3Z-5A307-AR 7C3Z-5A307-AR / Spring Seat

F250, F350 SUPER DUTY; RIGHT

$65.25 $47.76
7 E8TZ-5414-B E8TZ-5414-B / Spring Insulator

Lower Spring Insulator

F250, F350 SUPER DUTY

$18.58 $13.60
8 7C3Z-5482-C 7C3Z-5482-C / Stabilizer Bar

F250, F350 SUPER DUTY; DUAL REAR WHEELS

$95.93 $70.22
8 BC3Z-5482-A BC3Z-5482-A / Stabilizer Bar

F250, F350 SUPER DUTY; SINGLE REAR WHEELS

$112.43 $82.30
9 7C3Z-5484-B 7C3Z-5484-B / Stabilizer Bar Bushing

Bushings

F250, F350 SUPER DUTY; SINGLE REAR WHEELS

$9.53 $6.98
10 7C3Z-5486-AA 7C3Z-5486-AA / Bracket

F250, F350 SUPER DUTY

$9.87 $7.22
11 YC3Z-5K483-AA YC3Z-5K483-AA / Stabilizer Link

Link

F250, F350 SUPER DUTY

$44.84 $30.09
Front Suspension/Front Suspension for 2012 Ford F-250 Super Duty #2
No. Part # Part # / Description List Price Price
N/A DC3Z-1104-A DC3Z-1104-A / Hub & Bearing

Front Hub

F250, F350 SUPER DUTY; SINGLE REAR WHEELS

$583.80 $391.73
N/A DC3Z-1104-B DC3Z-1104-B / Hub & Bearing

Front Hub

F250, F350 SUPER DUTY; DUAL REAR WHEELS

$583.02 $391.21
N/A BC3Z-3B396-A BC3Z-3B396-A / Lock Assembly

Locking Hub

F250, F350 SUPER DUTY; ELECTRIC LOCKING HUB

$252.30 $184.68
N/A 5C3Z-5A307-AA 5C3Z-5A307-AA / Spring Seat

F250, F350 SUPER DUTY

$48.00 $35.14
N/A BC3Z-3B396-B BC3Z-3B396-B / Lock Assembly

Locking Hub

F250, F350 SUPER DUTY; MANUAL LOCKING HUB

$190.05 $139.12
1 6C3Z-3130-A 6C3Z-3130-A / Spindle

Knuckle

F250, F350 SUPER DUTY; RIGHT

$804.42 $539.76
1 5C3Z-3131-AB 5C3Z-3131-AB / Spindle

Knuckle

F250, F350 SUPER DUTY; LEFT

$590.91 $396.50
2 BC3Z-3049-B BC3Z-3049-B / Upper Ball Joint

Upper Ball Joints

F250, F350 SUPER DUTY

$88.22 $59.19
3 BC3Z-3050-B BC3Z-3050-B / Lower Ball Joint

F250, F350 SUPER DUTY

$106.44 $71.42
4 GC3Z-3A360-A GC3Z-3A360-A / Radius Arm

F250, F350 SUPER DUTY; LEFT

$221.48 $162.13
4 GC3Z-3A360-B GC3Z-3A360-B / Radius Arm

F250, F350 SUPER DUTY; RIGHT

$217.63 $159.31
5 BC3Z-18124-X BC3Z-18124-X / Shock Absorber

F250, F350 SUPER DUTY; SINGLE REAR WHEELS; 172 WHEELBASE; 6.2L; W/ O OFF ROAD SHOCKS

$58.62 $39.33
5 BC3Z-18124-P BC3Z-18124-P / Shock Absorber

F250, F350 SUPER DUTY; DUAL REAR WHEELS; W/ O OFF ROAD SHOCKS

$54.60 $36.64
5 BC3Z-18124-V BC3Z-18124-V / Shock Absorber

F250, F350 SUPER DUTY; DUAL REAR WHEELS; W/ OFF ROAD SHOCKS

$76.73 $51.48
5 BC3Z-18124-AA BC3Z-18124-AA / Shock Absorber

F250, F350 SUPER DUTY; SINGLE REAR WHEELS; 137, 142 WHEELBASE; 6.2L; W/ OFF ROAD SHOCKS

$61.89 $41.53
5 BC3Z-18124-Z BC3Z-18124-Z / Shock Absorber

F250, F350 SUPER DUTY; SINGLE REAR WHEELS; 137, 142 WHEELBASE; 6.2L; W/ O OFF ROAD SHOCKS

$49.35 $33.11
6 5C3Z-5310-FA 5C3Z-5310-FA / Coil Spring

F250, F350 SUPER DUTY; CODE V; F81Z-5310-AED

$146.33 $107.12
6 5C3Z-5310-GA 5C3Z-5310-GA / Coil Spring

F250, F350 SUPER DUTY; CODE W; F81A-5310-ADD

$139.48 $102.10
6 7C3Z-5310-ZC 7C3Z-5310-ZC / Coil Spring

F250, F350 SUPER DUTY; CODE Z

$196.85 $144.09
6 5C3Z-5310-CA 5C3Z-5310-CA / Coil Spring

F250, F350 SUPER DUTY; CODE C

$205.77 $150.62
6 7c3z5310fc 7c3z5310fc / Coil Spring

F250, F350 SUPER DUTY; CODE F

- -
6 7C3Z-5310-HC 7C3Z-5310-HC / Coil Spring

F250, F350 SUPER DUTY; CODE H

$167.42 $122.55
6 7C3Z-5310-WC 7C3Z-5310-WC / Coil Spring

F250, F350 SUPER DUTY; CODE W; 9C34-5310-WA

$171.48 $125.53
6 5C3Z-5310-DA 5C3Z-5310-DA / Coil Spring

F250, F350 SUPER DUTY; CODE D

$174.37 $127.64
7 5C3Z-5415-AA 5C3Z-5415-AA / Upper Spring Insulator

F250, F350 SUPER DUTY

$65.93 $48.26
8 HC3Z-3B239-C HC3Z-3B239-C / Track Bar

F250, F350 SUPER DUTY

$59.35 $43.44
9 AC3Z-3A116-A AC3Z-3A116-A / Track Bar Bushing

F250, F350 SUPER DUTY

$25.03 $18.32
10 7C3Z-3A093-A 7C3Z-3A093-A / Track Bar Bracket

F250, F350 SUPER DUTY

$94.95 $69.50
11 9C3Z-5482-A 9C3Z-5482-A / Stabilizer Bar

F250, F350 SUPER DUTY; DUAL REAR WHEELS

$138.35 $101.27
11 9C3Z-5482-D 9C3Z-5482-D / Stabilizer Bar

F250, F350 SUPER DUTY; SINGLE REAR WHEELS

$185.27 $135.62
12 7C3Z-5484-D 7C3Z-5484-D / Stabilizer Bar Bushing

Bushings

F250, F350 SUPER DUTY; DUAL REAR WHEELS

$16.13 $11.81
12 7C3Z-5484-K 7C3Z-5484-K / Stabilizer Bar Bushing

Bushings

F250, F350 SUPER DUTY; SINGLE REAR WHEELS

$18.45 $13.51
14 9L3Z-5K483-D 9L3Z-5K483-D / Stabilizer Link

Link

F250, F350 SUPER DUTY

$67.91 $45.57
No. Part # Part # / Description List Price Price
1 9C3Z-5482-B 9C3Z-5482-B / Stabilizer Bar

2WD, MONOBEAM AXLE

$166.08 $121.57
2 7C3Z-5484-E 7C3Z-5484-E / Stabilizer Bar Insulator

Bushing, LEFT

2WD, MONOBEAM AXLE

$17.15 $12.55
2 7C3Z-5484-E 7C3Z-5484-E / Stabilizer Bar Insulator

Bushing, RIGHT

2WD, MONOBEAM AXLE

$17.15 $12.55
3 7C3Z-5486-AA 7C3Z-5486-AA / Bracket

Bracket, RIGHT

2WD, MONOBEAM AXLE

$9.87 $7.22
3 7C3Z-5486-AA 7C3Z-5486-AA / Bracket

Bracket, LEFT

2WD, MONOBEAM AXLE

$9.87 $7.22
4 -W712045-S439 -W712045-S439 / Stabilizer Bar Bolt

Bracket Bolt, RIGHT

2WD, MONOBEAM AXLE

$2.59 $1.59
4 -W712045-S439 -W712045-S439 / Stabilizer Bar Bolt

Bracket Bolt, LEFT

2WD, MONOBEAM AXLE

$2.59 $1.59
5 -W520113-S441 -W520113-S441 / Stabilizer Bar Nut

Bracket Nut, LEFT

2WD, MONOBEAM AXLE

$5.18 $3.16
5 -W520113-S441 -W520113-S441 / Stabilizer Bar Nut

Bracket Nut, RIGHT

2WD, MONOBEAM AXLE

$5.18 $3.16
6 9L3Z-5K483-D 9L3Z-5K483-D / Stabilizer Link

Stabilizer Link, RIGHT

2WD, MONOBEAM AXLE

$67.91 $45.57
6 9L3Z-5K483-D 9L3Z-5K483-D / Stabilizer Link

Stabilizer Link, LEFT

2WD, MONOBEAM AXLE

$67.91 $45.57
7 -W520214-S440 -W520214-S440 / Control Arm Lock Nut

Stabilizer Link Nut, LEFT

2WD, MONOBEAM AXLE

$5.97 $3.65
7 -W520214-S440 -W520214-S440 / Control Arm Lock Nut

Stabilizer Link Nut, RIGHT

2WD, MONOBEAM AXLE

$5.97 $3.65
