Body/Radiator Support for 2012 Ford F-250 Super Duty

Select Radiator Support Part

2012 Ford F-250 Super Duty

Change vehicle

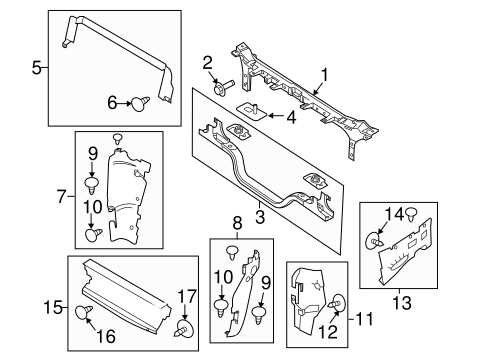

No. Part # Part # / Description List Price Price
1 BC3Z-16138-B BC3Z-16138-B / Upper Tie Bar

$403.78 $295.57
2 -W701835-S439 -W701835-S439 / Battery Tray Mount Bolt

Upper Tie Bar Bolt, LEFT

$2.50 $1.53
2 -W701835-S439 -W701835-S439 / Battery Tray Mount Bolt

Upper Tie Bar Bolt, RIGHT

$2.50 $1.53
3 BC3Z-16138-A BC3Z-16138-A / Lower Tie Bar

$210.34 $205.29
5 BC3Z-19E672-B BC3Z-19E672-B / Upper Deflector

6.2 LITER, W/ O XL PKG

$13.35 $9.77
5 BC3Z-19E672-A BC3Z-19E672-A / Upper Deflector

6.2 LITER, W/ XL PKG

$15.95 $11.68
6 -W705589-S -W705589-S / Fender Liner Retainer Clip

Upper Deflector Retainer, LEFT

$1.50 $0.92
6 -W705589-S -W705589-S / Fender Liner Retainer Clip

Upper Deflector Retainer, RIGHT

$1.50 $0.92
7 BC3Z-8310-A BC3Z-8310-A / Side Air Baffle

Side Air Baffle, RIGHT

6.2 LITER

$53.08 $38.86
8 BC3Z-8311-A BC3Z-8311-A / Side Air Baffle

Side Air Baffle, LEFT

6.2 LITER

$27.78 $20.34
9 -W705589-S -W705589-S / Fender Liner Retainer Clip

Side Air Baffle Retainer, LEFT

UPPER

$1.50 $0.92
9 -W705589-S -W705589-S / Fender Liner Retainer Clip

Side Air Baffle Retainer, RIGHT

UPPER

$1.50 $0.92
10 -W713661-S300 -W713661-S300 / Lower Deflector Retainer

Side Air Baffle Retainer, LEFT

LOWER

$2.50 $1.53
10 -W713661-S300 -W713661-S300 / Lower Deflector Retainer

Side Air Baffle Retainer, RIGHT

LOWER

$2.50 $1.53
11 BC3Z-9E944-A BC3Z-9E944-A / Inner Shield

Inner Shield, LEFT

6.2 LITER

$15.15 $11.09
12 -W705589-S -W705589-S / Fender Liner Retainer Clip

Inner Shield Retainer, RIGHT

$1.50 $0.92
12 -W705589-S -W705589-S / Fender Liner Retainer Clip

Inner Shield Retainer, LEFT

$1.50 $0.92
13 BC3Z-9E944-D BC3Z-9E944-D / Side Shield

Side Shield, LEFT

$14.43 $10.57
14 -W705589-S -W705589-S / Fender Liner Retainer Clip

Side Shield Retainer, LEFT

$1.50 $0.92
14 -W705589-S -W705589-S / Fender Liner Retainer Clip

Side Shield Retainer, RIGHT

$1.50 $0.92
15 BC3Z-8327-A BC3Z-8327-A / Lower Deflector

6.2 LITER

$46.10 $33.75
16 -W705589-S -W705589-S / Fender Liner Retainer Clip

Lower Deflector Retainer, LEFT

OUTER

$1.50 $0.92
16 -W705589-S -W705589-S / Fender Liner Retainer Clip

Lower Deflector Retainer, RIGHT

OUTER

$1.50 $0.92
17 -W713661-S300 -W713661-S300 / Lower Deflector Retainer

Lower Deflector Retainer, LEFT

INNER

$2.50 $1.53
17 -W713661-S300 -W713661-S300 / Lower Deflector Retainer

Lower Deflector Retainer, RIGHT

INNER

$2.50 $1.53
