Front Suspension/Carrier & Front Axles for 2012 Ford F-150

Select Carrier & Front Axles Part

2012 Ford F-150

Change vehicle

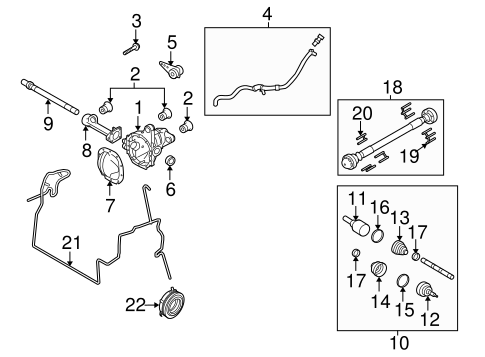

No. Part # Part # / Description List Price Price
1 CL3Z-3010-A CL3Z-3010-A / Axle Housing

Differential Carrier

4WD, W/ 3.31, 3.55 AXLE

$216.14 $171.40
1 CL3Z-3010-B CL3Z-3010-B / Housing - Front Axle

Differential Carrier

4WD, W/ 4.10 AXLE

$827.03 $655.84
2 7L1Z-3A443-C 7L1Z-3A443-C / Bushing

Differential Carrier Mount Bushing

4WD

$29.97 $21.94
3 -W712743-S439 -W712743-S439 / Differential Carrier Bolt

4WD, INNER

$3.19 $1.94
3 -W712724-S439 -W712724-S439 / Differential Carrier Bolt

4WD, OUTER

$3.19 $1.94
4 BL3Z-3B476-A BL3Z-3B476-A / Vent Tube

4WD

$29.28 $21.44
6 AL3Z-4B416-A AL3Z-4B416-A / Seal

Seal, LEFT

4WD

$33.52 $24.53
6 AL3Z-4B416-A AL3Z-4B416-A / Seal

Seal, RIGHT

4WD

$33.52 $24.53
7 8L1Z-4033-A 8L1Z-4033-A / Cover

Differential Cover

4WD

$29.00 $21.23
8 9L1Z-4K206-A 9L1Z-4K206-A / Tube

Axle Tube

4WD

$212.77 $155.75
9 7L1Z-3219-A 7L1Z-3219-A / Axle Shafts

Inner Shaft

4WD

$345.42 $252.85
10 AL1Z-3A428-B AL1Z-3A428-B / Axle Assembly

Axle Assembly, RIGHT

4WD

$292.38 $196.19
10 AL1Z-3A427-B AL1Z-3A427-B / Axle Assembly

Axle Assembly, LEFT

4WD

$268.87 $180.41
11 AL1Z-3B414-A AL1Z-3B414-A / Inner Joint Assembly

Inner Joint Assembly, RIGHT

4WD

$310.62 $208.42
11 AL1Z-3B414-B AL1Z-3B414-B / Inner Joint Assembly

Inner Joint Assembly, LEFT

4WD

$269.44 $180.79
12 AL1Z-3B436-A AL1Z-3B436-A / Outer Joint Assembly

Outer Joint Assembly, LEFT

4WD

$294.80 $197.81
12 AL1Z-3B436-A AL1Z-3B436-A / Outer Joint Assembly

Outer Joint Assembly, RIGHT

4WD

$294.80 $197.81
13 7L1Z-3A331-A 7L1Z-3A331-A / Inner Boot

Inner Boot, RIGHT

4WD

$61.38 $44.93
13 7L1Z-3A331-A 7L1Z-3A331-A / Inner Boot

Inner Boot, LEFT

4WD

$61.38 $44.93
14 2L1Z-3A331-AA 2L1Z-3A331-AA / Outer Boot

Outer Boot, LEFT

4WD

$57.55 $38.61
14 2L1Z-3A331-AA 2L1Z-3A331-AA / Outer Boot

Outer Boot, RIGHT

4WD

$57.55 $38.61
15 F65Z-3B478-DA F65Z-3B478-DA / Clamp

Clamp, RIGHT

4WD, OUTER, LARGE

$33.02 $24.17
15 F65Z-3B478-DA F65Z-3B478-DA / Clamp

Clamp, LEFT

4WD, OUTER, LARGE

$33.02 $24.17
16 7L1Z-3B478-A 7L1Z-3B478-A / Clamp

Clamp, RIGHT

4WD, INNNER, LARGE

$40.12 $29.37
16 7L1Z-3B478-A 7L1Z-3B478-A / Clamp

Clamp, LEFT

4WD, INNNER, LARGE

$40.12 $29.37
17 F65Z-3B478-CA F65Z-3B478-CA / Clamp

Clamp, LEFT

4WD, SMALL

$25.15 $18.41
17 F65Z-3B478-CA F65Z-3B478-CA / Clamp

Clamp, RIGHT

4WD, SMALL

$25.15 $18.41
18 BL3Z-4A376-B BL3Z-4A376-B / Drive Shaft

4WD, W/ 6 SPD TRANS, 3.5, 3.7 LITER

$296.55 $235.17
19 7L1Z-4B496-C 7L1Z-4B496-C / Drive Shaft Retainer Screw

4WD, FRONT

$4.22 $3.09
20 7L1Z-4B496-D 7L1Z-4B496-D / Drive Shaft Retainer Screw

4WD, REAR

$2.78 $2.04
21 BL3Z-7A785-A BL3Z-7A785-A / Vacuum Tube

4WD

$43.97 $32.18
22 7L1Z-3C247-A 7L1Z-3C247-A / Actuator Assembly

Actuator, LEFT

4WD

$166.33 $121.76
22 7L1Z-3C247-A 7L1Z-3C247-A / Actuator Assembly

Actuator, RIGHT

4WD

$166.33 $121.76
