Engine/Engine for 2012 Ford Explorer

Select Engine Part

2012 Ford Explorer

Change vehicle

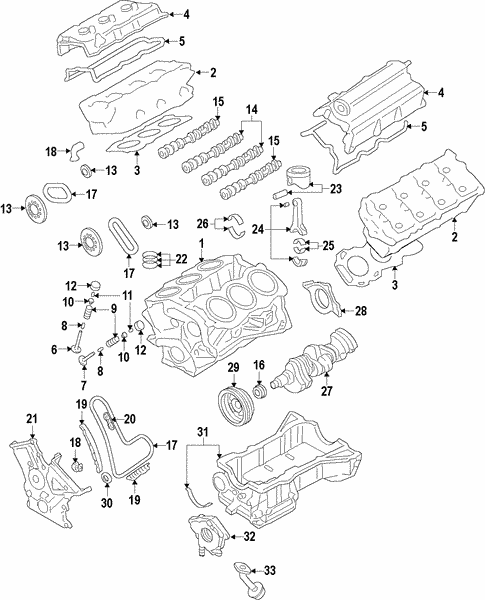

Engine/Engine for 2012 Ford Explorer #1
No. Part # Part # / Description List Price Price
N/A AT4Z-6009-C AT4Z-6009-C / Short Block 1

EXPLORER; W/ O TURBO; W/ OIL COOLER

- -
N/A AT4Z-6M280-B AT4Z-6M280-B / Control Valve Solenoid

EXPLORER; W/ O TURBO; OUTER; RIGHT

$59.95 $43.88
N/A AT4Z-6M280-A AT4Z-6M280-A / Control Valve Solenoid

EXPLORER; W/ O TURBO; OUTER; LEFT

$54.30 $39.75
N/A DL2Z-6006-D DL2Z-6006-D / Engine 1

EXPLORER; W/ O TURBO; W/ OIL COOLER

$4,662.36 $4,266.06
N/A AT4Z-6079-B AT4Z-6079-B / Valve Grind Gasket Kit

EXPLORER

$143.65 $105.15
N/A AT4Z-6701-A AT4Z-6701-A / Rear Main Seal

EXPLORER; TO 5/ 1/ 14

$17.87 $13.08
N/A 8L3Z-6K302-A 8L3Z-6K302-A / Thrust Washer

EXPLORER; W/ O TURBO; LOWER

$9.62 $7.04
N/A 8L3Z-6A341-A 8L3Z-6A341-A / Thrust Washer

EXPLORER; W/ O TURBO; UPPER

$8.76 $6.42
N/A 8A8Z-6A642-A 8A8Z-6A642-A / Oil Cooler

EXPLORER

$132.40 $96.92
N/A FB5Z-6038-B FB5Z-6038-B / Mount

Trans Mount

EXPLORER

$108.43 $79.37
N/A GB5Z-6038-A GB5Z-6038-A / Bracket - Engine Front Support

Mount

EXPLORER

$74.50 $54.53
N/A AT4Z-6006-D AT4Z-6006-D / Engine 1

EXPLORER; W/ O TURBO; W/ O OIL COOLER

$4,582.13 $4,192.65
1 AT4Z*6010*D AT4Z*6010*D / Cylinder Block

EXPLORER

- -
2 DG1Z-6049-A DG1Z-6049-A / Cylinder Head 1

EXPLORER; W/ O TURBO; RIGHT

$641.63 $508.81
2 DG1Z-6049-C DG1Z-6049-C / Cylinder Head 1

EXPLORER; W/ O TURBO; LEFT

$453.65 $359.74
3 AT4Z-6051-E AT4Z-6051-E / Head Gasket

EXPLORER; W/ O TURBO; RIGHT

$19.10 $13.98
3 AT4Z-6051-F AT4Z-6051-F / Head Gasket

EXPLORER; W/ O TURBO; LEFT

$20.92 $15.31
4 BR3Z-6582-G BR3Z-6582-G / Valve Cover

EXPLORER; W/ O TURBO; RIGHT

$71.40 $52.26
4 BR3Z-6582-R BR3Z-6582-R / Valve Cover

EXPLORER; W/ O TURBO; LEFT

$67.33 $49.29
5 BR3Z-6584-B BR3Z-6584-B / Valve Cover Gasket

EXPLORER; W/ O TURBO; RIGHT

$8.83 $6.47
5 BR3Z-6584-C BR3Z-6584-C / Valve Cover Gasket

EXPLORER; W/ O TURBO; LEFT

$9.43 $6.91
6 7T4Z-6507-B 7T4Z-6507-B / Intake Valve

EXPLORER; W/ O TURBO

$17.57 $12.86
7 AT4Z-6505-A AT4Z-6505-A / Exhaust Valve

EXPLORER; W/ O TURBO

$19.12 $13.99
8 BL3Z-6571-A BL3Z-6571-A / Valve Seals

$2.84 $2.09
9 ET4Z-6513-A ET4Z-6513-A / Valve Springs

EXPLORER; W/ O TURBO

$2.36 $1.59
10 7T4Z-6514-AA 7T4Z-6514-AA / Valve Spring Retainers

EXPLORER

$5.45 $3.66
11 1S7Z-6518-AA 1S7Z-6518-AA / Valve Keeper

EXPLORER

$4.75 $3.18
12 AT4Z-6500-AAA AT4Z-6500-AAA / Valve Lifters

EXPLORER

$11.93 $8.00
13 AT4Z-6256-B AT4Z-6256-B / Actuator

EXPLORER; W/ O TURBO; INTAKE

$167.62 $122.70
13 AT4Z-6C525-D AT4Z-6C525-D / Actuator

EXPLORER; W/ O TURBO; EXHAUST

$70.82 $51.84
14 AT4Z-6250-F AT4Z-6250-F / Intake Camshaft

EXPLORER; RIGHT

$73.70 $53.95
14 AT4Z-6250-G AT4Z-6250-G / Intake Camshaft

EXPLORER; LEFT

$73.37 $53.70
15 AT4Z-6250-J AT4Z-6250-J / Exhaust Camshaft

EXPLORER; LEFT

$73.37 $53.70
15 AT4Z-6250-H AT4Z-6250-H / Exhaust Camshaft

EXPLORER; RIGHT

$73.10 $53.51
16 AT4Z-6306-A AT4Z-6306-A / Crankshaft Gear

EXPLORER

$31.30 $22.91
17 AT4Z-6268-A AT4Z-6268-A / Timing Chain

EXPLORER; SECONDARY

$35.57 $26.03
17 AT4Z-6268-C AT4Z-6268-C / Timing Chain

EXPLORER; PRIMARY

$68.07 $49.82
18 AT4Z*6L266*A AT4Z*6L266*A / Tensioner

EXPLORER; W/ O TURBO; PRIMARY

- -
18 AT4Z-6K254-A AT4Z-6K254-A / Tensioner

EXPLORER; W/ O TURBO; SECONDARY

$36.75 $26.90
19 AT4Z*6K255*A AT4Z*6K255*A / Tensioner Arm

EXPLORER; W/ O TURBO; RIGHT

- -
19 AT4Z-6B274-A AT4Z-6B274-A / Tensioner Arm

EXPLORER; W/ O TURBO; LEFT

$24.45 $17.90
20 AT4Z-6K297-B AT4Z-6K297-B / Chain Guide

EXPLORER; W/ O TURBO; PRIMARY CHAIN; LEFT

$15.42 $11.29
20 AT4Z-6K297-D AT4Z-6K297-D / Chain Guide

EXPLORER; W/ O TURBO; SECONDARY CHAIN

$3.75 $2.75
20 AT4Z-6K297-A AT4Z-6K297-A / Chain Guide

EXPLORER; W/ O TURBO; PRIMARY CHAIN; RIGHT

$15.35 $11.24
21 BT4Z-6019-B BT4Z-6019-B / Timing Cover

Front Cover

EXPLORER; W/ O TURBO

$198.93 $145.62
22 AT4Z-6148-D AT4Z-6148-D / Piston Rings

.50MM O/ S; TO 11/ 1/ 11

$87.47 $64.03
22 AT4Z-6148-C AT4Z-6148-C / Piston Rings

EXPLORER; STANDARD

$17.43 $12.76
23 AT4Z*6108*B AT4Z*6108*B / Piston

EXPLORER; PISTON; W/ O TURBO; .50MM/ .020 O/ S; TO 11/ 1/ 11

- -
23 AT4Z*6108*A AT4Z*6108*A / Piston

EXPLORER; PISTON; W/ O TURBO; STANDARD; TO 11/ 1/ 11

- -
23 BA5Z-6135-A BA5Z-6135-A / Piston Pin

Piston

EXPLORER; PISTON PIN

$7.40 $4.97
23 AT4Z-6108-C AT4Z-6108-C / Piston

EXPLORER; PISTON; W/ O TURBO; STANDARD; FROM 11/ 1/ 11

$75.70 $55.41
23 AT4Z-6108-D AT4Z-6108-D / Piston

EXPLORER; PISTON; W/ O TURBO; .50MM/ .020 O/ S; FROM 11/ 1/ 11

$57.30 $41.94
24 BL3Z-6200-A BL3Z-6200-A / Connecting Rod

EXPLORER; W/ O TURBO

$48.10 $35.21
25 BL3Z-6211-FA BL3Z-6211-FA / Bearings

EXPLORER; GRADE 3

$4.09 $2.99
25 BL3Z-6211-EA BL3Z-6211-EA / Bearings

EXPLORER; GRADE 2

$4.23 $3.10
25 BL3Z-6211-DA BL3Z-6211-DA / Bearings

EXPLORER; GRADE 1

$4.23 $3.10
26 7T4Z-6D309-A 7T4Z-6D309-A / Bearings

EXPLORER; W/ O TURBO; GRADE 1

$14.62 $10.70
26 7T4Z-6D309-B 7T4Z-6D309-B / Bearing Set

Bearings

EXPLORER; W/ O TURBO; GRADE 2

$15.42 $11.29
26 7T4Z-6D309-C 7T4Z-6D309-C / Bearing Set

Bearings

EXPLORER; W/ O TURBO; GRADE 3

$16.97 $12.42
27 AT4Z-6303-D AT4Z-6303-D / Crankshaft

EXPLORER; W/ O TURBO

- -
28 CG1Z-6335-A CG1Z-6335-A / Rear Main Seal Retainer

EXPLORER

$27.75 $20.31
29 8T4Z-6312-A 8T4Z-6312-A / Crankshaft Pulley

Pulley

EXPLORER

$81.67 $59.78
30 XW4Z-6700-AA XW4Z-6700-AA / Seal

Front Crank Seal

EXPLORER

$14.80 $10.83
31 AT4Z-6675-D AT4Z-6675-D / Oil Pan

EXPLORER

$141.25 $103.40
32 GL3Z-6C639-A GL3Z-6C639-A / Oil Pump

EXPLORER

$56.24 $37.73
33 DG1Z-6622-A DG1Z-6622-A / Oil Pick-Up

EXPLORER

$24.42 $17.87
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
