Front Suspension/Suspension Components for 2011 Ford Expedition

Select Suspension Components Part

2011 Ford Expedition

Change vehicle

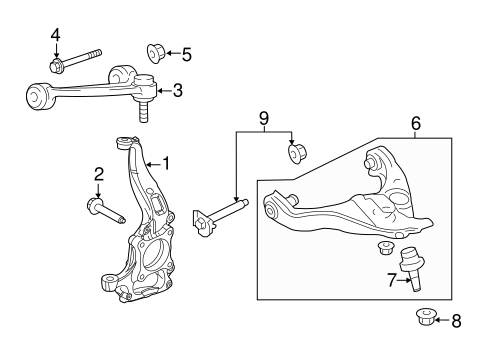

No. Part # Part # / Description List Price Price
1 AL3Z-3K186-C AL3Z-3K186-C / Knuckle

Knuckle, LEFT

4WD

$201.98 $135.53
1 AL3Z-3K185-C AL3Z-3K185-C / Knuckle

Knuckle, RIGHT

4WD

$145.73 $97.78
2 -W706890-S439 -W706890-S439 / Knuckle Bolt

Knuckle Bolt, LEFT

4WD

$2.59 $1.59
2 -W706890-S439 -W706890-S439 / Knuckle Bolt

Knuckle Bolt, RIGHT

4WD

$2.59 $1.59
3 EL3Z-3085-B EL3Z-3085-B / Upper Control Arm

Upper Control Arm, LEFT

4WD

$169.65 $113.84
3 EL3Z-3084-B EL3Z-3084-B / Upper Control Arm

Upper Control Arm, RIGHT

4WD

$169.65 $113.84
4 -W707841-S439 -W707841-S439 / Upper Control Arm Bolt

Upper Control Arm Bolt, RIGHT

4WD

$10.05 $6.14
4 -W707841-S439 -W707841-S439 / Upper Control Arm Bolt

Upper Control Arm Bolt, LEFT

4WD

$10.05 $6.14
5 -W520215-S441 -W520215-S441 / Outer Tie Rod Nut

Upper Control Arm Nut, RIGHT

4WD

$4.19 $2.55
5 -W520215-S441 -W520215-S441 / Outer Tie Rod Nut

Upper Control Arm Nut, LEFT

4WD

$4.19 $2.55
6 9L3Z-3079-A 9L3Z-3079-A / Lower Control Arm

Lower Control Arm, LEFT

4WD

$335.80 $225.32
6 9L3Z-3078-A 9L3Z-3078-A / Lower Control Arm

Lower Control Arm, RIGHT

4WD

$335.80 $225.32
7 9L3Z-3050-A 9L3Z-3050-A / Lower Ball Joint

Lower Ball Joint, LEFT

4WD

$92.55 $62.10
7 9L3Z-3050-A 9L3Z-3050-A / Lower Ball Joint

Lower Ball Joint, RIGHT

4WD

$92.55 $62.10
8 -W707254-S441 -W707254-S441 / Ball Joint Nut

Lower Ball Joint Nut, RIGHT

4WD

$5.18 $3.16
8 -W707254-S441 -W707254-S441 / Ball Joint Nut

Lower Ball Joint Nut, LEFT

4WD

$5.18 $3.16
9 7L1Z-3B236-AB 7L1Z-3B236-AB / Adjust Cam

Adjust Cam, RIGHT

4WD

$116.72 $85.44
9 7L1Z-3B236-AB 7L1Z-3B236-AB / Adjust Cam

Adjust Cam, LEFT

4WD

$116.72 $85.44
Front Suspension/Suspension Components for 2011 Ford Expedition #2
No. Part # Part # / Description List Price Price
1 AL3Z-3K185-C AL3Z-3K185-C / Knuckle

EXPEDITION; RIGHT

$145.73 $97.78
1 AL3Z-3K186-C AL3Z-3K186-C / Knuckle

EXPEDITION; LEFT

$201.98 $135.53
2 CL3Z-1104-J CL3Z-1104-J / Hub & Bearing

Front Hub & Bearing

EXPEDITION, NAVIGATOR; RWD

$249.36 $167.32
2 CL3Z-1104-M CL3Z-1104-M / Hub Assembly - Wheel

Front Hub & Bearing

EXPEDITION, NAVIGATOR; 4WD

$359.36 $241.13
3 AL1Z-18124-B AL1Z-18124-B / Shock Absorber

EXPEDITION; 4WD; W/ O LOAD LEVELING SUSP; W/ O STABILITY CONTROL; ALL

$117.51 $78.85
3 AL1Z-18124-C AL1Z-18124-C / Shock Absorber

EXPEDITION; RWD; W/ O LOAD LEVELING SUSP; W/ O STABILITY CONTROL; EXTENDED WHEELBASE

$113.55 $76.19
4 9L1Z-5310-M 9L1Z-5310-M / Coil Spring

EXPEDITION, NAVIGATOR; 4WD; W/ O LOAD LEVELING SUSP; W/ STABILITY CONTROL; EXTENDED WHEELBASE

$164.32 $120.28
4 9L1Z-5310-Q 9L1Z-5310-Q / Coil Spring

EXPEDITION, NAVIGATOR; 4WD; W/ O LOAD LEVELING SUSP; W/ STABILITY CONTROL; STANDARD WHEELBASE

$164.32 $120.28
4 9L1Z-5310-L 9L1Z-5310-L / Coil Spring

EXPEDITION, NAVIGATOR; RWD; ALL; EXTENDED WHEELBASE

$164.32 $120.28
4 9L1Z-5310-P 9L1Z-5310-P / Coil Spring

EXPEDITION, NAVIGATOR; RWD; ALL; STANDARD WHEELBASE

$154.72 $113.25
5 7L1Z-18A099-E 7L1Z-18A099-E / Upper Mount

Shock Mount

EXPEDITION, NAVIGATOR; FROM 3/ 30/ 09

$51.60 $37.77
6 7L1Z-3B236-AB 7L1Z-3B236-AB / Adjust Cam

EXPEDITION, NAVIGATOR

$116.72 $85.44
7 EL3Z-3084-B EL3Z-3084-B / Upper Control Arm

EXPEDITION, NAVIGATOR; RIGHT

$169.65 $113.84
7 EL3Z-3085-B EL3Z-3085-B / Upper Control Arm

EXPEDITION, NAVIGATOR; LEFT

$169.65 $113.84
8 9L3Z-3050-A 9L3Z-3050-A / Lower Ball Joint

EXPEDITION, NAVIGATOR

$92.55 $62.10
9 9L3Z-3078-A 9L3Z-3078-A / Lower Control Arm

EXPEDITION, NAVIGATOR; RIGHT

$335.80 $225.32
9 9L3Z-3079-A 9L3Z-3079-A / Lower Control Arm

EXPEDITION, NAVIGATOR; LEFT

$335.80 $225.32
10 8L1Z-5482-A 8L1Z-5482-A / Stabilizer Bar

EXPEDITION, NAVIGATOR

$152.82 $111.86
11 7L1Z-5484-C 7L1Z-5484-C / Stabilizer Bar Bushing

Bushings

EXPEDITION, NAVIGATOR

$6.57 $4.81
12 7L1Z-5486-A 7L1Z-5486-A / Bracket

EXPEDITION, NAVIGATOR

$12.47 $9.13
13 7L1Z-5K483-B 7L1Z-5K483-B / Stabilizer Link

Link

EXPEDITION, NAVIGATOR

$74.51 $50.00
