Cooling System/Water Pump for 2009 Ford F-350 Super Duty

Select Water Pump Part

2009 Ford F-350 Super Duty

Change vehicle

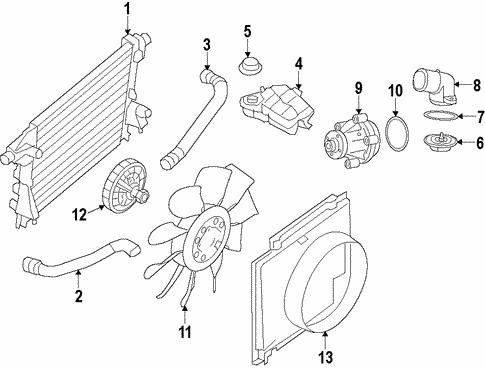

Cooling System/Water Pump for 2009 Ford F-350 Super Duty #1
No. Part # Part # / Description List Price Price
1 7C3Z-8005-G 7C3Z-8005-G / Radiator Assembly

Radiator

F350 SUPER DUTY

$909.85 $666.01
2 8C3Z-8260-A 8C3Z-8260-A / Upper Hose

F350 SUPER DUTY; 5.4L

$62.76 $42.11
3 8C3Z-8286-A 8C3Z-8286-A / Lower Hose

F350 SUPER DUTY

$75.60 $50.73
4 AC3Z-8A080-A AC3Z-8A080-A / Reservoir

F350 SUPER DUTY; TO 10/ 7/ 08

$221.55 $162.17
4 9C3Z8A080E 9C3Z8A080E / Reservoir

F350 SUPER DUTY; FROM 10/ 7/ 08

- -
5 9C3Z-8101-B 9C3Z-8101-B / Cap

Reservoir Cap

F350 SUPER DUTY

$11.11 $7.45
6 7L3Z-8575-D 7L3Z-8575-D / Thermostat

F350 SUPER DUTY; 5.4L

$18.05 $12.11
7 F1VY-8255-A F1VY-8255-A / Thermostat Housing Gasket

Gasket

F350 SUPER DUTY

$8.82 $5.92
8 3L3Z-8592-CA 3L3Z-8592-CA / Thermostat Housing

Water Outlet

F350 SUPER DUTY

$13.11 $8.80
9 3L3Z-8501-CA 3L3Z-8501-CA / Water Pump

F350 SUPER DUTY; 5.4L

$64.00 $42.94
10 F1VY-8507-A F1VY-8507-A / Gasket

F350 SUPER DUTY

$5.76 $3.87
11 7C3Z-8600-B 7C3Z-8600-B / Fan Blade

F350 SUPER DUTY; 5.4L

$85.47 $57.35
12 7C3Z-8A616-A 7C3Z-8A616-A / Fan Clutch

F350 SUPER DUTY; 5.4L; W/ AC

$155.95 $104.64
12 7C3Z-8A616-C 7C3Z-8A616-C / Fan Clutch

F350 SUPER DUTY; 5.4L; W/ O AC

$159.44 $106.98
13 7C3Z-8146-G 7C3Z-8146-G / Fan Shroud

F350 SUPER DUTY; 5.4L; UPPER

$370.33 $271.08
13 7C3Z-8146-A 7C3Z-8146-A / Fan Shroud

F350 SUPER DUTY; 5.4L; LOWER

$119.67 $87.60

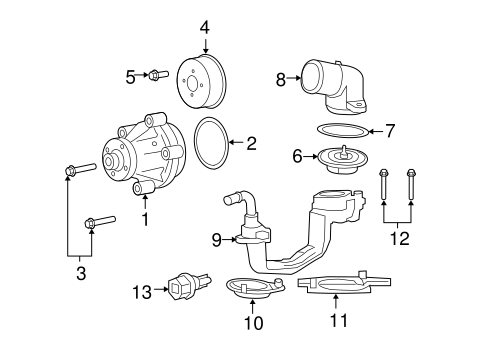

No. Part # Part # / Description List Price Price
1 3L3Z-8501-CA 3L3Z-8501-CA / Water Pump

Water Pump Assembly

5.4 LITER

$64.00 $42.94
3 -N808794-S -N808794-S / Water Pump Bolt

Gasket Bolt

5.4 LITER

$5.00 $3.05
4 AC3Z-8509-BA AC3Z-8509-BA / Pulley

5.4 LITER

$15.42 $11.29
5 -N806282-S437 -N806282-S437 / Pulley Mount Bolt

Pulley Bolt

5.4 LITER

$2.50 $1.53
6 7L3Z-8575-D 7L3Z-8575-D / Thermostat

5.4 LITER

$18.05 $12.11
7 F1VY-8255-A F1VY-8255-A / Thermostat Housing Gasket

Thermostat Gasket

5.4 LITER

$8.82 $5.92
8 3L3Z-8592-CA 3L3Z-8592-CA / Thermostat Housing

Water Outlet

5.4 LITER

$13.11 $8.80
9 3L3Z-8C368-E 3L3Z-8C368-E / Housing Assembly

Housing

5.4 LITER

$220.78 $161.61
10 3L3Z-8C387-AC 3L3Z-8C387-AC / Housing Seal

Housing Seal, RIGHT

5.4 LITER

$12.73 $8.54
11 3L3Z-8C388-AC 3L3Z-8C388-AC / Housing Seal

Housing Seal, LEFT

5.4 LITER

$13.64 $9.15
12 -W503282-S437 -W503282-S437 / Ignition Coil Screw

Housing Bolt

5.4 LITER

$6.50 $3.97
13 4L3Z-12A648-AB 4L3Z-12A648-AB / Temp Sensor

Coolant Temp Sensor

F350 SUPER DUTY; 5.4L

$66.11 $44.36
13 4L3Z-12A648-AB 4L3Z-12A648-AB / Temp Sensor

5.4 LITER

$66.11 $44.36
