HVAC/Condenser, Compressor & Lines for 2009 Ford E-350 Super Duty

Select Condenser, Compressor & Lines Part

2009 Ford E-350 Super Duty

Change vehicle

No. Part # Part # / Description List Price Price
1 AC2Z-19B555-A AC2Z-19B555-A / Evaporator Assembly

FRONT

$690.63 $505.54
2 4C2Z-19B736-AA 4C2Z-19B736-AA / Evaporator Assembly Side Cover

FRONT

$69.93 $51.19
3 6C2Z-19860-C 6C2Z-19860-C / Evaporator Core

E150-350 VANS

$265.24 $177.97
4 9C2Z-18471-A 9C2Z-18471-A / Plenum

FRONT

$199.50 $146.03
5 XC2Z-18478-BA XC2Z-18478-BA / Heater Case

FRONT

$337.92 $247.36
6 F7UZ-19A775-AA F7UZ-19A775-AA / Heater Case Seal

FRONT

$51.15 $37.44
7 F7UZ-19A618-AA F7UZ-19A618-AA / Duct

FRONT

$52.33 $38.31
8 YC2Z-19A566-AA YC2Z-19A566-AA / Vacuum Reservoir

FRONT

$41.52 $30.39
9 D7OZ-19A563-A D7OZ-19A563-A / Vacuum Valve

FRONT

$8.09 $5.43
10 9C2Z-19C827-A 9C2Z-19C827-A / Vacuum Hose

FRONT

$42.38 $31.02
11 F7UZ-19C828-BA F7UZ-19C828-BA / Hose

FRONT

$50.11 $33.62
12 F7UZ-19A813-AA F7UZ-19A813-AA / Door

FRONT

$27.22 $19.92
13 F7UZ-18B299-AB F7UZ-18B299-AB / Lower Cover

FRONT

$24.65 $18.04
14 4C2Z-19A706-AA 4C2Z-19A706-AA / Blower Motor Resistor

Resistor

E150-350 VANS

$38.24 $25.66
15 F2UZ-18A318-B F2UZ-18A318-B / Vacuum Motor

Motor

FRONT, PANEL AIRFLOW

$39.04 $26.19
16 9C2Z-18A318-A 9C2Z-18A318-A / Motor

FRONT, FLOOR/ DEFROST

$55.80 $37.44
17 6C3Z-18A318-AA 6C3Z-18A318-AA / Door Actuator

Motor

FRONT, AIR INLET

$39.04 $26.19
18 XC2Z-19E616-AA XC2Z-19E616-AA / Motor Assembly

Adjust Motor

FRONT

$71.85 $48.21
19 F5TZ-19A786-A F5TZ-19A786-A / Tube

Vent Tube

FRONT

$15.17 $11.10
20 4C2Z-18476-AA 4C2Z-18476-AA / Heater Core

FRONT

$153.05 $102.70
21 XC2Z-19805-BA XC2Z-19805-BA / Blower Motor

E150-350 VANS

$110.29 $74.01
22 F5TZ-18N260-A F5TZ-18N260-A / Blower Motor Seal

FRONT

$17.62 $12.90
23 AC2Z-19834-A AC2Z-19834-A / Wheel

FRONT

$25.55 $17.14
24 FOZZ-18A287-A FOZZ-18A287-A / Wheel Clip

FRONT

$8.20 $6.00
25 9C2Z-18C581-A 9C2Z-18C581-A / Vacuum Harness

FRONT

$35.72 $26.14

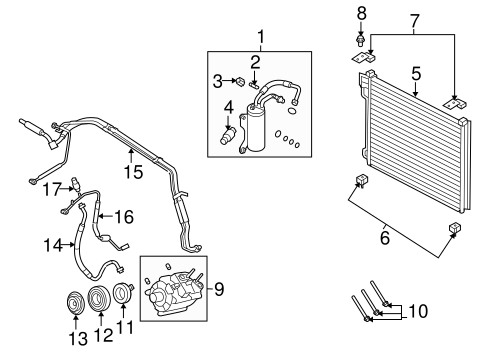

No. Part # Part # / Description List Price Price
1 GC2Z-19C836-C GC2Z-19C836-C / Accumulator Assembly - Air Conditio

Accumulator

GAS ENGINES, W/ O AUX. AIR

$236.22 $158.50
1 GC2Z-19C836-D GC2Z-19C836-D / Accumulator Assembly - Air Conditio

Accumulator

GAS ENGINES, W/ AUX. AIR

$86.67 $58.16
1 GC2Z-19C836-D GC2Z-19C836-D / Accumulator Assembly - Air Conditio

Drier

E150-350 VANS

$86.67 $58.16
2 E3EZ-19D701-AA E3EZ-19D701-AA / Accumulator Valve

GAS ENGINES

$7.40 $4.97
3 F3AZ-19D702-B F3AZ-19D702-B / Accumulator Cap

GAS ENGINES

$19.29 $12.94
4 F6RZ-19E561-AA F6RZ-19E561-AA / Pressure Cycling Switch

Vacuum Switch

GAS ENGINES

$29.66 $18.09
4 F6RZ-19E561-AA F6RZ-19E561-AA / Pressure Cycling Switch

E150-350 VANS

$29.66 $18.09
5 9C2Z-19712-A 9C2Z-19712-A / Condenser

GAS ENGINES

$283.76 $190.41
6 7C2Z-19702-B 7C2Z-19702-B / Condenser Lower Insulator

Condenser Lower Insulator, RIGHT

GAS ENGINES

$19.18 $14.04
6 7C2Z-19702-B 7C2Z-19702-B / Condenser Lower Insulator

Condenser Lower Insulator, LEFT

GAS ENGINES

$19.18 $14.04
7 7C2Z-19702-A 7C2Z-19702-A / Upper Bracket

Upper Bracket, LEFT

GAS ENGINES

$21.07 $15.42
7 7C2Z-19702-A 7C2Z-19702-A / Upper Bracket

Upper Bracket, RIGHT

GAS ENGINES

$21.07 $15.42
8 -N606687-S309 -N606687-S309 / Upper Bracket Bolt

Upper Bracket Bolt, RIGHT

GAS ENGINES

$4.94 $3.01
8 -N606687-S309 -N606687-S309 / Upper Bracket Bolt

Upper Bracket Bolt, LEFT

GAS ENGINES

$4.94 $3.01
9 CC2Z-19703-D CC2Z-19703-D / Compressor

GAS ENGINES

$480.44 $322.37
10 -W710159-S437 -W710159-S437 / Compressor Bolt

GAS ENGINES

$5.84 $3.56
11 8C2Z-19D798-A 8C2Z-19D798-A / Clutch Coil

Disc

GAS ENGINES, TO 2/ 27/ 12

$66.73 $44.77
11 8C2Z-19D798-A 8C2Z-19D798-A / Clutch Coil

E150-350 VANS; 6.8L; FROM 12/ 13/ 07

$66.73 $44.77
12 8C2Z-19D784-B 8C2Z-19D784-B / Pulley

GAS ENGINES, TO 2/ 27/ 12

$91.16 $61.17
13 8L2Z-19D786-B 8L2Z-19D786-B / Clutch Plate & Hub Assembly

Clutch

GAS ENGINES

$75.05 $50.36
14 CC2Z-19835-A CC2Z-19835-A / Suction Hose

AC Line

GAS ENGINES, ACCUMULATOR TO COMPRESSOR, ACCUMULATOR TO COMPRESSOR

$59.67 $40.04
14 CC2Z-19835-A CC2Z-19835-A / Suction Hose

E150-350 VANS; 6.8L

$59.67 $40.04
15 CC2Z-19E558-B CC2Z-19E558-B / Liquid Hose

AC Line

GAS ENGINES, EVAPORATOR TO CONDENSER, EVAPORATOR TO CONDENSER

$247.45 $166.04
15 CC2Z-19E558-B CC2Z-19E558-B / Liquid Hose

E150-350 VANS; 6.8L; W/ REAR HEATER/ AC

$247.45 $166.04
16 CC2Z-19972-A CC2Z-19972-A / Discharge Line

AC Line

GAS ENGINES, COMPRESSOR TO CONDENSER, COMPRESSOR TO CONDENSER

$159.67 $107.14
16 CC2Z-19972-A CC2Z-19972-A / Discharge Line

E150-350 VANS; 6.8L

$159.67 $107.14
17 6L3Z-19D594-A 6L3Z-19D594-A / High Pressure Cut-Off Switch

Switch

GAS ENGINES

$57.47 $38.56
No. Part # Part # / Description List Price Price
N/A XC4Z-19D990-AA XC4Z-19D990-AA / Orifice

E150-350 VANS

$7.51 $5.04
N/A F65Z-19D644-AA F65Z-19D644-AA / Pressure Relief Valve

E150-350 VANS; 6.8L

$11.76 $7.89
No. Part # Part # / Description List Price Price
N/A 8C2Z-19D786-B 8C2Z-19D786-B / Clutch

E150-350 VANS; 6.8L; FROM 11/ 5/ 07

$65.25 $43.79
N/A CC2Z-19835-B CC2Z-19835-B / Liquid Hose

E150-350 VANS; 6.8L; W/ O REAR HEATER/ AC

$39.44 $26.46
