HVAC/Condenser, Compressor & Lines for 2001 Ford Ranger

Select Condenser, Compressor & Lines Part

2001 Ford Ranger

Change vehicle

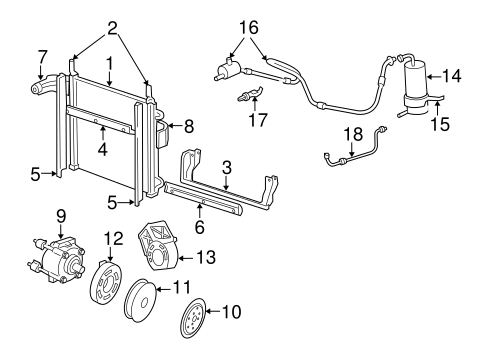

No. Part # Part # / Description List Price Price
1 6L5Z-19712-AC 6L5Z-19712-AC / Condenser

1998-03

$237.85 $159.60
2 F87Z-19B594-AA F87Z-19B594-AA / Condenser Mount Bracket

Condenser Mount Bracket, RIGHT

1998-03, UPPER

$10.68 $7.82
2 F87Z-19B594-AA F87Z-19B594-AA / Condenser Mount Bracket

Condenser Mount Bracket, LEFT

1998-03, UPPER

$10.68 $7.82
3 F77Z-19B594-CB F77Z-19B594-CB / Condenser Mount Bracket

1998-03, LOWER

$57.45 $42.05
4 F5TZ-19E572-A F5TZ-19E572-A / Condenser Seal

Condenser Upper Seal

1998-03

$27.97 $20.47
5 F87Z-19E572-AB F87Z-19E572-AB / Condenser Side Seal

Condenser Side Seal, RIGHT

1998-03

$18.28 $13.38
5 F87Z-19E572-BA F87Z-19E572-BA / Condenser Side Seal

Condenser Side Seal, LEFT

1998-03

$22.80 $16.69
6 F87Z-19E572-AA F87Z-19E572-AA / Condenser Lower Seal

1998-03, 2.3 LITER

$22.67 $16.59
7 F5TZ19D720A F5TZ19D720A / Support Bracket

1998-03, LIQUID LINE, INLET

- -
8 F57Z19D721A F57Z19D721A / Support Bracket

1998-03, LIQUID LINE, OUTLET

- -
9 4R3Z-19703-A 4R3Z-19703-A / Compressor Assembly

Compressor

1998-03, 2.3 LITER

$360.82 $242.11
10 6S4Z-19D786-AA 6S4Z-19D786-AA / Clutch Plate & Hub Assembly

Clutch

1998-03, 2.3 LITER

$82.38 $55.28
11 F2OY-19D784-A F2OY-19D784-A / Pulley

1998-03, 2.3 LITER

$144.45 $96.93
12 F1OY-19D798-A F1OY-19D798-A / Clutch Coil

Coil

1998-03, 2.3 LITER

$80.91 $54.29
12 F1OY-19D798-A F1OY-19D798-A / Clutch Coil

RANGER; 2.3L

$80.91 $54.29
13 1L5Z-19E708-AA 1L5Z-19E708-AA / Alternator Mount Bracket

Compressor Bracket

1998-03, 2.3 LITER

$213.32 $156.15
14 XL2Z-19C836-AC XL2Z-19C836-AC / Dehydrator

1998-03

$95.27 $63.93
14 XL2Z-19C836-AC XL2Z-19C836-AC / Dehydrator

Drier

RANGER

$95.27 $63.93
15 F87Z-19D607-AA F87Z-19D607-AA / Dehydrator Bracket

1998-03

$35.10 $25.69
16 AL5Z-19D850-A AL5Z-19D850-A / Hose & Tube Assembly

1998-03, 2.3 LITER

$167.44 $112.35
16 AL5Z-19D850-A AL5Z-19D850-A / Hose & Tube Assembly

Discharge Line

RANGER; 2.3L

$167.44 $112.35
17 6L3Z-19D594-A 6L3Z-19D594-A / High Pressure Cut-Off Switch

Pressure Switch

1998-03

$57.47 $38.56
18 6L5Z-19835-AA 6L5Z-19835-AA / Liquid Line

AC Line

1998-03, COND TO EVAPORATOR

$109.65 $73.58
18 6L5Z-19835-AA 6L5Z-19835-AA / Liquid Line

RANGER

$109.65 $73.58
No. Part # Part # / Description List Price Price
N/A F4TZ-19D870-A F4TZ-19D870-A / Support Bracket Clamp

1998-03

- -
